Description

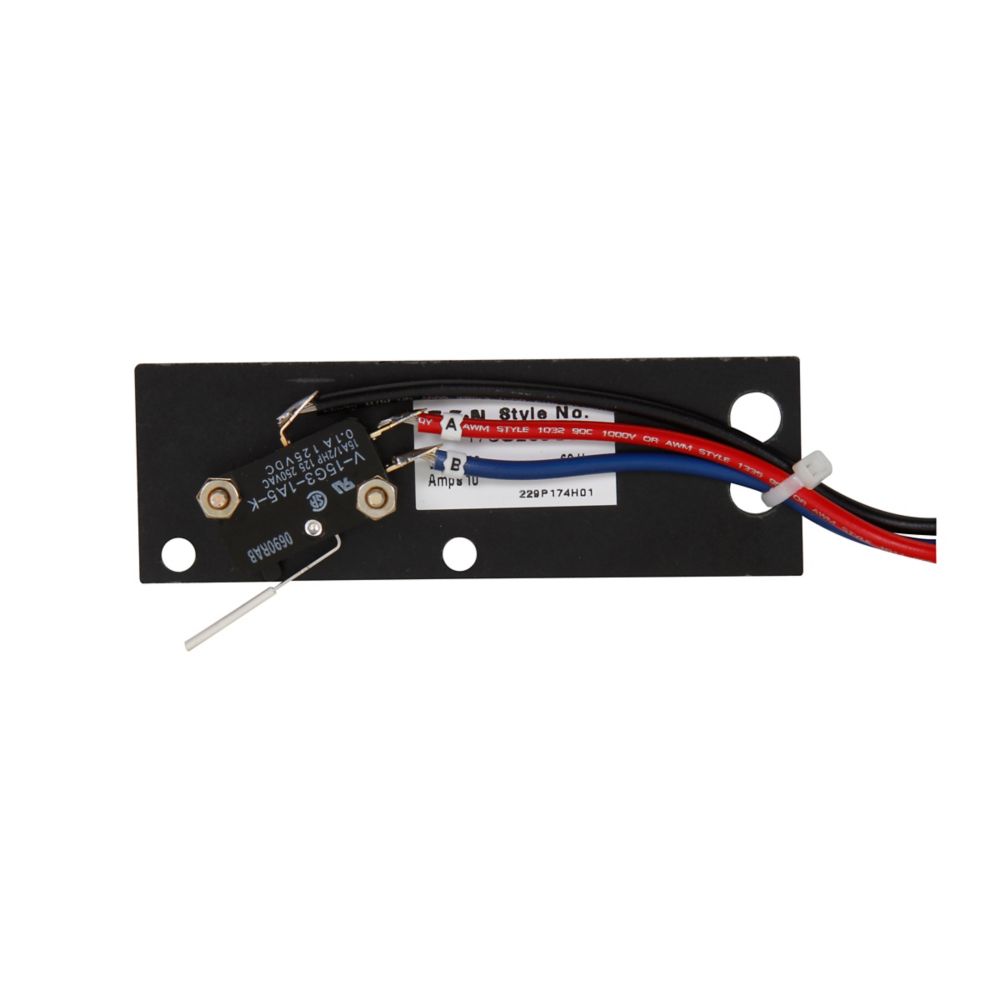

178C265G05 - Eaton Cutler-Hammer - 100A Type DS Auxiliary switch
An auxiliary switch kit for Eaton Type DS disconnect switches (30 A, 60 A, 100 A) featuring one normally open (1A) and one normally closed (1B) contact. Field-mountable accessory for separating control circuits. Compact and practical for retrofit installations.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Type DS disconnect switch auxiliary switch
|
| Catalog Number |
178C265G05
|
| UPC |
786679685051
|
| Product Length/Depth |
5.5 in
|
| Product Height |
3 in
|
| Product Width |
3.2 in
|
| Product Weight |
0.1 lb
|
| Catalog Notes |
Permits field mounting of an auxiliary switch for separate control circuit applications. Each switch includes three soldered, identified leads. Rated 250 volts max.
|
| Global Catalog |
178C265G05
|
| Product Type |
Disconnect switch accessory
|
PRODUCT SPECIFICATIONS
| Special features |
1A-1B contacts
|
| Type |
Auxiliary switch
|
| Product Category |
VISI-FLEX DE-ION
|
| Used with |
30, 60, and 100A Type DS disconnect switches
|
| Flex center modifications |
Special fuse clips
|
| Fuse class provision |
CLASS R FUSES
|
| Fuse clip rating |
30,30 AND 100 A
|
| Fuse configuration |
FUSILE
|
| Switch type |
TYPE DS
|
| Trip type |
1A-1B CONTACTS
|
