Description

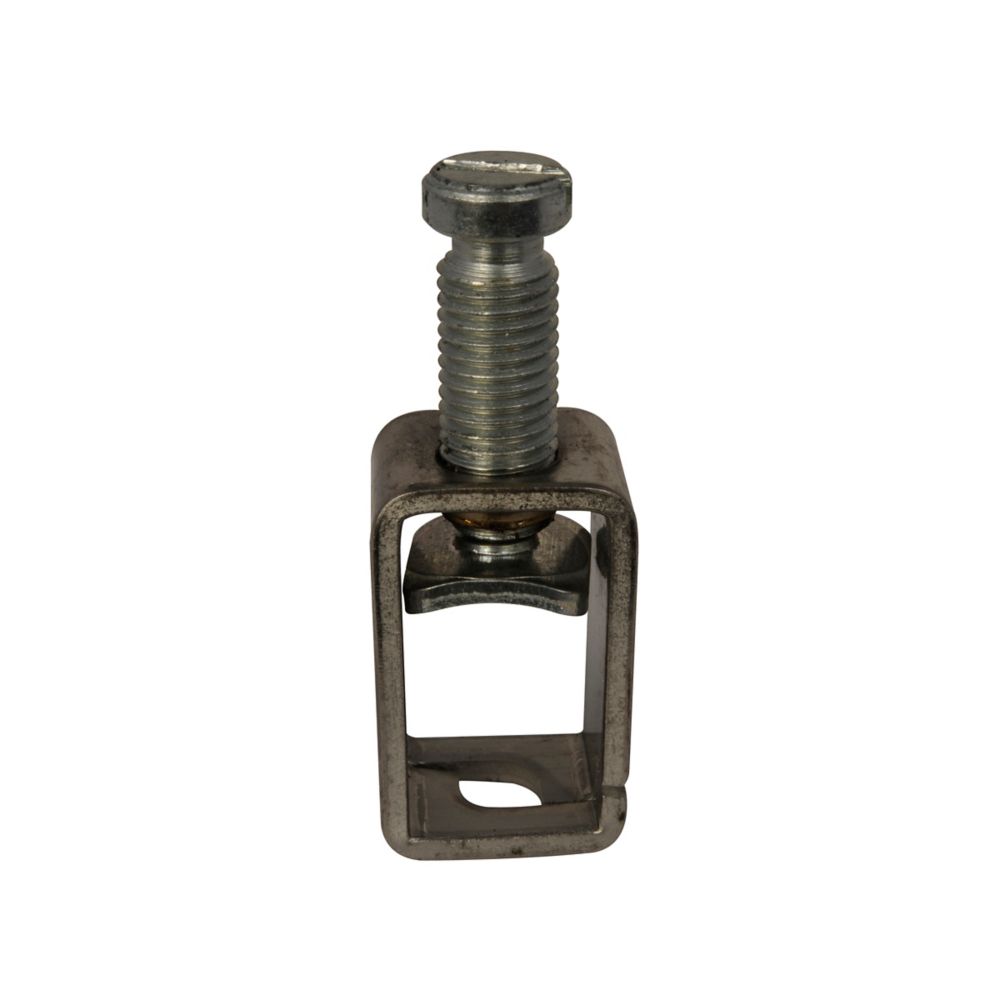

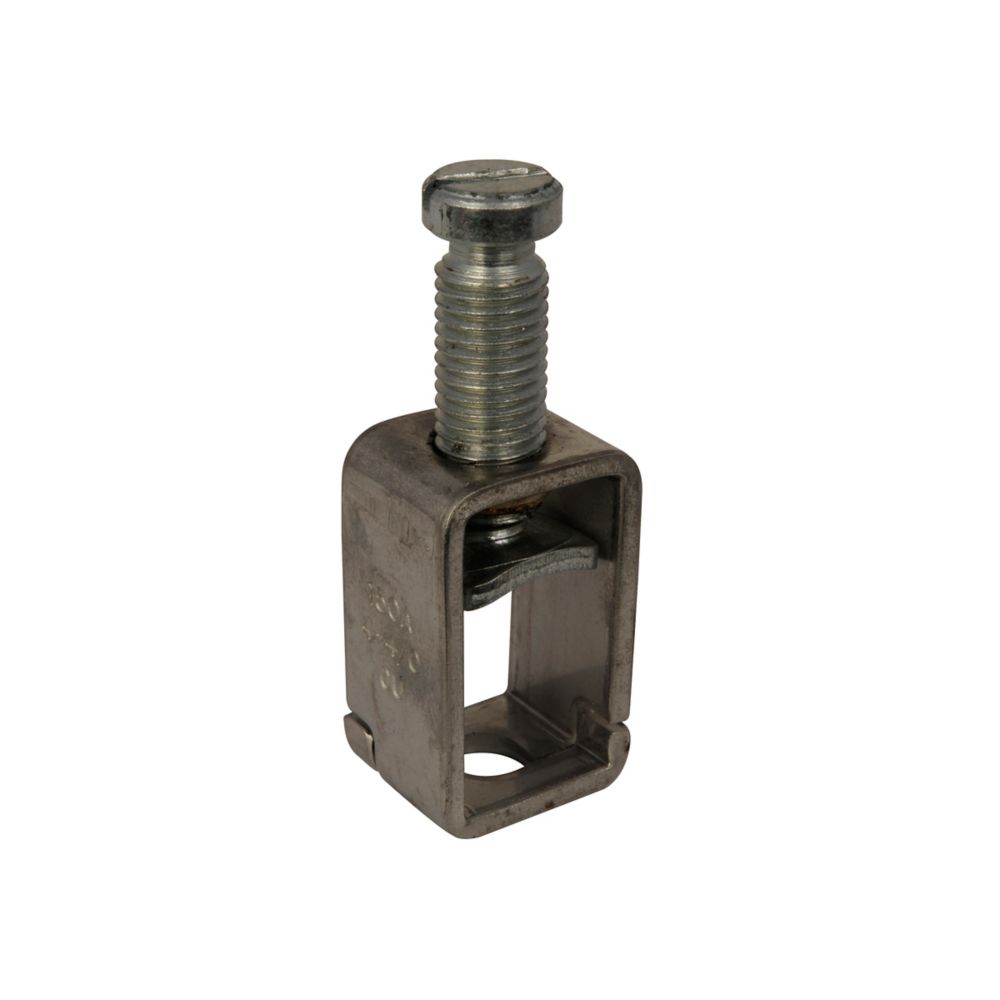

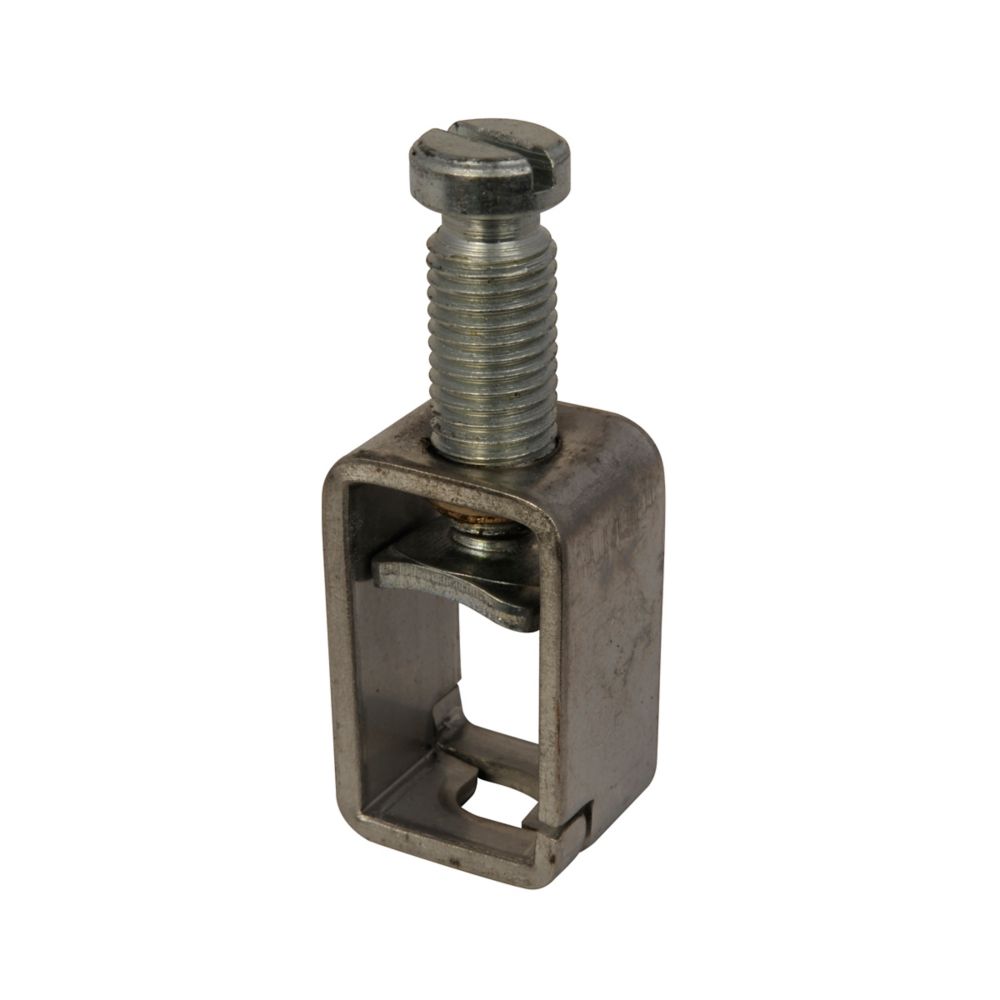

3T150FB - Eaton Cutler Hammer - 200A Molded Case Circuit Breaker Accessory Line and Load Terminal
The Eaton 3T150FB is a line and load terminal lug kit designed for F-Frame molded-case circuit breakers. It supports #4–4/0 AWG copper conductors with a stainless-steel pressure-type connection, ensuring secure and durable installations. Built for reliability, it is ideal for high-current applications up to 150–200 A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory line and load terminal
|
| Catalog Number |
3T150FB
|
| UPC |
786679840504
|
| Product Length/Depth |
2 in
|
| Product Height |
0.6 in
|
| Product Width |
2 in
|
| Product Weight |
0.2 lb
|
| Certifications |
UL Listed
|
| Global Catalog |
3T150FB
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
200 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type
|
| Wire size |
#4-4/0 AWG Cu
|
| Quantity |
18
|
| Type |
Line and load terminals
|
PRODUCT DATASHEET
