Name: 42GRU9203QD - Allen-Bradley - SERIES 9000 PHOTOELECTRIC SENSOR
Brand: Allen-Bradley
SKU: AB42GRU9203QD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

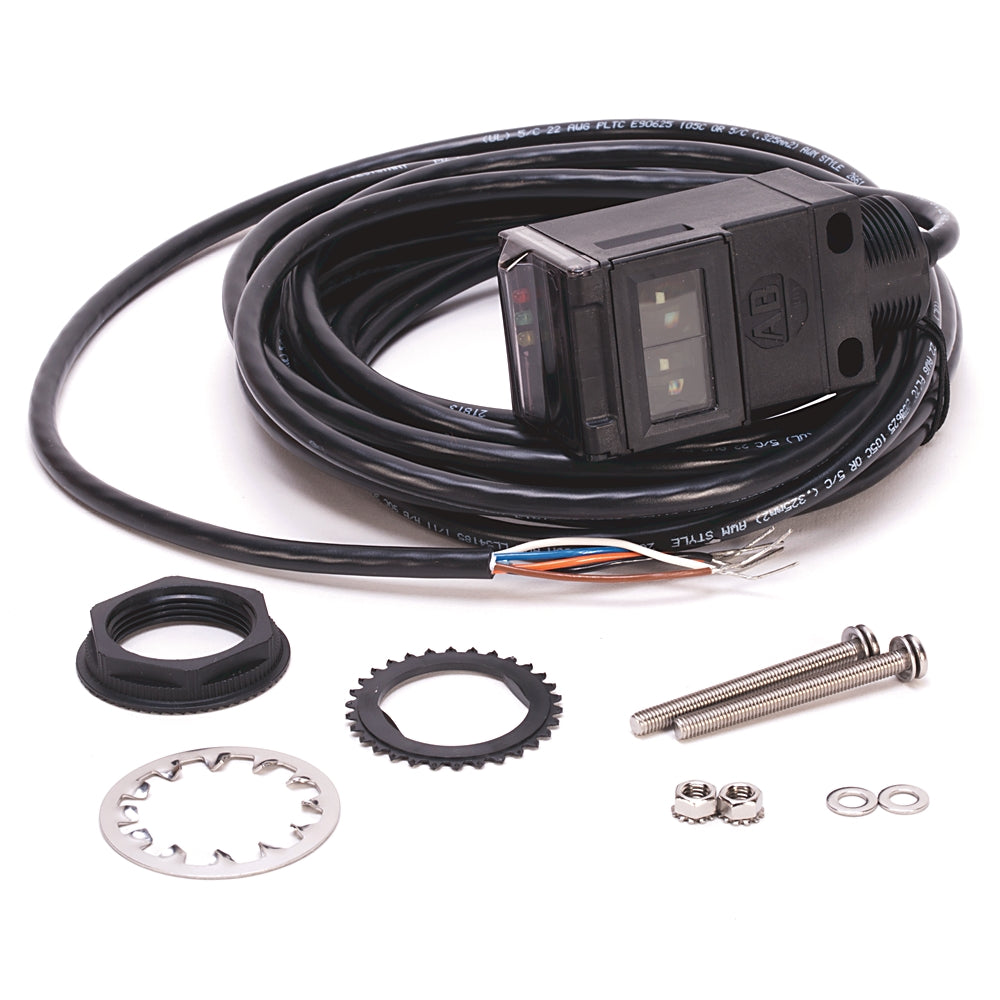

42GRU9203QD - Allen-Bradley - SERIES 9000 PHOTOELECTRIC SENSOR

42GRU-9203-QD – Photoelectric sensor for non-contact object detection, equipped with a quick-disconnect connection.

Degree of protection (NEMA)	13
Degree of protection (IP)	IP67
Width sensor	41.91 mm
Height of sensor	74.93 mm
Length of sensor	40 mm
Max. switching distance	4900 mm
Setting procedure	Manual adjustment
Sensing mode	Light-/dark switching
Field of view	1.5 °
Sensing distance	50 mm
List of degrees of protection (NEMA)	3, 4X, 6P, 12, 13
Sensing mode type	Polarized retroreflective
List of degrees of protection (IP)	IP69K, IP67
Vibration	10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
Shock	30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
Operating environment	IP69K, IP67 with 1200 psi, NEMA 3, 4X, 6P, 12, 13, ECOLAB rated

With time function	False
With reflector	False
Wavelength of the sensor	660 nm
Response time	2 ms
Voltage type	AC/DC
Type of switching output	Other
Type of electric connection	Plug-in connection
Type of light	Infrared light
Current consumption, max	30 mA
Sensor types	Standard ON/OFF
Lens material	Acrylic
Load current	300mA @ 264V AC
Connection type	4 pin DC mini QD
Operating voltage/mode	AC/DC - MOSFET
Protection type	Short circuit, reverse polarity, false pulse, overload
LED status	Yellow ON: power is ON
Suitable for safety functions	False
Pre failure notice	False
