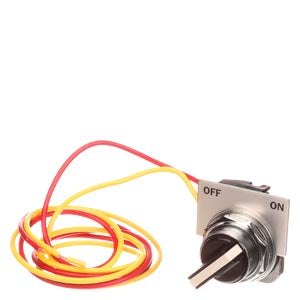

49SAS04 - Siemens - ON OFF Selector Switch
The 49SAS04 is an Off-On selector switch kit for Siemens/Furnas 49S Series motor control starters (NEMA Size 0–6). It supports legend plates rated for 20–400 A and is designed for use in NEMA 1/4/4X/12 enclosures. Lightweight at approximately 0.4 lb and compact (2.2" × 3" × 0.465"), it provides reliable control for motor operations and equipment selection logic.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2: 49SAS04
|
| MFN |
49SAS04
|
| UPC |
783087089488 |
| Commodity Code |
8536509065 |
Pricing related
Delivery related
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Standard delivery time |
23 Day/Days |
| Packaging dimensions (L x W x H) |
0.47 x 0.47 x 0.36 inch
|
| Net weight |
0.397 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
No |
| Compliance with the substance restrictions according to RoHS directive |
not available |
| SCIP Number |
not available |
Siemens specific
| Product Group |
5438 |
| Catalog ID |
CC-IC10 |
| Group Code |
R711 |
| Country of origin |
Mexico |
| Returnable Status |
Yes |
PRODUCT DATASHEET
49SAS04
