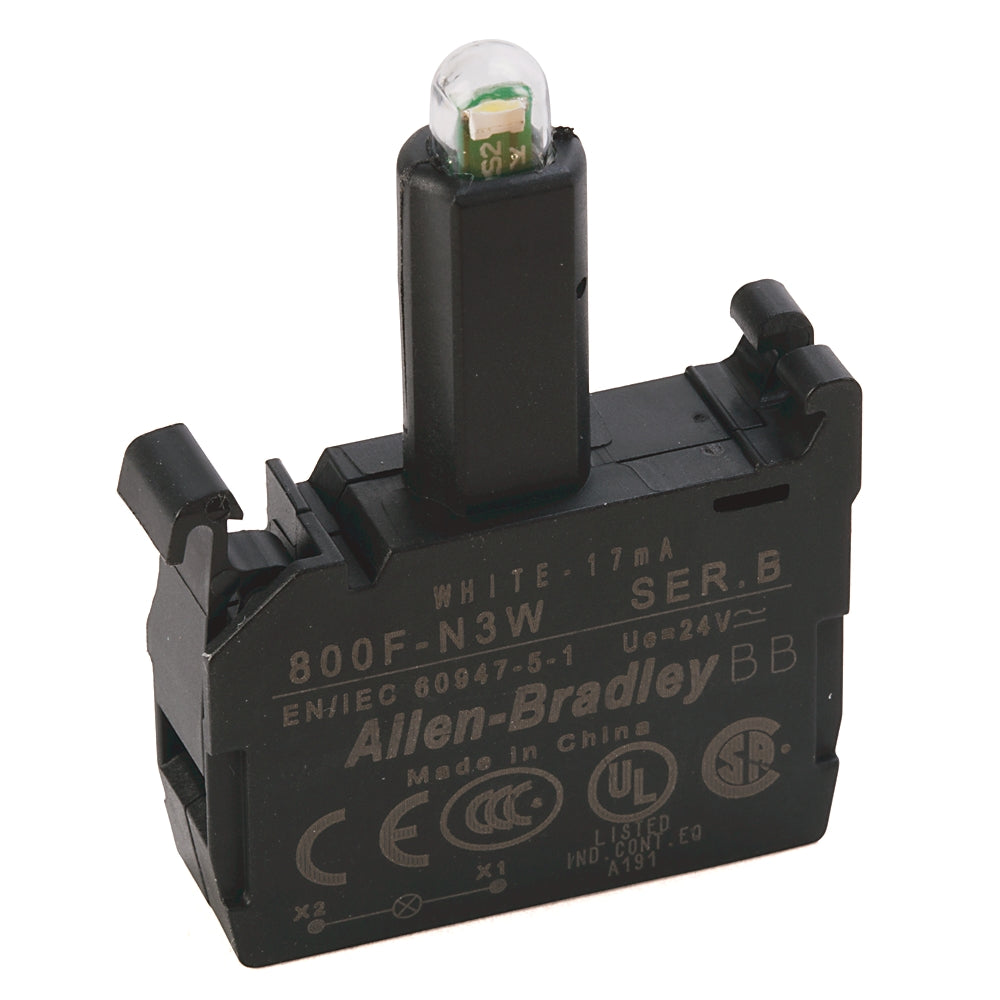

800FN3W - Allen-Bradley - 22mm LED Module 800F PB
Likely similar to 800F‑N3G but with white LED illumination. Accepts 24 V AC/DC input and mounts via latch. Designed for use with 800F push‑button, same rugged environmental specs.
TECHNICAL SPECIFICATIONS
Electrical
| Voltage type for actuating |
AC/DC |
| Lamp type |
LED |
| Illumination lamp type |
White LED |
| Illumination module type |
LED |
| Illumination module input voltage |
24V AC/DC (incandescent or LED) |
Constrction
| Contact block mounting style |
Latch |
Mechanical
| Operator type |
22 mm LED module |
| Illumination module termination wire range |
#18...12 AWG (0.75...2.5 mm²) |
| Vibration |
10 g |
| Shock |
100 g |
| Operator mounting hole dimension |
22.5 mm |
| Latch material |
Plastic / metal |
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
Environmental
| Operating temperature |
-25 °C |
| Storage temperature |
-40 °C |
| Humidity |
≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
800FN3W
