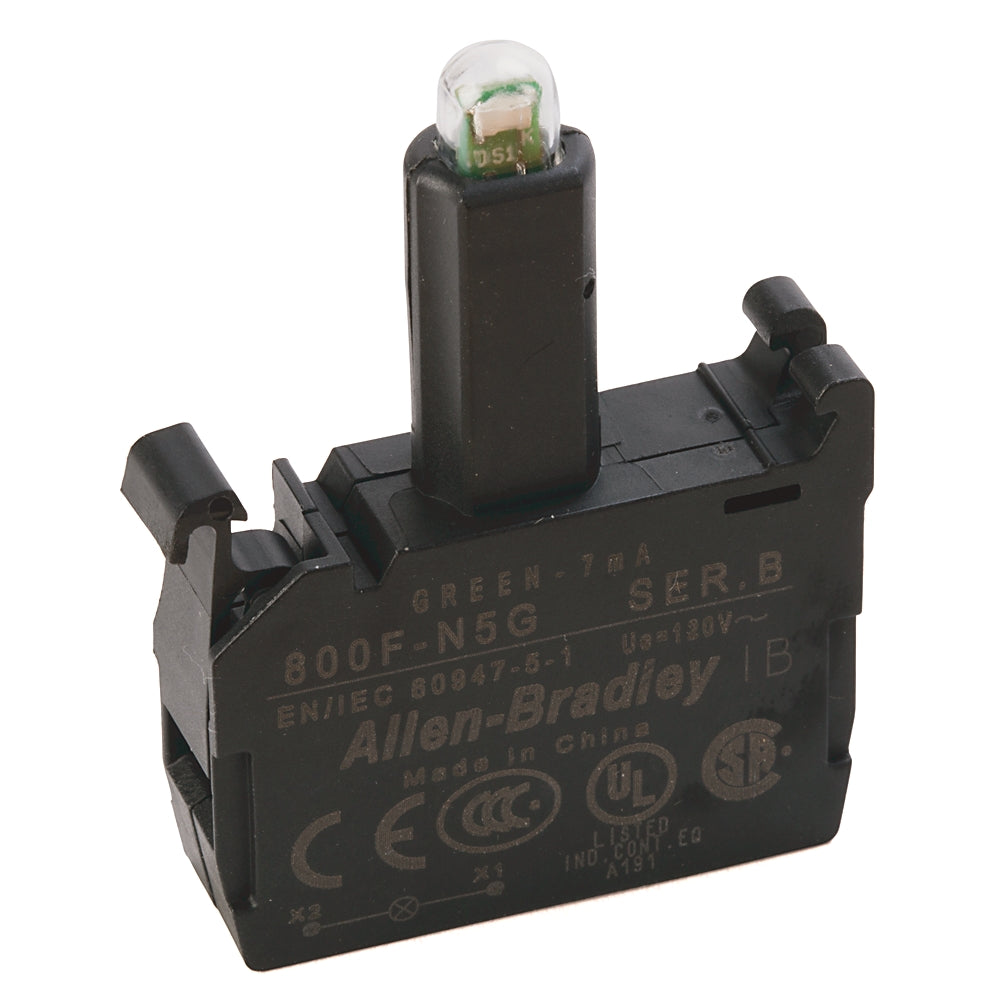

800FN5G - Allen-Bradley - 22mm LED Module 800F PB
Probably a green LED module variant at a different style or voltage spec within the 800F line. Fits 22 mm cutouts and integrates with standard contact blocks. Robust and certified to UL, CE, CSA standards.
TECHNICAL SPECIFICATIONS
General
Electrical
| Voltage type for actuating |
AC/DC |
| Lamp type |
LED |
| Illumination lamp type |
Green LED |
| Illumination module type |
LED |
| Illumination module input voltage |
120V AC/DC (incandescent), 120V AC (LED) |
Constrction
| Contact block mounting style |
Latch |
Mechanical
| Operator type |
22 mm LED module |
| Illumination module termination wire range |
#18...12 AWG (0.75...2.5 mm²) |
| Vibration |
10 g |
| Shock |
100 g |
| Operator mounting hole dimension |
22.5 mm |
| Latch material |
Plastic / metal |
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
Environmental
| Operating temperature |
-25 °C |
| Storage temperature |
-40 °C |
| Humidity |
≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
800FN5G
