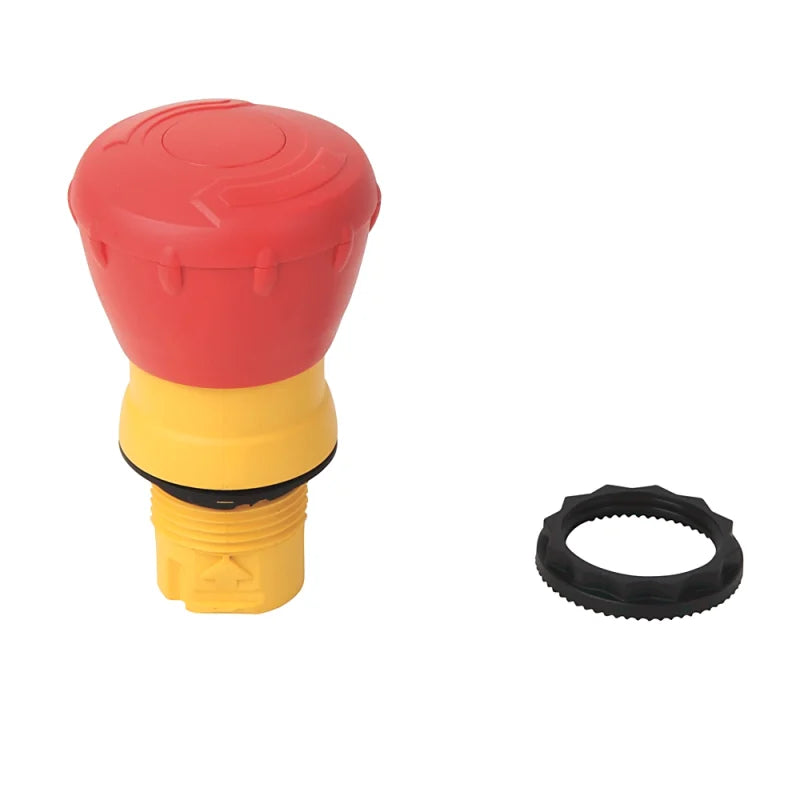

800FPMT44 - Allen-Bradley - 22mm Twist To Release E-Stop 800F PB
Part of the 800FP stainless push‑button station line (MT = metal operator). Likely a metal toggle or maintained toggle operator. Designed for panel/machine front control applications with industrial certifications.
TECHNICAL SPECIFICATIONS
General
| Type |
22mm Twist To Release E-Stop |
Mechanical
| Diameter cap |
40 mm |
| Unlocking method |
Turn-release |
| Operator type |
40 mm twist to release |
| Operator function |
22 mm twist to release E-stop |
| Enclosure compatibility |
IP69K, IP66, Type 4/4X/13 (Round plastic operator) |
| Spring-return |
False |
| Switching function latching |
True |
| Hole diameter |
22.5 mm |
| Vibration |
10 g |
| Shock |
100 g |
| Operator mechanical design life (cycles, min.) |
300000 |
| Operator cap type |
Mushroom head |
| Contact block durability |
10000000 cycles |
Constrction
| Colour button |
Red |
| Operator construction/material |
Plastic |
| Operator cap color |
Red |
| Operator cap/button size |
40 mm twist to release |
| With front ring |
True |
| Type of button |
High |
| Operator cap/button material |
Plastic |
Electrical
| Contact block thermal current rating |
10 A |
Environmental
| Operating temperature |
-25 °C |
| Storage temperature |
-40 °C |
| Humidity |
≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
800FPMT44
