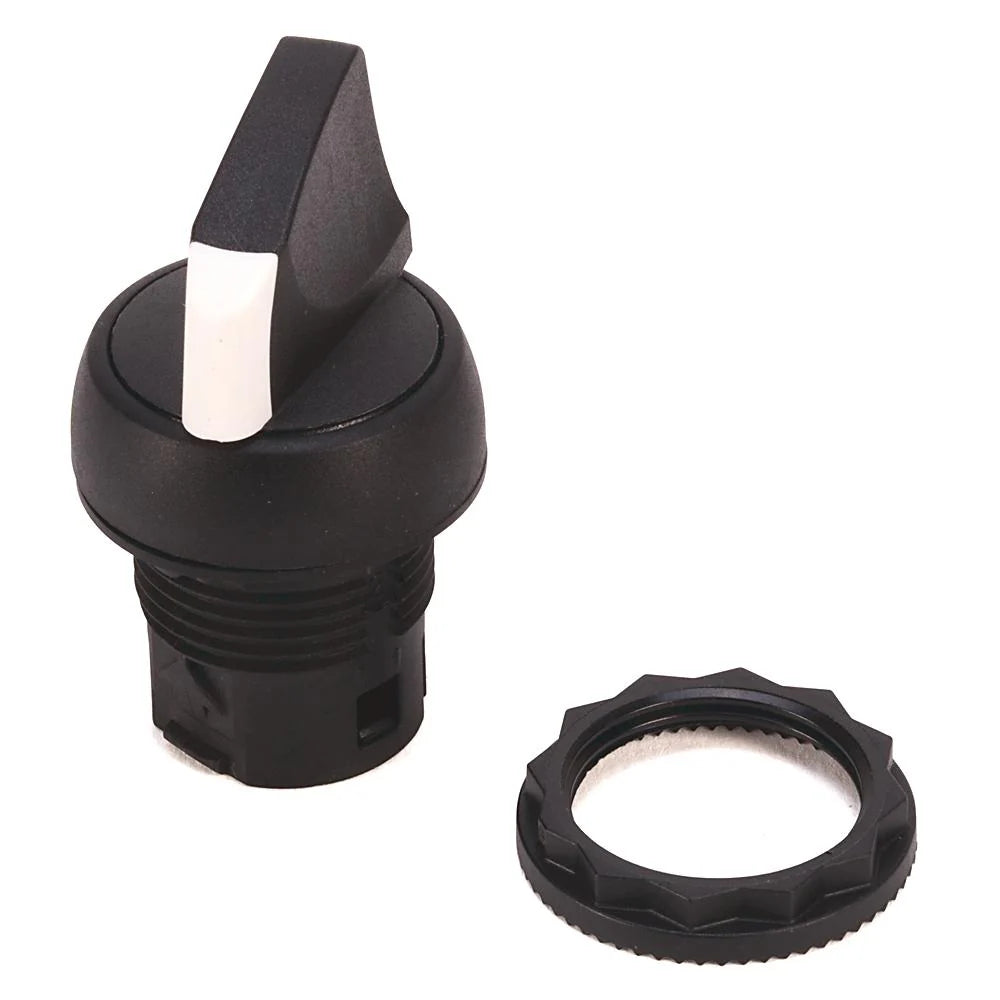

800FPSB32 - Allen-Bradley - 22mm Selector Switch 800F PB
An entry in the 800FP push‑button station series, probably featuring a specific contact block or operator configuration (SB = selector button?). Suited for sealed front applications, rugged and certified.
TECHNICAL SPECIFICATIONS
General
| Type |
22mm Selector Switch |
Constrction
| Number of switch positions |
3 |
| Switching function latching |
False |
| Material front ring |
Plastic |
| Colour control element |
Black |
| Operator cap color |
Black |
| Operator construction/material |
Plastic |
| Operator cap/button material |
Plastic |
| Latch material |
Plastic |
| With front ring |
True |
| Type of control element |
Short thumb-grip |
Electrical
| Suitable for illumination |
False |
Mechanical
| Spring-return |
True |
| Switch orientation |
Standard |
| Packaging |
Standard pack (1 per package) |
| Operator type |
Selector switch - standard knob |
| Operator function |
Spring return from both, 3 position |
| Enclosure compatibility |
IP66, Type 4/4X/13 (round plastic operator) |
| Hole diameter |
22.5 mm |
| Vibration |
10 g |
| Shock |
100 g |
| Operator mechanical design life (cycles, min.) |
1000000 |
Environmental
| Hazardous location rating |
False |
| Operating temperature |
-25 °C |
| Storage temperature |
-40 °C |
| Humidity |
≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
800FPSB32
