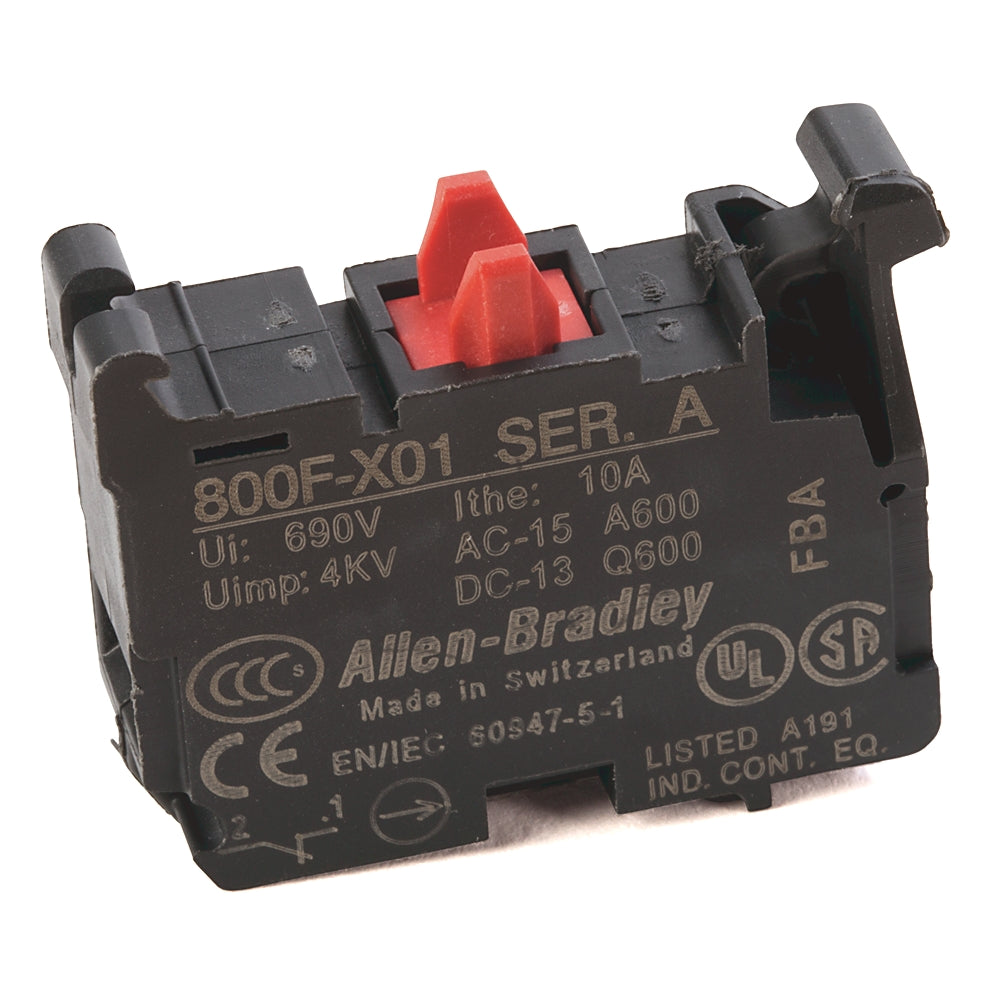

800FX01 - Allen-Bradley - 22mm Contact Block 800F PB
Part of the 800F front control product family; likely a basic push button operator without illumination. Fits 22 mm panel hole, compatible with standard contact blocks. Certified to common industrial standards.
TECHNICAL SPECIFICATIONS
Electrical
| Number of contacts as normally closed contact |
1 |
| Contact block configuration |
1 NC |
| Contact block type |
Standard |
| Contact block utilization category (AC) |
A600, AC 15 - screw termination |
| Contact block utilization category (DC) |
Q600, DC-13 - screw termination |
| Contact block operational voltage, max |
600V (A600, Q600) - screw termination |
| Contact block thermal current rating |
10 A |
Constrction
| Contact block mounting style |
Latch |
| Termination style |
Screw |
| Packaging |
Standard pack (1 per package) |
Mechanical
| Latch material |
Plastic / metal |
| Contact block termination wire range |
#18...12 AWG (0.75...2.5 mm²) |
| Vibration |
10 g |
| Shock |
100 g |
| Operator mounting hole dimension |
22.5 mm |
| Contact block durability |
1.0E7 |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
Environmental
| Operating temperature |
-25 °C |
| Storage temperature |
-40 °C |
| Humidity |
≤95% RH from 25...60 °C (77...140 °F) |
PRODUCT DATASHEET
800FX01
