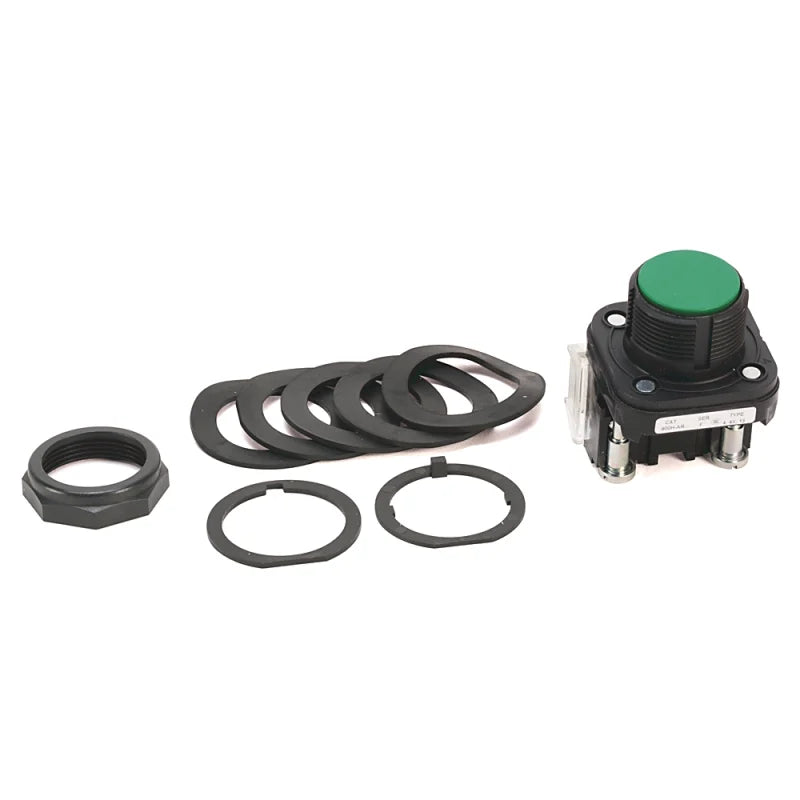

800HAR1 - Allen-Bradley - 30mm Momentary Push Button 800H PB
AR1 is part of 800H push‑pull series; AR1D1 likely includes contact block D1. Maintained push‑pull unit with twist release and modular contact options. Suitable for industrial panel use.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Momentary Push Button |
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap/button material |
Plastic |
| Operator cap type |
Flush head |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Operator mechanical design life (cycles, min.) |
1.0E7 |
| Operator cap color |
Green |
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13 |
| Operator function |
Momentary contact |
| Operator type |
Push button |
| Contact block configuration |
No contacts |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Construction
| Operator construction/material |
Plastic |
PRODUCT DATASHEET
800HAR1
