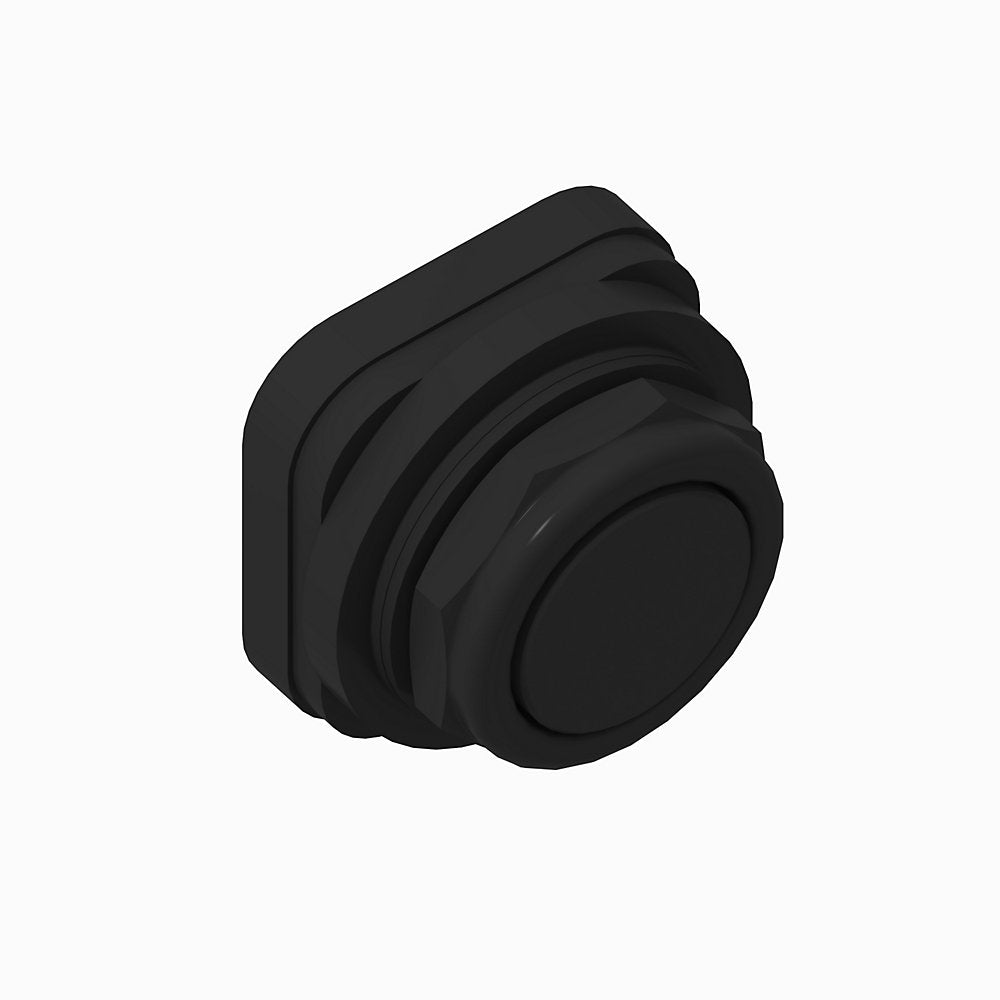

800HAR2 - Allen-Bradley - 30mm Momentary Push Button 800H PB
Similar AR2 style with optional D1 contact. Same push‑pull maintained twist release design. Certified for harsh environments, reusable in modular control stations.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Momentary Push Button |
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap/button material |
Plastic |
| Operator cap type |
Flush head |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Operator mechanical design life (cycles, min.) |
1.0E7 |
| Operator cap color |
Black |
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13 |
| Operator function |
Momentary contact |
| Operator type |
Push button |
| Contact block configuration |
No contacts |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Constrction
| Operator construction/material |
Plastic |
PRODUCT DATASHEET
800HAR2
