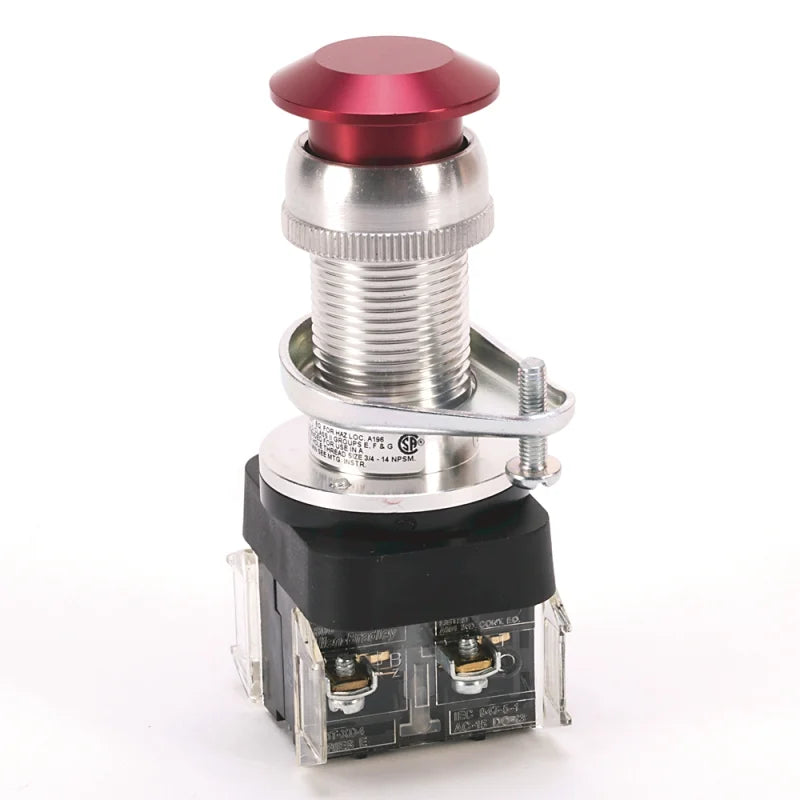

800HFPX6A1 - Allen-Bradley - Type 7&9 Push-Pull Unit 800H PB
FPX series within 800H line—likely a foot‑pedal or specialized actuator variant. FPX6A1 indicates a specific block/actuator attachment. Rugged, certified design for industrial machinery.
TECHNICAL SPECIFICATIONS
General
| Button Color |
Red |
| Head Type & Features |
Mushroom Head |
| Position 2 Contact Block |
No Block This Position |
| Type |
Type 7&9 Push-Pull Unit |
Constrction
| Number of command positions |
2 |
| Material front ring |
Plastic |
| Color cap |
Red |
| Head type |
Mushroom head |
| Finger-safe guards |
No guards on terminals |
| Contact block |
1 NCLB, 1 NO, standard contact block (800T-XA1) |
| With front ring |
True |
Electrical
| Suitable for illumination |
False |
| Rated operational current |
69VA @ 28...600V DC |
| Rated operational current, break |
720VA @ 72...120V AC |
| Rated operational current, make |
7200VA @ 120...600V AC |
| Operational voltage (Ue), max |
600V AC @ 600V DC |
| Thermal continuous current (Ith), max |
10A AC @ 2.5A DC |
| Utilization category |
AC-15 per IEC, DC-13 per IEC |
| Contact operation |
Slow, double make and break |
| Dielectric strength |
2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle |
1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
Mechanical
| Spring-return |
False |
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Mechanical life operations |
250000 minimum |
| Operator type |
2 pos. push-pull push-button, non-illuminated |
| Number of positions |
2-position maintained |
| Typical operating force for 2-position push-pull |
9 lb maximum push or pull |
| Typical operating forces operator without contact blocks |
Standard mushroom: 2.9 lb maximum |
| Shock |
1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Degree of protection |
Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Vibration |
10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Terminal screw torque |
6 in-lb |
| Wire gauge |
18 AWG |
Environmental
| Operating temperature |
-20 °C |
| Humidity |
50% @ 104°F (40 °C) |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800HFPX6A1
