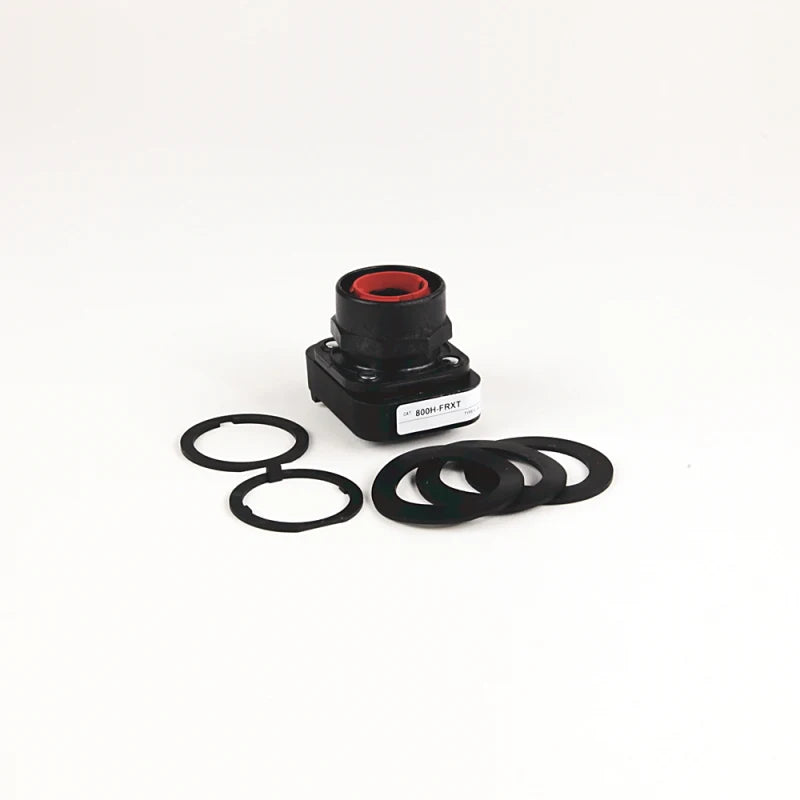

800HFRXT - Allen-Bradley - 30mm Push-Pull Device 800H PB
30 mm push‑pull maintained operator with twist release, no cap included. Designed for NEMA 1/4/4X/12/13 environments, plastic construction, mechanical life ≥250 k cycles, UL/CSA/CE certified.
TECHNICAL SPECIFICATIONS
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap type |
Mushroom head |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Operator mechanical design life (cycles, min.) |
250000 |
| Operator cap color |
No cap |
| Operator cap/button size |
40 mm |
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13 |
| Operator function |
2-position |
| Operator type |
Push-pull unit |
| Operator special function |
Maintained with twist release |
| Contact block configuration |
No contacts |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Construction
| Operator construction/material |
Plastic |
PRODUCT DATASHEET
800HFRXT
