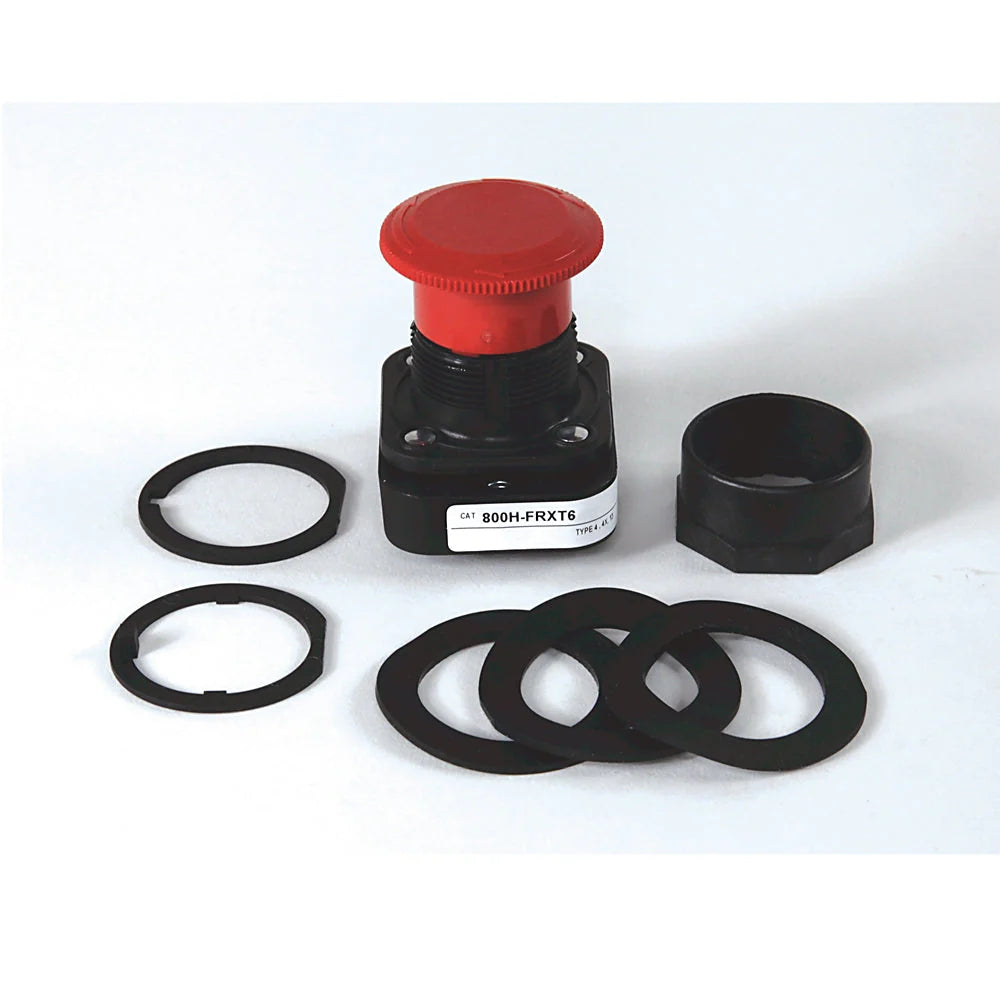

800HFRXT6A5 - Allen-Bradley - 30mm Push-Pull Device 800H PB
This version similarly includes contact blocks integrated with the 30 mm push-pull/twist operator and supports 10 A resistive switching under AC or DC utilization categories. It retains the same rugged environmental protection levels and mechanical design life (~1,000,000 cycles). It is optimized for panel-level emergency or control applications requiring tactile operator force.
TECHNICAL SPECIFICATIONS
General
| Cap Selection | Standard Mushroom Head |
|---|---|
| Type | 30mm Push-Pull Device |
Electrical
| Suitable for illumination | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Mushroom head |
Mechanical
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator function | 2-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Maintained with twist release |
| Contact block configuration | 2-NCLB standard contact |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
Environmental
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
Construction
| Operator construction/material | Plastic |
|---|
