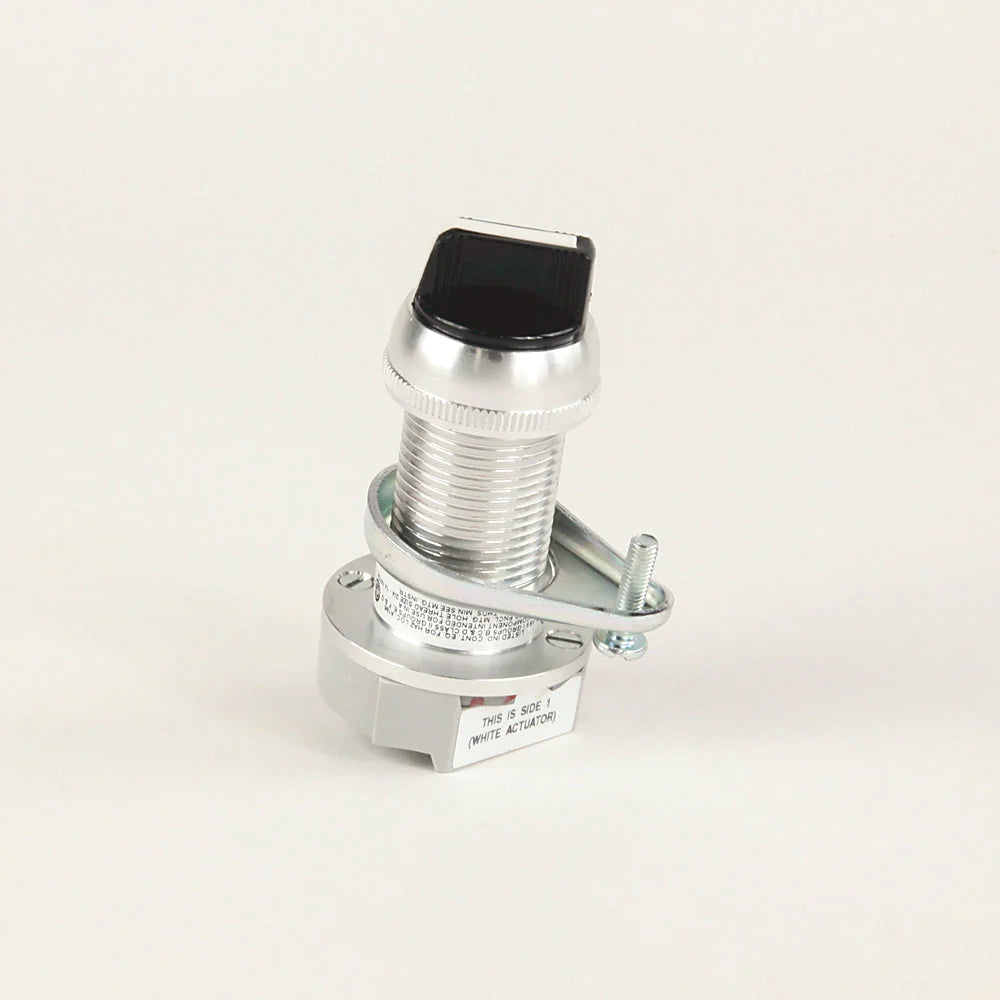

800HHP2KB6 - Allen-Bradley - Type 7&9 Selector Switch 800H PB
This is a two‑position maintained selector switch designed for hazardous locations (Type 7 and 9), using a standard knob in a 30.5 mm panel cutout. It does not include any contact blocks, and it supports screw‑terminal connections with rugged construction suitable for up to 600 VAC/DC and over 1,000,000 mechanical cycles. The switch is non‑repairable, rated for harsh industrial environments and meets high shock and vibration standards
TECHNICAL SPECIFICATIONS
General
| 2-Position Cam Options | KB6 Cam |
|---|---|
| Bull Number Modifier | No Guards - on Terminals |
| Insert or Wing Lever Color | Standard |
| Operator Type & Function | Standard Knob Maintained |
| Position 2 Contact Block | No |
| Position 4 Contact Block | No |
Mechanical
| Number of switch positions | 2 |
|---|---|
| Spring-return | False |
| With light source | False |
| Switching function latching | True |
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Mechanical life operations | 200000 minimum |
| Shock | 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Vibration | 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Terminal screw torque | 6 in-lb |
| Typical operating force for spring return selector switches | 5 in-lb to stop, 0.2 in-lb to return |
| Typical operating forces operator without contact blocks | Maintained selector switch: 4 in-lb maximum |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
Electrical
| Suitable for illumination | False |
|---|---|
| Position 2 contact block | Not applicable |
| Position 1 contact block | No contact blocks |
| Position 3 contact block | No contact blocks |
| Position 4 contact block | Not applicable |
| Wire gauge | 18 AWG |
| Dielectric strength | 2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle | 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
Construction
| Material front ring | Plastic |
|---|---|
| Type of control element | Key |
| 2-position cam options | KB6 cam |
| 3-position cam options | Not applicable |
| 4-position cam options | Not applicable |
| Position 5 contact block | Not applicable |
| Finger-safe guards | No guards on terminals |
| Operator type & function | Standard knob, maintained |
| Insert lever color | White insert with standard or knob lever or grey color with metal winglever |
| With front ring | True |
Environmental
| Operating temperature | -20 °C |
|---|---|
| Humidity | 50% @ 104°F (40 °C) |
| Storage temperature | -40 °C |
