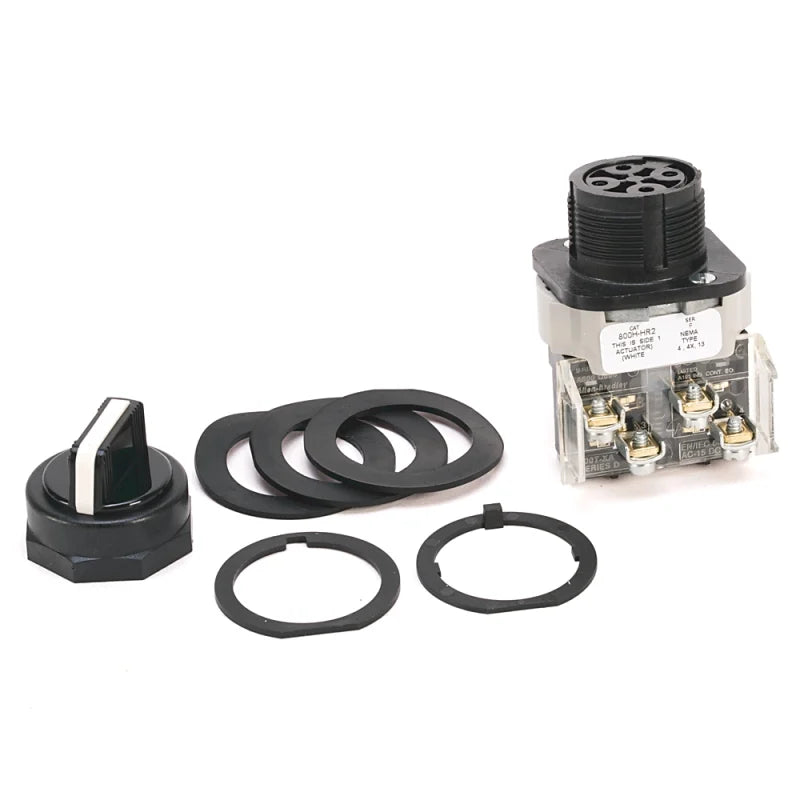

800HHR5 - Allen-Bradley - 30mm Selector Switch 800H PB
The HR5 is a two‑position selector switch with spring‑return action (spring returns knob to default after operation) and no contact blocks included. It accepts a standard knob with white insert, mounts in a 30.5 mm hole, and uses screw‑terminal wiring. Designed to meet NEMA 4X/13 ratings for rugged industrial use, and built for reliable operation with up to 1,000,000 mechanical cycles
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 2 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Operator function | Spring return from right |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
