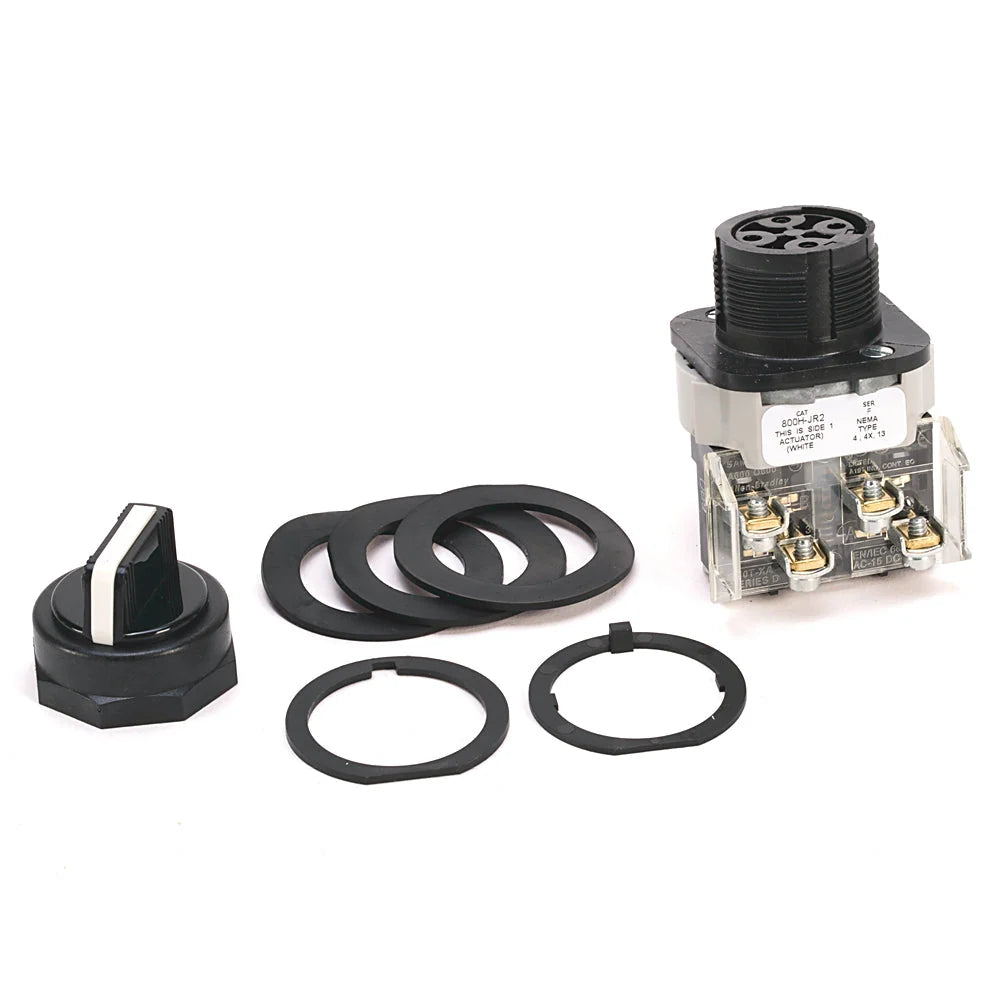

800HJR2A - Allen-Bradley - 30mm Selector Switch 800H PB
This selector switch includes one normally‑open and one normally‑closed contact block integrated in a three‑position maintained unit. It retains the same rugged 30.5 mm housing, screw‑terminal connection, and modular cam compatibility as the JR2. Suitable for industrial panels requiring multi‑position logic selection with reliable contact switching cycles
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
