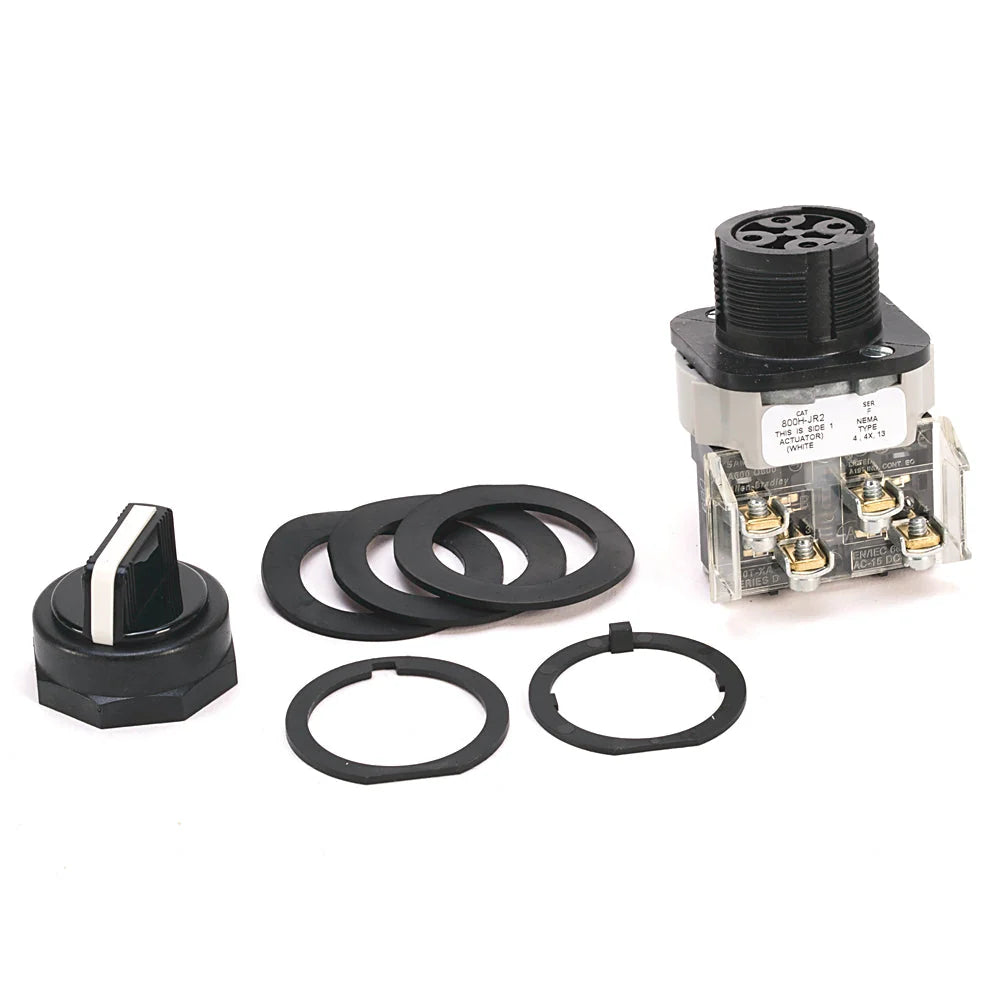

800HJR4 - Allen-Bradley - 30mm Selector Switch 800H PB
This is a 30 mm, three‑position selector switch with a standard plastic knob that returns via spring to its left-center position. It comes delivered without contact blocks, using modular cam mounting, and is rated for panel cutouts of 30.5 mm. Designed to withstand rugged industrial use, it meets NEMA 4/4X/13 standards and supports up to 10 A switching at 600 VAC/DC using screw-terminal wiring
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Operator function | Spring return from left |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cam code | -- (standard cam) |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
