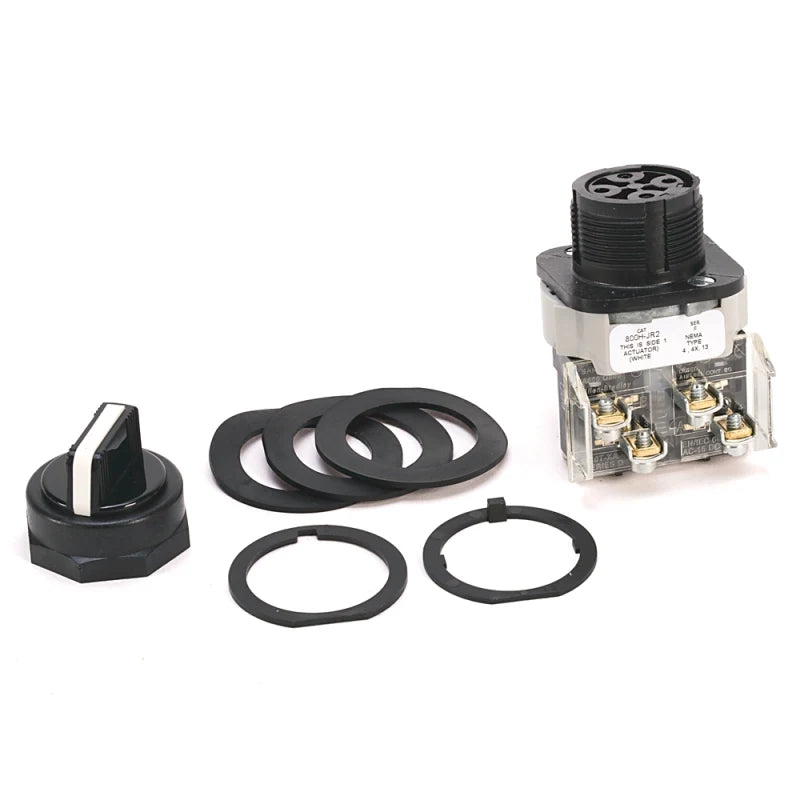

800HJR91 - Allen-Bradley - 30mm Selector Switch 800H PB
The 800H-JR91 is a 30 mm three-position selector switch designed with spring return from both left and right positions. It features a black plastic knob with a white insert and supports modular cam-operated contact blocks. Built for durability, it offers up to 10 A at 600 VAC/DC with rugged NEMA Type 1, 4, 4X, 12, and 13 ratings for harsh industrial environments.
TECHNICAL SPECIFICATIONS
Mechanical
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Selector switch |
| Operator function | Spring return from left and right |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Electrical
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cap color | Black with white Insert |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
