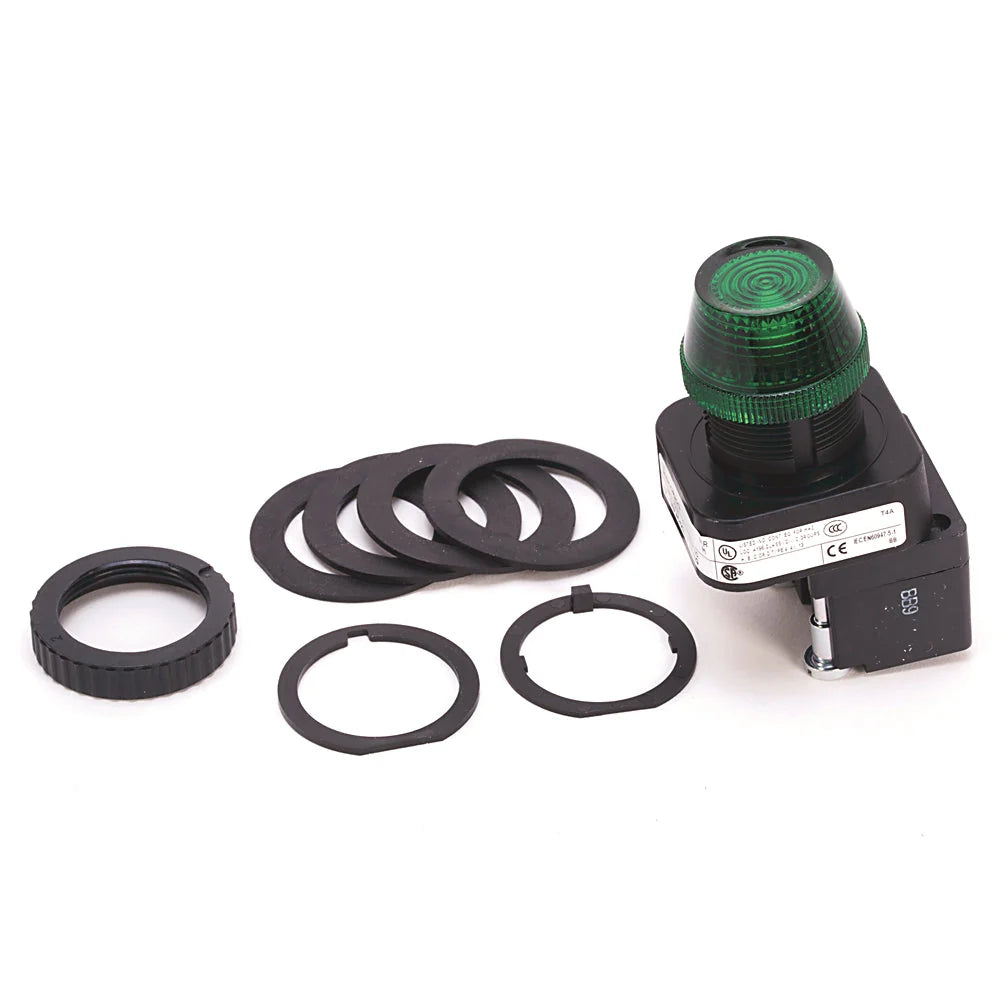

800HQRH2G - Allen-Bradley - 30mm Pilot Light 800H PB
The 800H-QRH2G is a green illuminated push-button with a universal LED module. Designed for high visibility and reliability, it operates in 12–130V AC/DC ranges. Built to withstand harsh conditions with NEMA 4/4X/13 protection.
TECHNICAL SPECIFICATIONS
General
| Type | 30mm Pilot Light |
|---|
Electrical
| Number of indicator lights | 1 |
|---|---|
| Illumination lamp type | LED |
| Operator construction/material | Plastic |
| Illumination module type | Full voltage |
| Illumination module input voltage | 12...130V AC/DC |
| Operator illuminated | True |
Mechanical
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
Construction
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap type | Fresnal |
| Operator cap color | Green |
| Operator cap/button material | Plastic |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
