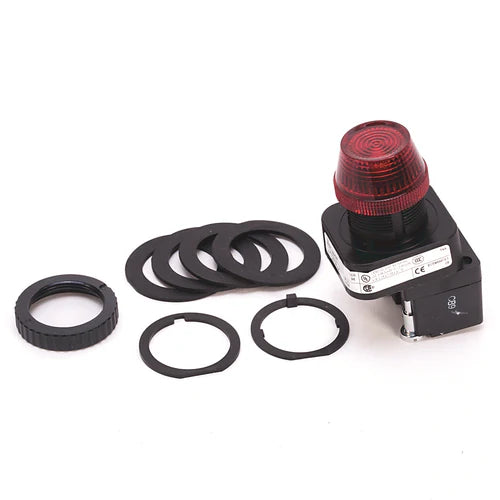

800HQRH2R - Allen-Bradley - 30mm Pilot Light 800H PB
This unit features a red illuminated push-button, ideal for status indication or emergency signals. It includes a universal LED and rugged construction for tough environments. NEMA-rated for water, dust, and corrosion resistance.
TECHNICAL SPECIFICATION
General
Electrical
| Number of indicator lights |
1 |
| Illumination lamp type |
LED |
| Operator construction/material |
Plastic |
| Illumination module type |
Full voltage |
| Illumination module input voltage |
12...130V AC/DC |
| Operator illuminated |
True |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13 |
| Operator type |
Pilot light |
| Vibration |
10 G maximum |
| Shock |
100 G (no damage) |
| Illumination module termination wire range |
14 - 18 AWG (x2) |
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button shape |
Round |
| Operator cap type |
Fresnal |
| Operator cap color |
Red |
| Operator cap/button material |
Plastic |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
Class I, div. 2 |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800HQRH2R
