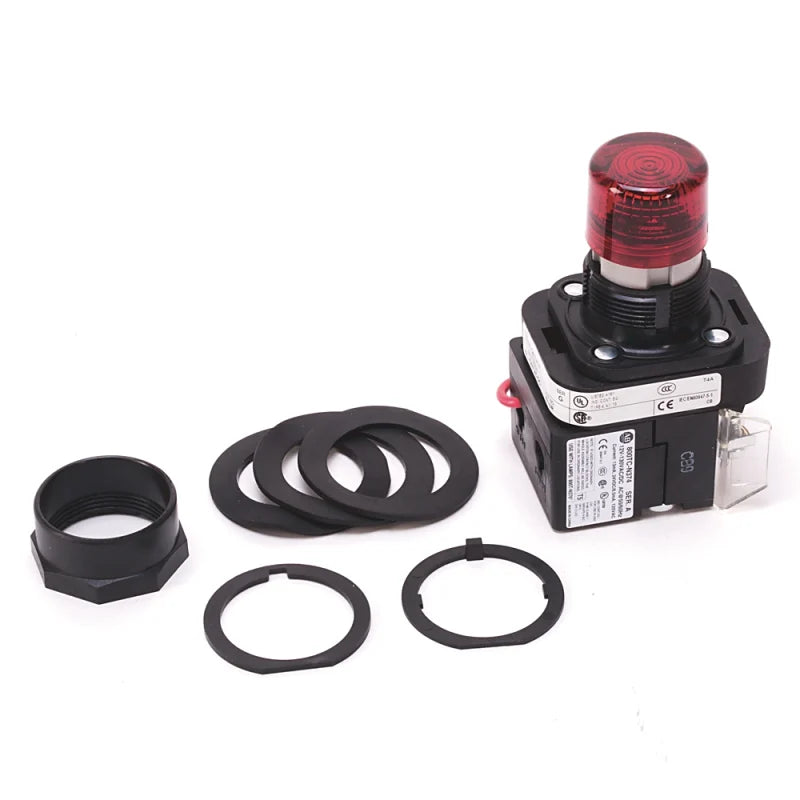

800HQRTH2R - Allen-Bradley - 30mm Pilot Light 800H PB
The 800H-QRTH2R is a transformer-powered red illuminated pilot light offering consistent brightness. It operates on 120V AC input and includes 1 NO and 1 NC contacts. Suited for control panels in demanding industrial settings.
TECHNICAL SPECIFICATION
General
| Lamp Test Type |
Push-to-Test Type |
| Product Type |
30mm Pilot Light |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Operator mechanical design life (cycles, min.) |
250000 |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13 |
| Operator function |
Push-to-test |
| Operator type |
Pilot light, with lA test feature |
| Vibration |
10 G maximum |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Contact block termination wire range |
14 - 18 AWG (x2) |
| Illumination module termination wire range |
14 - 18 AWG (x2) |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button shape |
Round |
| Operator cap type |
Fresnal |
| Operator cap color |
Red |
| Operator cap/button material |
Plastic |
| Contact block configuration |
1-NO 1-NC standard contacts |
Electrical
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Illumination lamp type |
LED |
| Contact block operational voltage, max |
600V AC @ 600V DC |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Operator construction/material |
Plastic |
| Illumination module type |
Full voltage |
| Illumination module input voltage |
12...130V AC/DC |
| Suitable for illumination |
True |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800HQRTH2R
