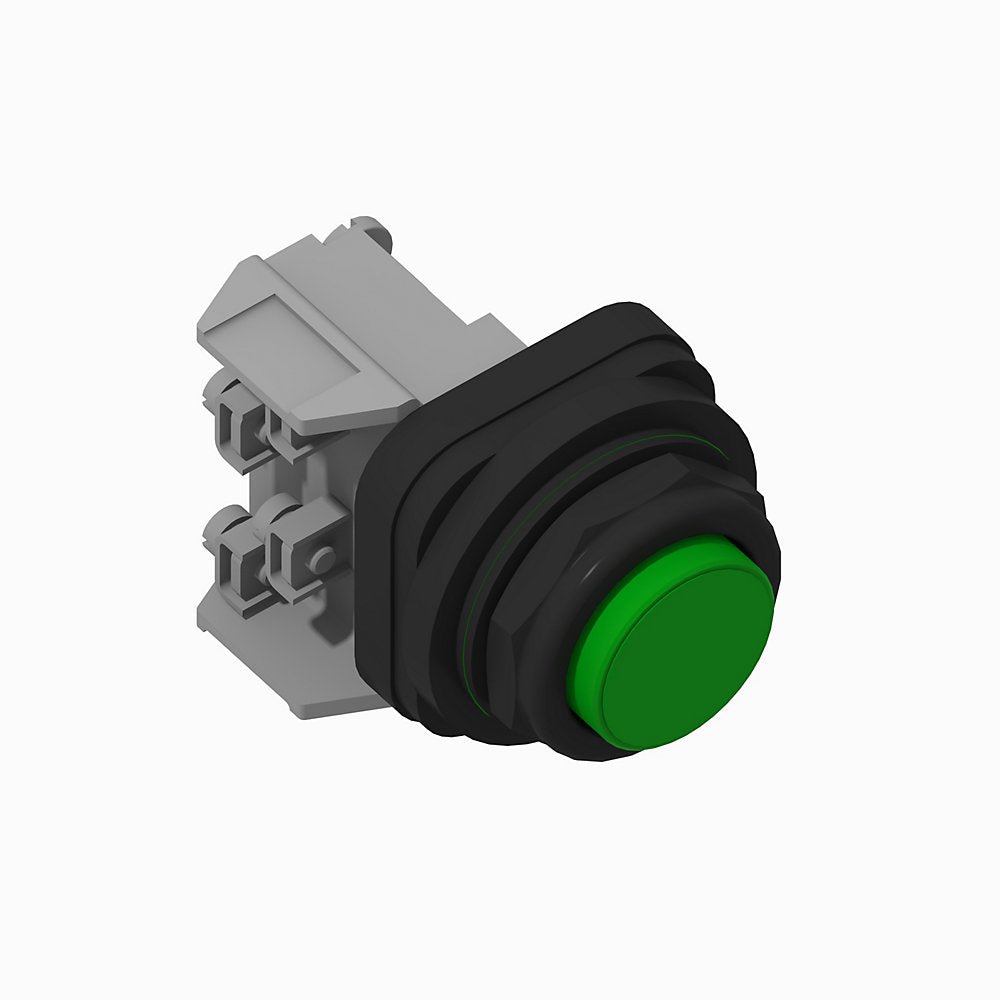

800HR1A - Allen-Bradley - 30mm Momentary Push Button 800H PB
This push-button features a flush head and dual contact configuration (1 NO + 1 NC). It provides reliable operation in both standard and harsh conditions. Perfect for versatile control panel layouts requiring compact solutions.
TECHNICAL SPECIFICATION
General
| Type | 30mm Momentary Push Button |
|---|
Electrical
| Suitable for illumination | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Synthetic rubber |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Booted head |
Mechanical
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator cap color | Green |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator function | Momentary contact |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Push button |
| Contact block configuration | 1 NO, 1 NC, standard contact block (800T-XA) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
Environmental
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
Construction
| Operator construction/material | Plastic |
|---|
PRODUCT DATASHEET
