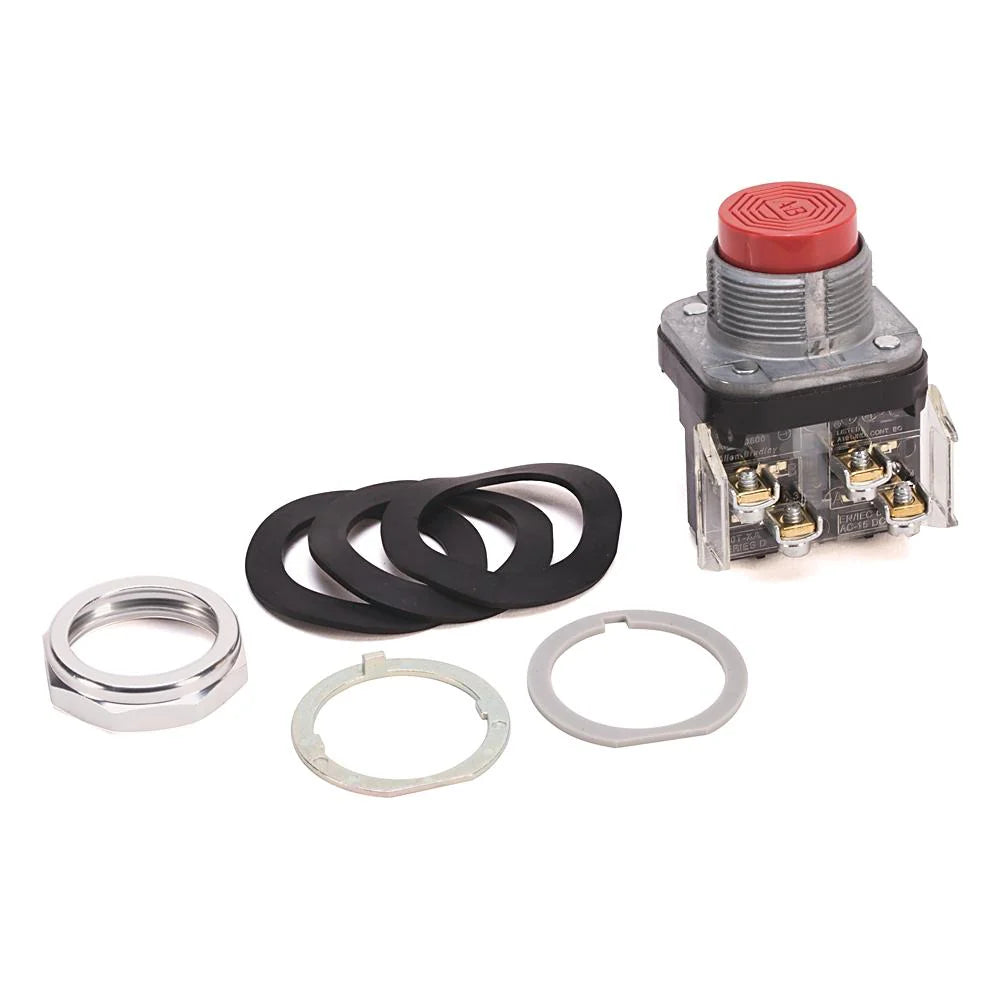

800TB1A - Allen-Bradley - 30mm Momentary Push Button 800T PB
Flush‑head momentary operator similar in function to A1 style, but with alternate cap design for differentiation. Includes one NO and one NC contact block and mounts in standard 30 mm 800T stations. Rated NEMA 4/13 for industrial durability.
TECHNICAL SPECIFICATIONS
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap/button material |
Plastic |
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Contact block operational voltage, max |
600V AC @ 600V DC |
| Operator cap type |
Extended head |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Operator mechanical design life (cycles, min.) |
1.0E7 |
| Operator cap color |
Green |
| Operator cap/button size |
30 mm |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator function |
Momentary contact |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type |
Push button |
| Operator special function |
N/A |
| Contact block configuration |
1 NO, 1 NC, standard contact block (800T-XA) |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
| Contact block termination wire range |
14 - 18 AWG (x2) |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Construction
| Operator construction/material |
Metal |
PRODUCT DATASHEET
800TB1A
