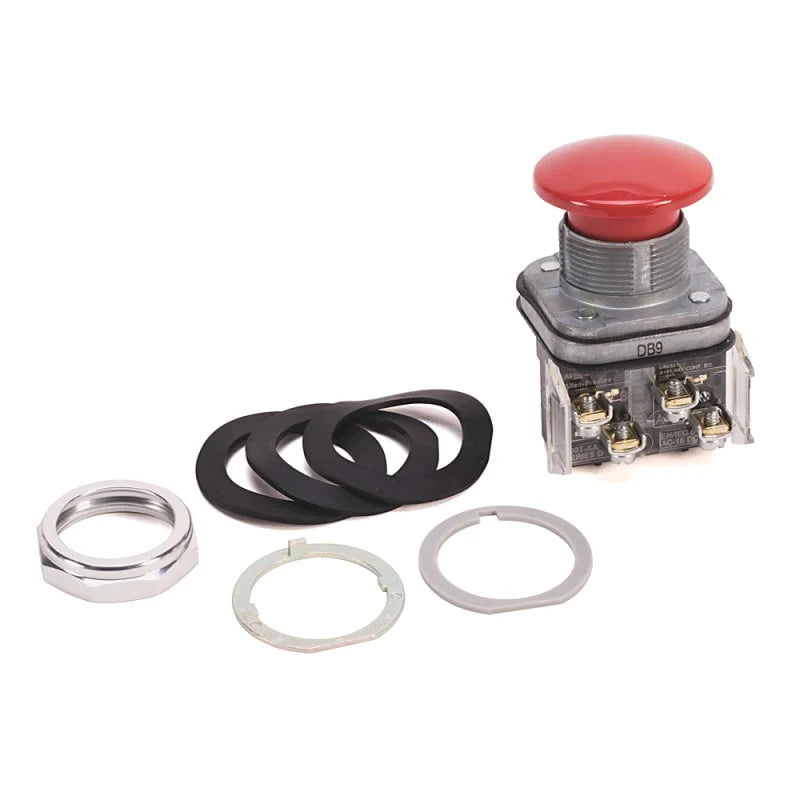

800TD6A - Allen-Bradley - 30mm Momentary Push Button 800T PB
Maintained push‑pull operator configured with alternate actuation force or style (variant of B6). Provides latching actuation and visual distinction for special control modes. Supports 1 NO and 1 NC contact block and industrial sealing.
TECHNICAL SPECIFICATIONS
General
| Product Type |
30mm Momentary Push Button |
Electrical
| Suitable for illumination |
False |
| Operator cap/button shape |
Round |
| Operator cap/button material |
Plastic |
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Contact block operational voltage, max |
600V AC @ 600V DC |
| Operator cap type |
Mushroom head |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Terminations with finger safe covers |
False |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Operator mechanical design life (cycles, min.) |
200000 |
| Operator cap color |
Red |
| Operator cap/button size |
40 mm |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator function |
Momentary contact |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type |
Push button |
| Operator special function |
N/A |
| Contact block configuration |
1 NO, 1 NC, standard contact block (800T-XA) |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
| Contact block termination wire range |
14 - 18 AWG (x2) |
Environmental
| Humidity |
50 % |
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Storage temperature |
-40 °C |
Construction
| Operator construction/material |
Metal |
