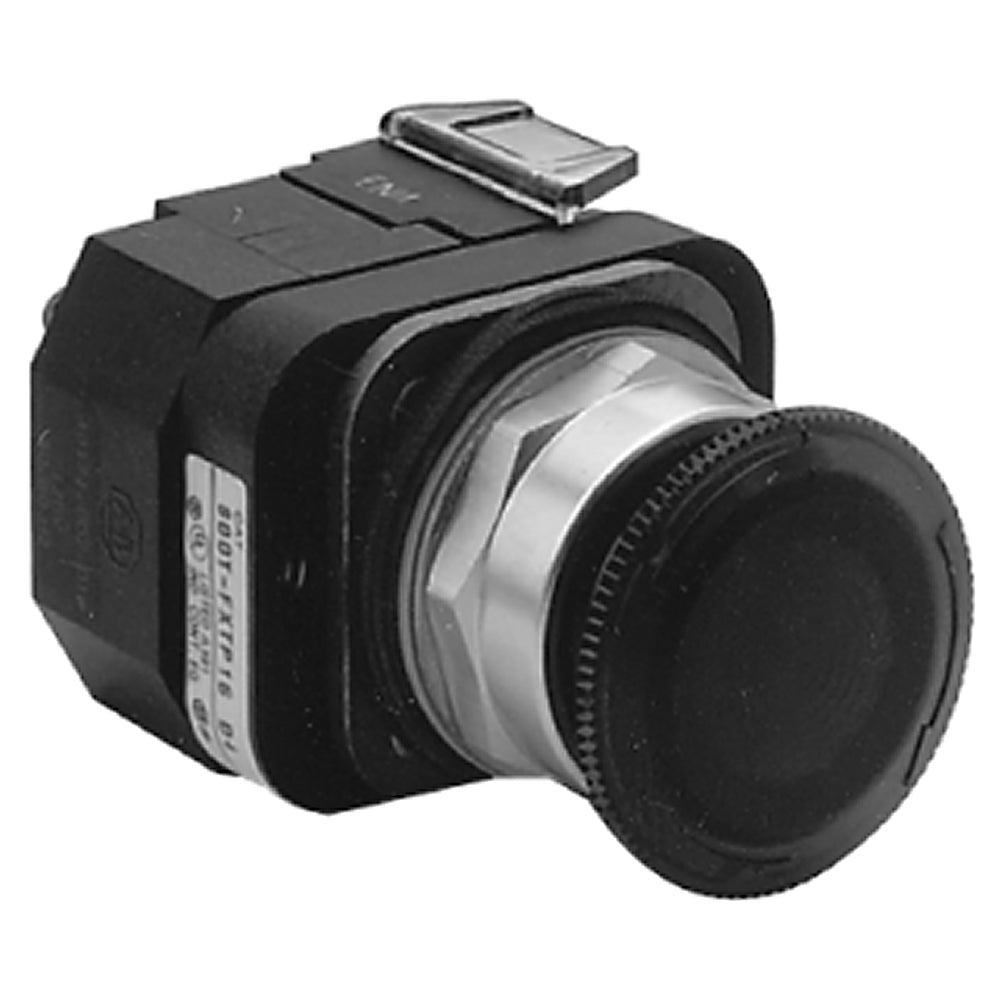

800TFXTP16RA1 - Allen-Bradley - 30mm Push-Pull Device 800T PB
Part of 800T series 30 mm push-pull/twist release illuminated pushbuttons; LED or transformer lamp options available, designed for control panels and operator interfaces. (Based on standard 800T spec types)
TECHNICAL SPECIFICATIONS
General
| Cap Selection |
Standard Mushroom Cap
|
|---|---|
| Type |
30mm Push-Pull Device
|
Mechanical
| Hole diameter |
30.5 mm
|
|---|---|
| Type of electric connection |
Screw connection
|
| Terminations with finger safe covers |
False
|
| Contact block electrical design life (cycles, at max. load) |
1000000
|
| Operator mechanical design life (cycles, min.) |
250000
|
| Operator cap color |
Red
|
| Operator cap/button size |
40 mm
|
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13
|
| Operator cap text/symbol |
N/A
|
| Illumination module termination wire range |
14 - 18 AWG (x2)
|
| Operator function |
2-position
|
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
| Operator type |
Push-Pull Unit
|
| Operator special function |
Maintained with twist release
|
| Contact block configuration |
1 NCLB, 1 NO, standard contact block (800T-XA1)
|
| Shock |
25 G (contact fragility)/100 G (no damage)
|
| Vibration |
10 G maximum
|
| Contact block termination wire range |
14 - 18 AWG (x2)
|
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
Environmental
| Humidity |
50 %
|
|---|---|
| Operating temperature |
-25 °C
|
| Hazardous location rating |
False
|
| Storage temperature |
-40 °C
|
Construction
| Operator construction/material |
Metal
|
|---|
