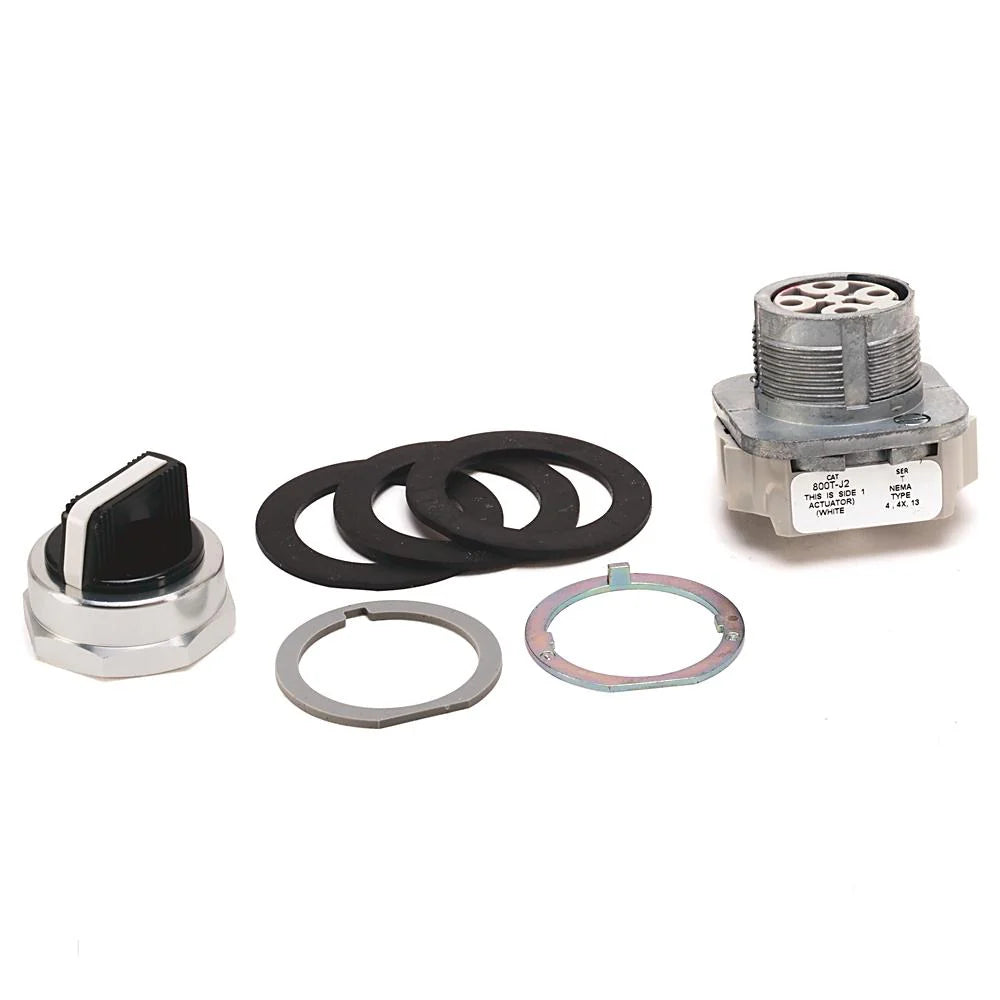

800TJ2B - Allen-Bradley - 30mm Selector Switch 800T PB
Another variant of the J2 series featuring an alternate button design or mounting option. Three‑position selector with maintained action and non‑illuminated operation. Engineered to meet industrial durability standards.
TECHNICAL SPECIFICATIONS
General
| Type |
30mm Selector Switch |
Mechanical
| Number of switch positions |
3 |
| Hole diameter |
30.5 mm |
| Operator mechanical design life (cycles, min.) |
1000000 |
| Contact block electrical design life (cycles, at max. load) |
1000000 |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Selector switch |
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function |
Maintained |
| Shock |
25 G (contact fragility)/100 G (no damage) |
| Vibration |
10 G maximum |
| Contact block termination wire range |
14 - 18 AWG (x2) |
Electrical
| Suitable for illumination |
False |
| Contact block configuration |
2-NO 2-NC standard contacts |
| Contact block thermal current rating |
10 A |
| Contact block utilization category (AC) |
A600, AC-15 |
| Contact block utilization category (DC) |
Q600, DC-13 |
| Contact block operational voltage, max |
600V AC @ 600V DC |
Environmental
| Operating temperature |
-25 °C |
| Hazardous location rating |
False |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button material |
Plastic |
| Operator construction/material |
Metal |
| Operator cap type |
Standard knob |
| Operator cam code |
Standard cam |
| Operator cap color |
Black with white insert |
PRODUCT DATASHEET
800TJ2B
