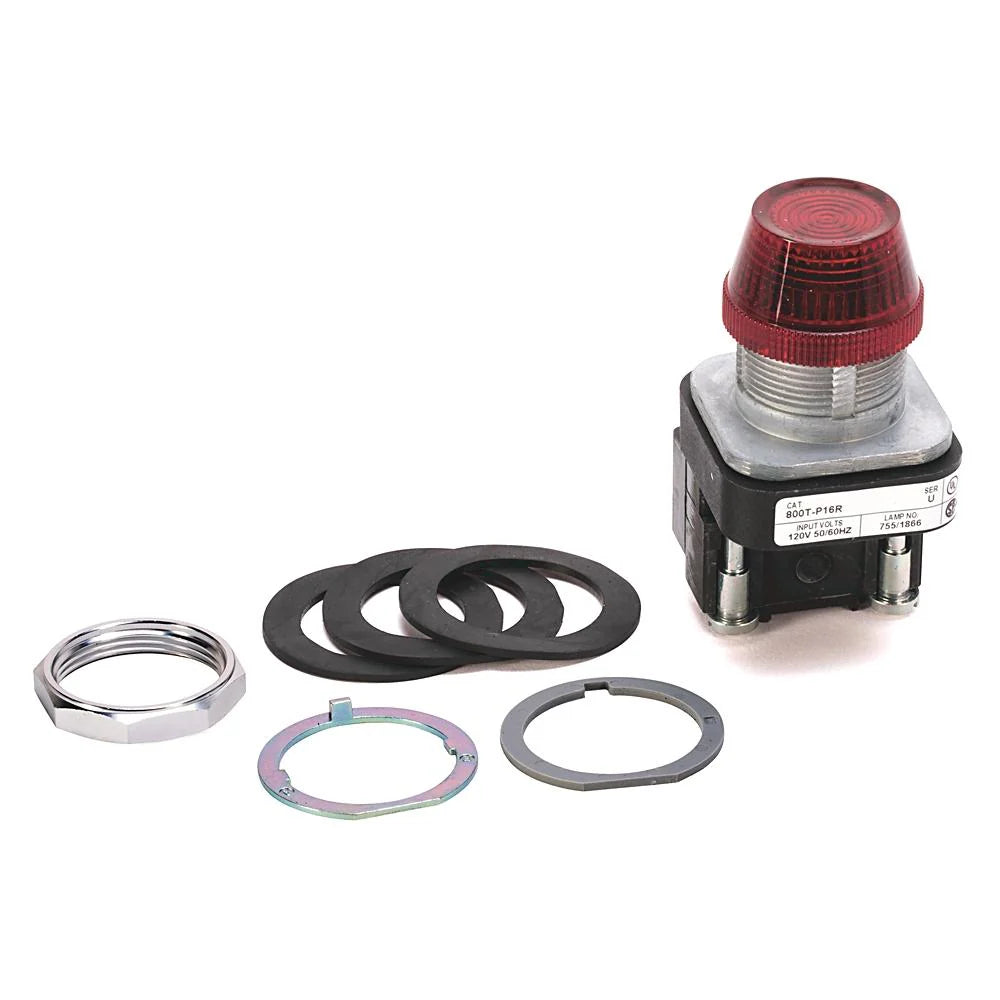

800TP16R - Allen-Bradley - 30mm Pilot Light 800T PB
A 30 mm pilot light module with red plastic lens, incandescent lamp powered via internal transformer (120 VAC, 50/60 Hz). Designed for NEMA 1/4/12/13 use; screw-terminal connections and not finger‑safe protected. Factory-assembled, non‑repairable accessory.
TECHNICAL SPECIFICATIONS
General
Electrical
| Number of indicator lights |
1 |
| Illumination lamp type |
Incandescent |
| Operator construction/material |
Metal |
| Illumination module type |
Transformer |
| Illumination module input voltage |
120V AC @ 50/60Hz |
| Suitable for illumination |
True |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Pilot light |
| Vibration |
10 G maximum |
| Shock |
100 G (no damage) |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button shape |
Round |
| Operator cap type |
Fresnal |
| Operator cap color |
Red |
| Operator cap/button material |
Plastic |
Environmental
| Operating temperature |
-25 °C |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800TP16R
