800TQBH2R - Allen-Bradley - 30mm Momentary Push Button 800T PB

800TQBH2R - Allen-Bradley - 30mm Momentary Push Button 800T PB

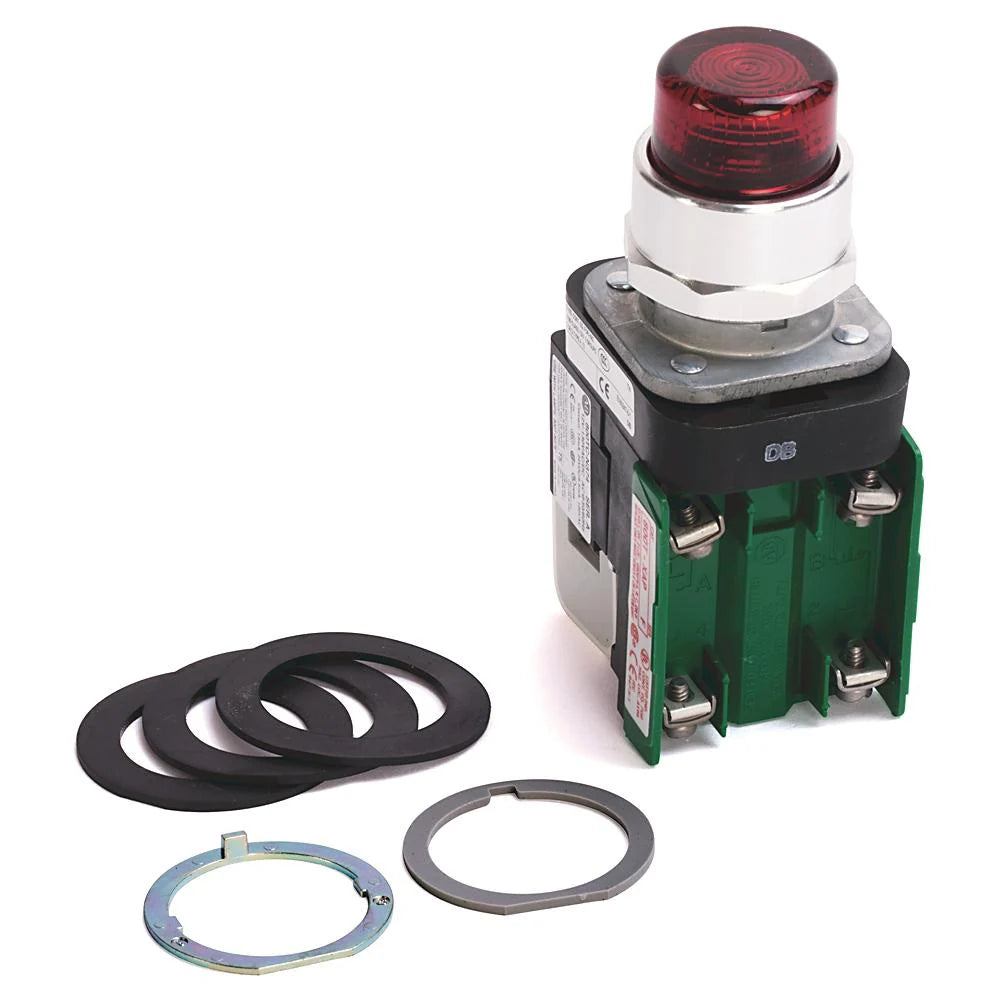

Extended-head momentary push-button illumination variants in green (H2G) or red (H2R). Designed to fit 30 mm panel cutouts; likely full-voltage incandescent and factory-assembled. Ideal for distinct color-coded signaling in industrial controls.

TECHNICAL SPECIFICATION

General

Type	30mm Momentary Push Button

Electrical

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	LED
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	12...130V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Extended head without guard

Mechanical

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Red
Operator cap/button size	30 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Contact block configuration	1 NO, 1 NC, standard contact block
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Environmental

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Construction

PRODUCT DATASHEET

800TQBH2R
