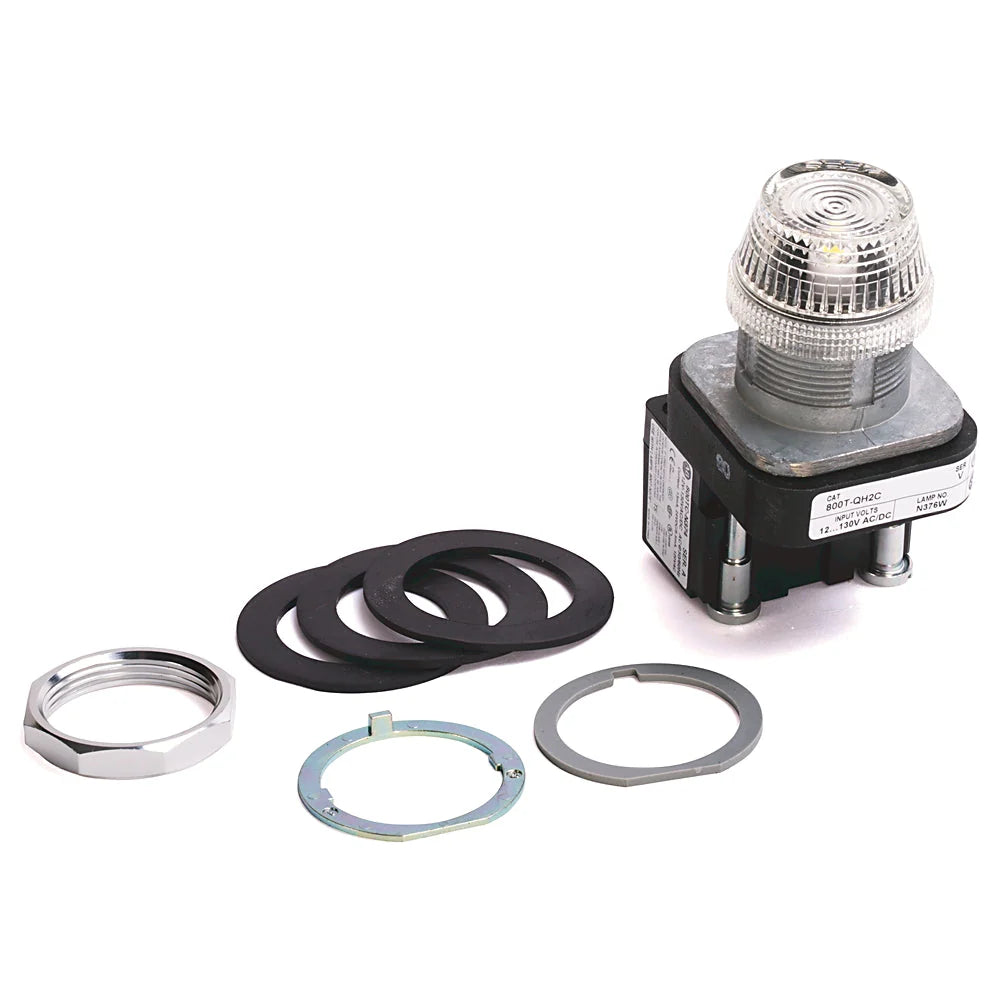

800TQH2G - Allen-Bradley - 30mm Pilot Light 800T PB
Heavy-duty maintained or momentary push-button operators (variants A, green, red) for 30 mm panels. Likely include contact blocks and offer visual indication via LED/incandescent light. Suitable for durable industrial control applications.
TECHNICAL SPECIFICATION
General
Electrical
| Number of indicator lights |
1 |
| Illumination lamp type |
LED |
| Operator construction/material |
Metal |
| Illumination module type |
Full voltage |
| Illumination module input voltage |
12...130V AC/DC |
| Suitable for illumination |
True |
Mechanical
| Hole diameter |
30.5 mm |
| Type of electric connection |
Screw connection |
| Enclosure compatibility (NEMA type) |
1, 4, 12, 13 |
| Operator type |
Pilot light |
| Vibration |
10 G maximum |
| Shock |
100 G (no damage) |
Construction
| Terminations with finger safe covers |
False |
| Operator cap/button shape |
Round |
| Operator cap type |
Fresnal |
| Operator cap color |
Green |
| Operator cap/button material |
Plastic |
Environmental
| Operating temperature |
-25 °C |
| Humidity |
50 % |
| Storage temperature |
-40 °C |
PRODUCT DATASHEET
800TQH2G
