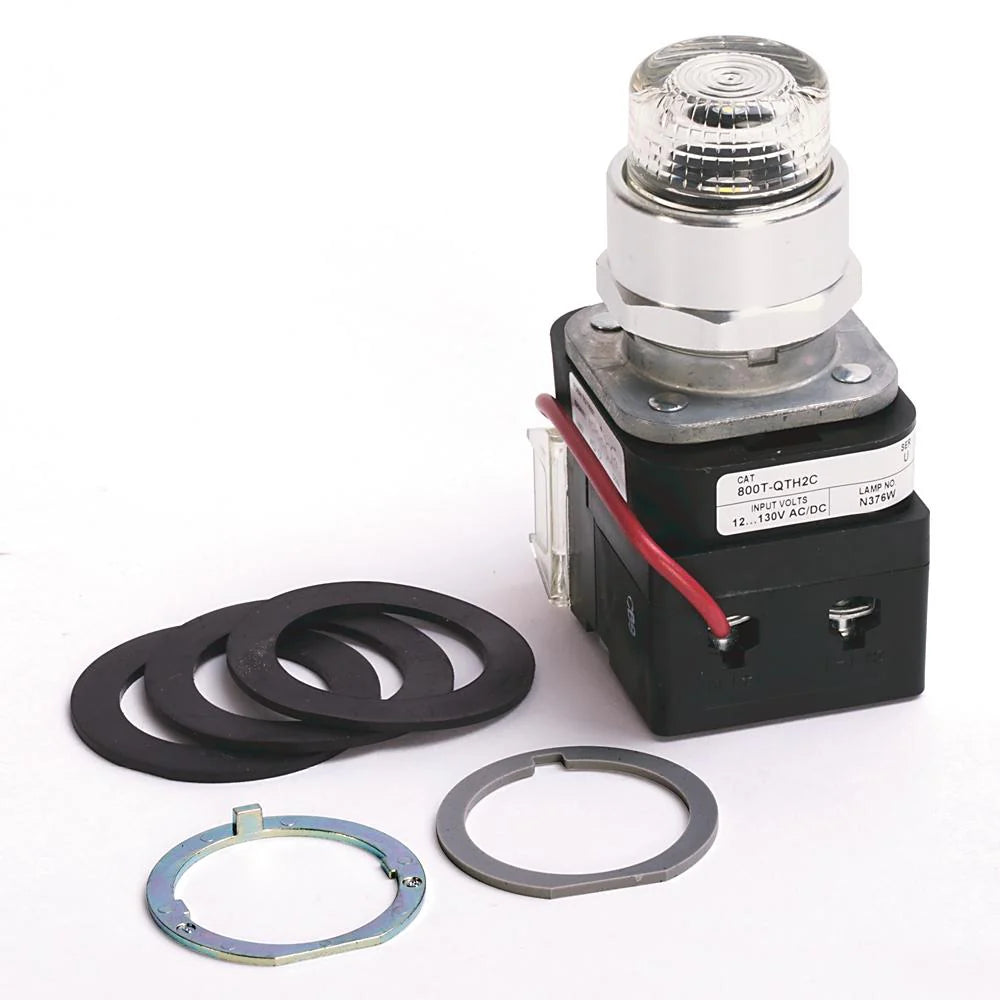

800TQTH2R - Allen-Bradley - 30mm Pilot Light 800T PB

800TQTH2R - Allen-Bradley - 30mm Pilot Light 800T PB

Twist-release style operators with green (H2G) or red (H2R) illumination. Maintained-action with safety shutdown use in mind; likely include one NC contact. Designed for emergency stop or power-off functions in rugged environments.

TECHNICAL SPECIFICATION

General

Lamp Test Type	Push-to-Test Type
Product Type	30mm Pilot Light

Electrical

Number of indicator lights	1
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Illumination lamp type	LED
Contact block operational voltage, max	600V AC @ 600V DC
Contact block utilization category (DC)	Q600, DC-13
Operator construction/material	Metal
Illumination module type	Full voltage
Illumination module input voltage	12...130V AC/DC
Suitable for illumination	True

Mechanical

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	250000
Contact block electrical design life (cycles, at max. load)	1000000
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator function	Push-to-test
Operator type	Pilot light, with lA test feature
Vibration	10 G maximum
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination wire range	14 - 18 AWG (x2)
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Construction

Environmental

Operating temperature	-25 °C
Hazardous location rating	False
Humidity	50 %
Storage temperature	-40 °C

PRODUCT DATASHEET

800TQTH2R
