Description

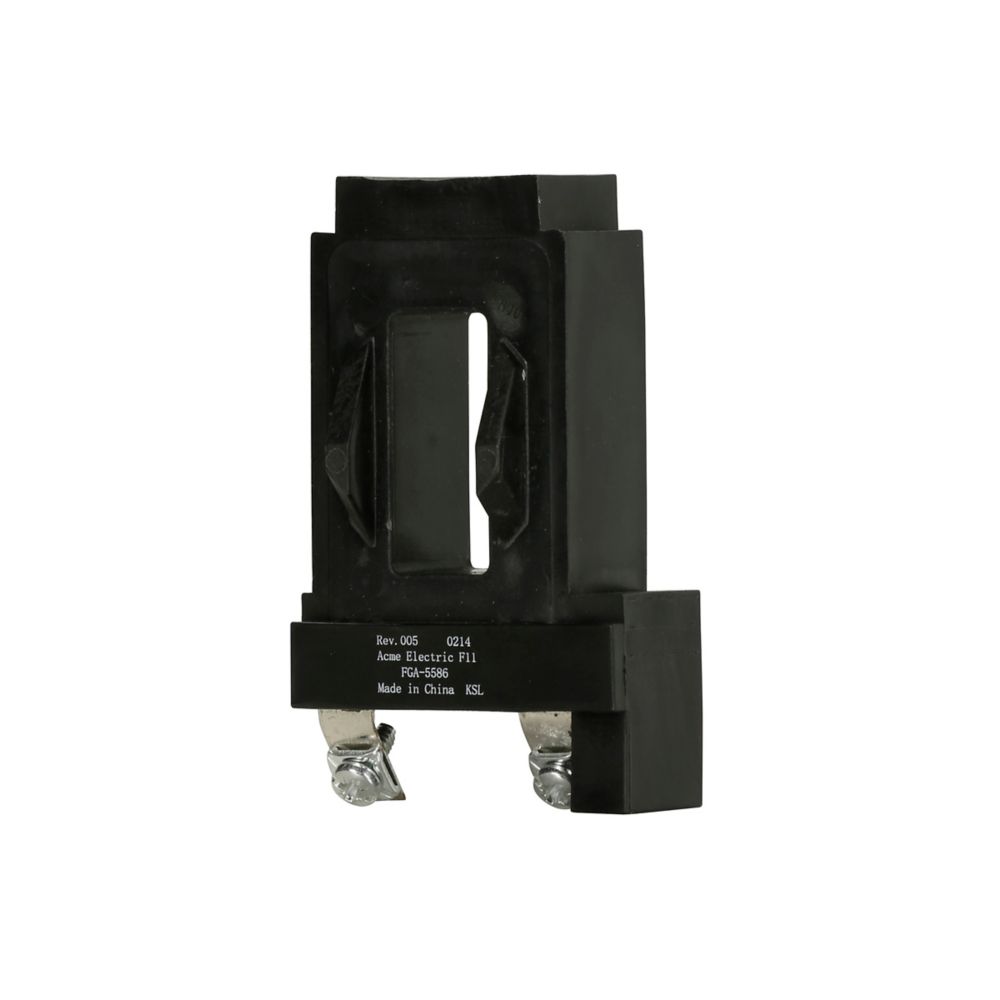

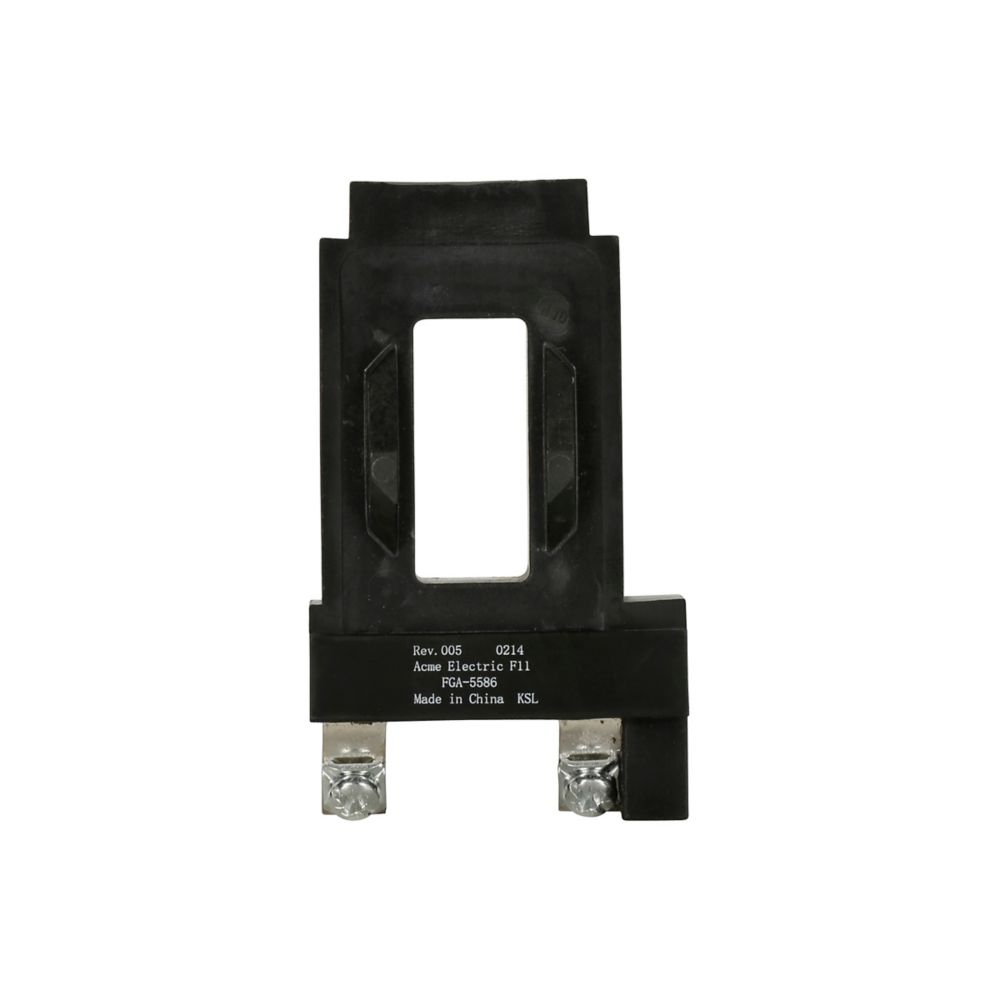

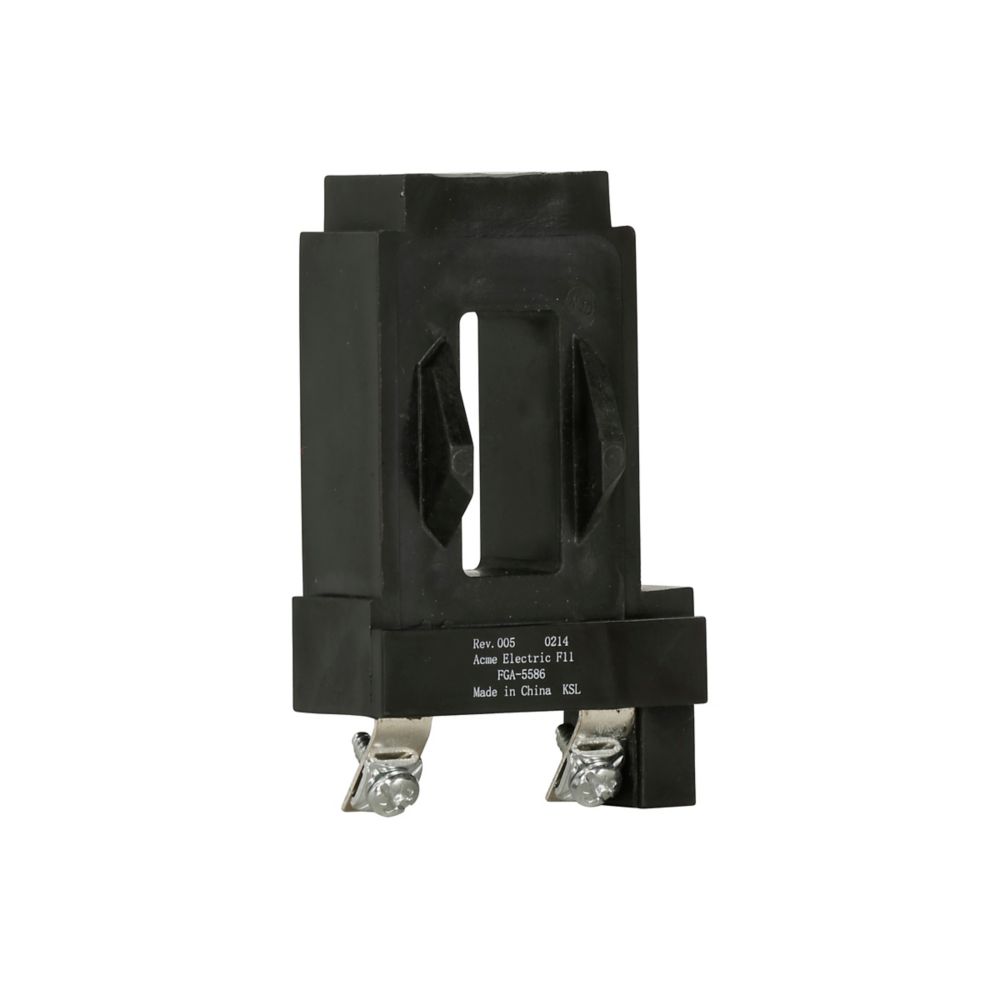

927033 - Eaton Cutler Hammer - 440-480V Motor Control Renewal Parts/Accessories-Coil
The Eaton 9-2703-3 is a high-voltage replacement magnetic coil in the Freedom series, designed for use with NEMA Size 1–2 and IEC Frame Sizes G–K contactors. Rated 440–480 V AC at 50–60 Hz, it measures around 1.068 in × 1.86 in × 2.635 in and weighs approximately 0.36 lb. Compact and efficient, it's suited to robust motor-control applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton motor control coil
|
| Catalog Number |
9-2703-3
|
| UPC |
782113425559
|
| Product Length/Depth |
1.068 in
|
| Product Height |
1.86 in
|
| Product Width |
2.635 in
|
| Product Weight |
0.36 lb
|
| Certifications |
Not Applicable
|
| Catalog Notes |
SUPERSEDES 9-2703-3 WHEN ITS S/O.
|
| Global Catalog |
9-2703-3
|
| Product Type |
Motor control renewal parts/accessories
|
PRODUCT SPECIFICATIONS
| Used with |
Used with Freedom
|
| Type |
Renewal Parts/Accessories
|
| Frequency rating |
50-60 Hz
|
| Coil voltage |
440-480 V
|
| Size |
Size 1-2
|
PRODUCT DATASHEET
