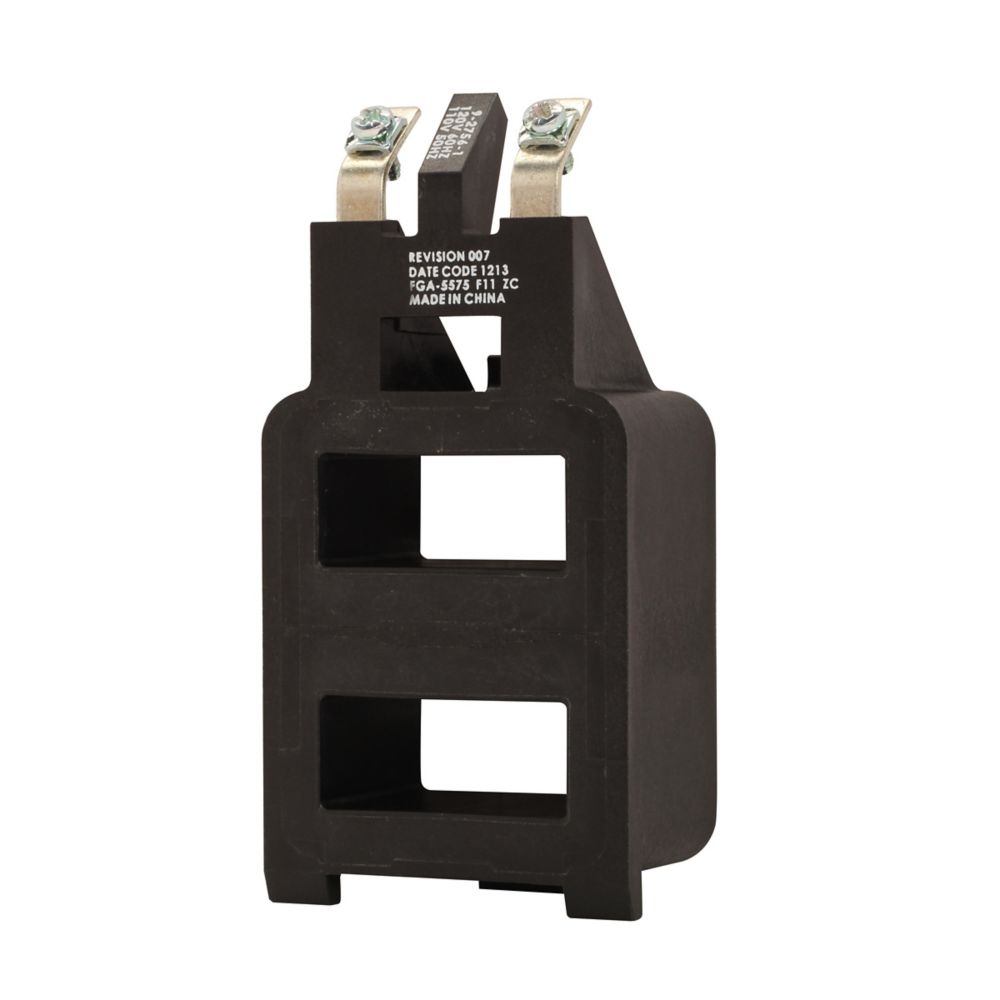

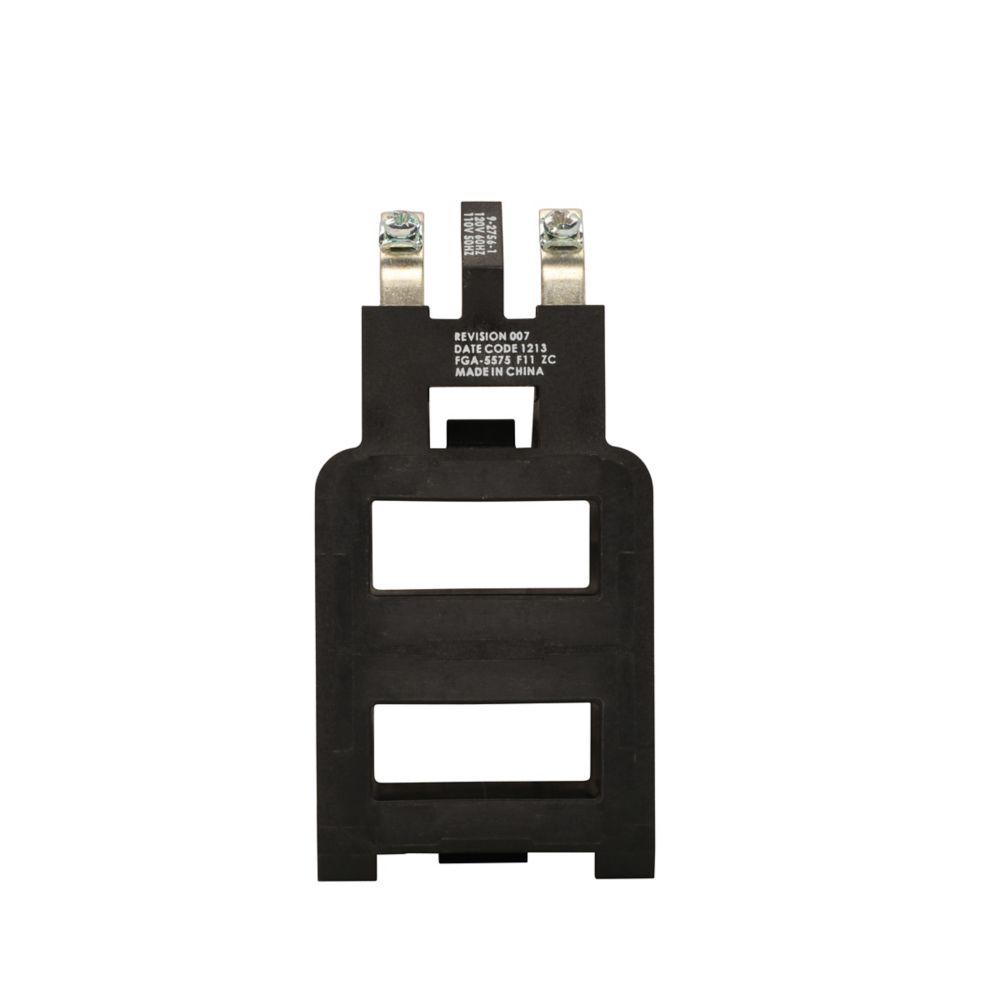

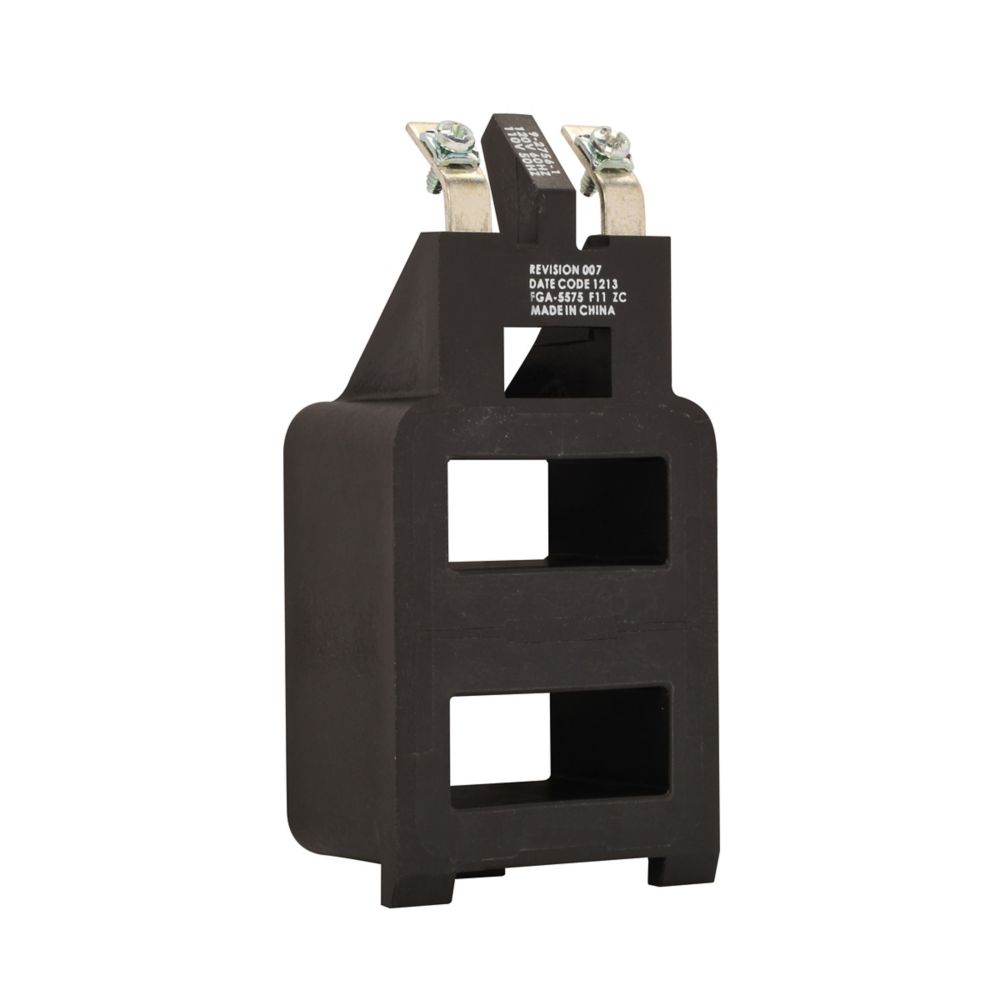

927561 - Eaton Cutler Hammer - 120V Motor Control Renewal Parts/Accessories-Coil
The Eaton 9-2756-1 is a Freedom series magnetic coil replacement, rated for 120 V at 60 Hz (and 110 V at 50 Hz). It’s a Size 3, 90 mm coil compatible with NEMA Size 3 or IEC Frame Sizes L–N, and measures approximately 1.362 in × 4.842 in × 2.835 in with a weight of about 1.06 lb. Its compact design and Freedom series compatibility make it a solid choice for modern motor control refurbishments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton motor control coil
|
| Catalog Number |
9-2756-1
|
| UPC |
782113626741
|
| Product Length/Depth |
1.362 in
|
| Product Height |
2.835 in
|
| Product Width |
4.842 in
|
| Product Weight |
1.06 lb
|
| Certifications |
Not Applicable
|
| Global Catalog |
9-2756-1
|
| Product Type |
Motor control renewal parts/accessories
|
PRODUCT SPECIFICATIONS
| Used with |
Used with Freedom
|
| Type |
Renewal Parts/Accessories
|
| Frequency rating |
60 Hz
|
| Coil voltage |
120 V
|
| Size |
Size 3, 90 mm
|
