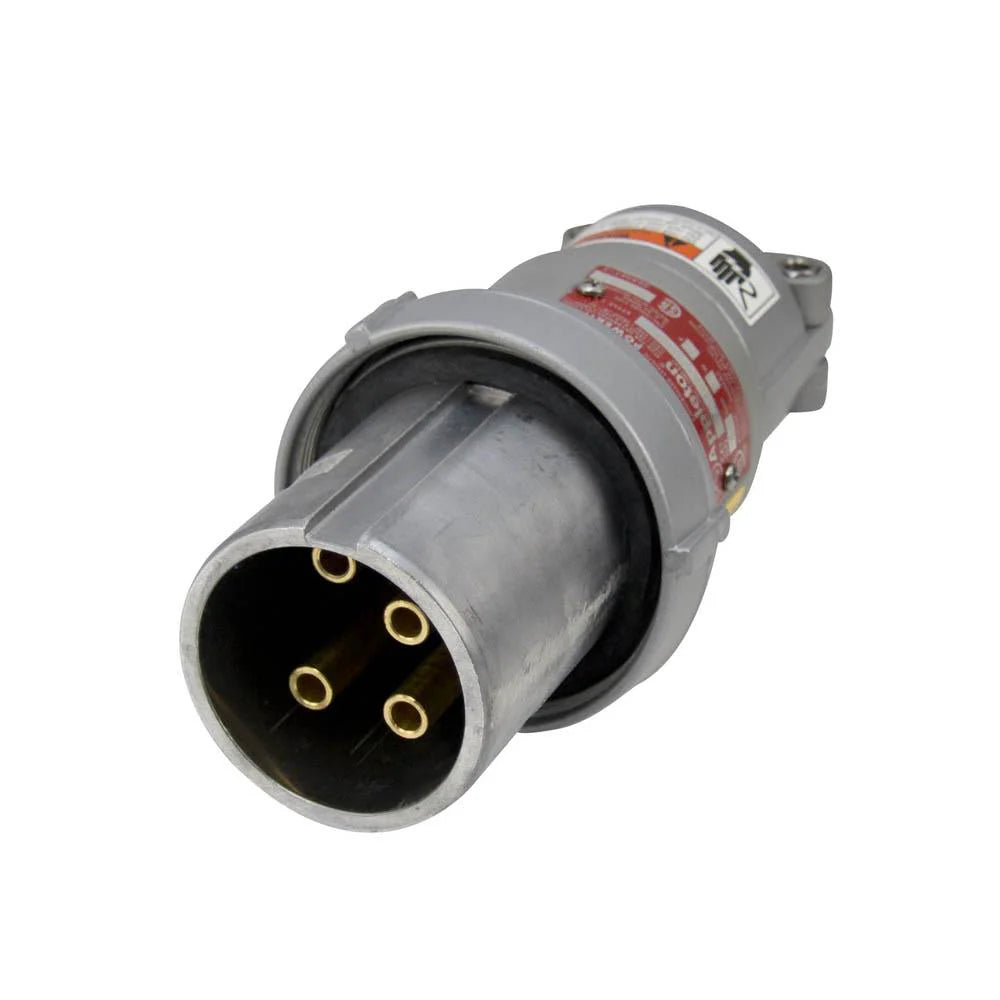

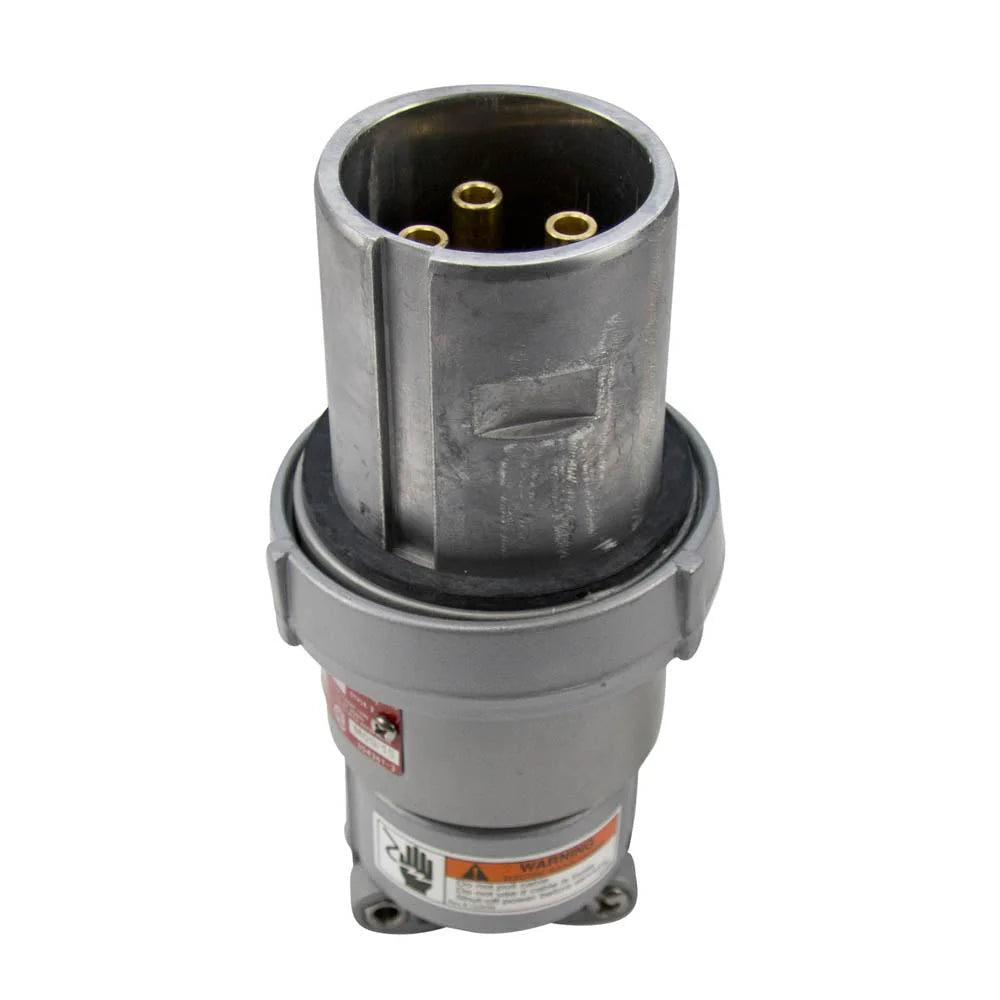

ACP6034BC - Appleton - 60A 4-Pole 3-Wire 600V Plug
This 60 A Style 2 plug adds zero-energy disconnect safety with a shell-ground pole plus three hot poles. Built into a clamping‑ring and powder-coated aluminum body, it’s engineered for corrosion and impact resistance. Solid brass terminals with pressure-wire and spring-clamp design ensure reliable power connections. Rated for 600 VAC/250 VDC and NEMA 4X sealing, it’s perfect for critical circuits requiring safe servicing in hostile environments.
GENERAL SPECIFICATIONS
- Hazardous Area Classification
- Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
- Amperage
- 30, 60 or 100
- Voltage
- 120 Vac, 240 Vac, 480 Vac or 600 Vac
- Number of Poles
- 4
- Number of Wires
- 3
- Plug Cable Diameter
- 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221;
- Wire Range
- 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
- Mounting Box Entries
- Feed-Thru
- Materials and Finishes
- Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.
- Materials and Finishes
- Plug, receptacle, connector and mounting box housings: copperfree (4/10 of 1% max.) aluminum with epoxy powder coat finish. Fiberglass reinforced polyester insulating blocks with natural finish
