Description

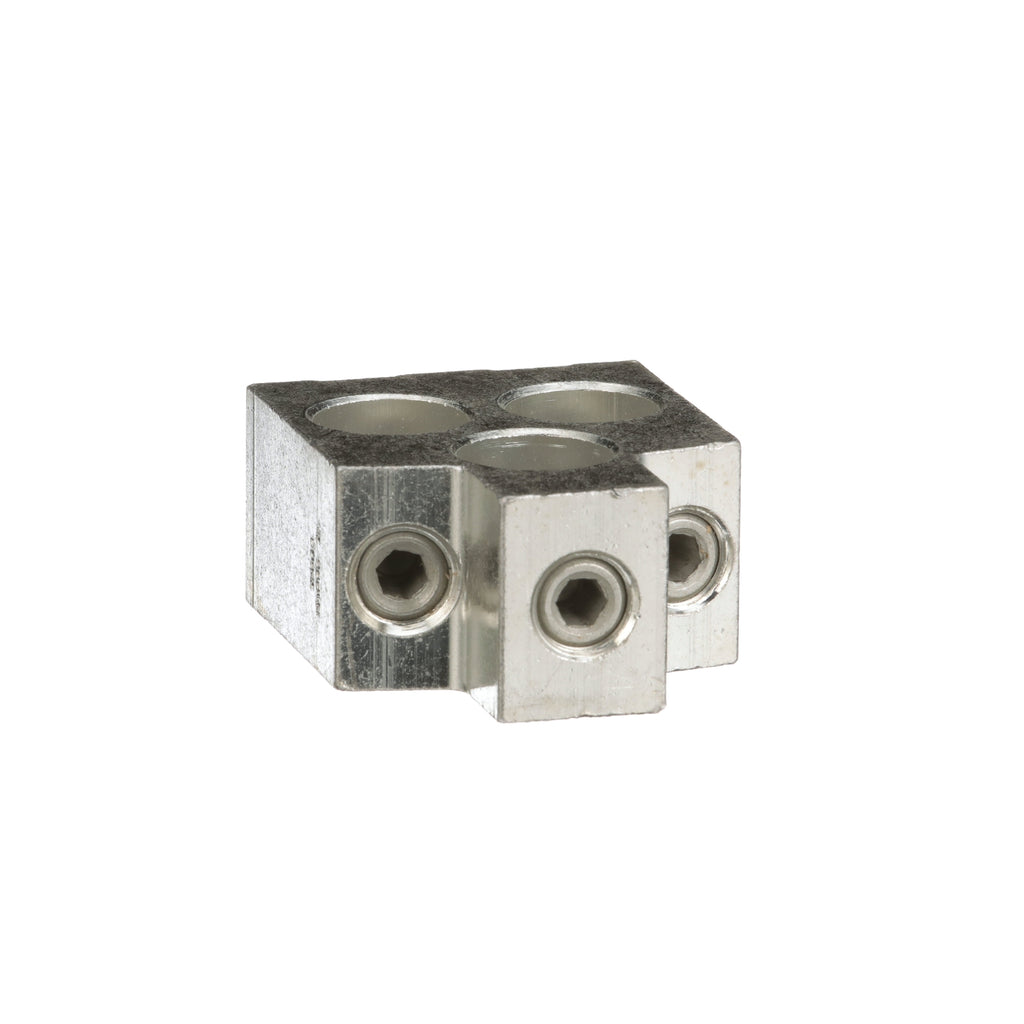

AL900MA - Schneider Electric - Square D Mechanical Lug Terminal Kit
Square D molded case circuit breakers MA family used in industrial enclosures, panelboards, switchboards, busway plug-in units, combination starters, or motor control centers. This connector accessory is designed to be used with MA, MH circuit breakers with fixed thermal and adjustable AC magnetic trip units. with sensor rating of 300A to 1000A and for ME, MX breakers with current rating of 300A to 800A. Terminal wire range is 3 wires that are rated 3/0 AWG - 500 kcmil that can be aluminium or copper. Connector accessory supplied as 1 lug per kit.
GENERAL SPECIFICATION
| Complementary | |
| Tightening torque | 300.9 lbf.in (34 N.m) 0.1…0.6 in² (95…400 mm²) (AWG 3/0...750 kcmil) |
| Ordering and shipping details | |
| Category | US10DE201078 |
| Discount Schedule | 0DE2 |
| GTIN | 785901368755 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.900 in (7.366 cm) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-MFrame-Molded-Case-Circuit-Breakers_AL900MA
