Description

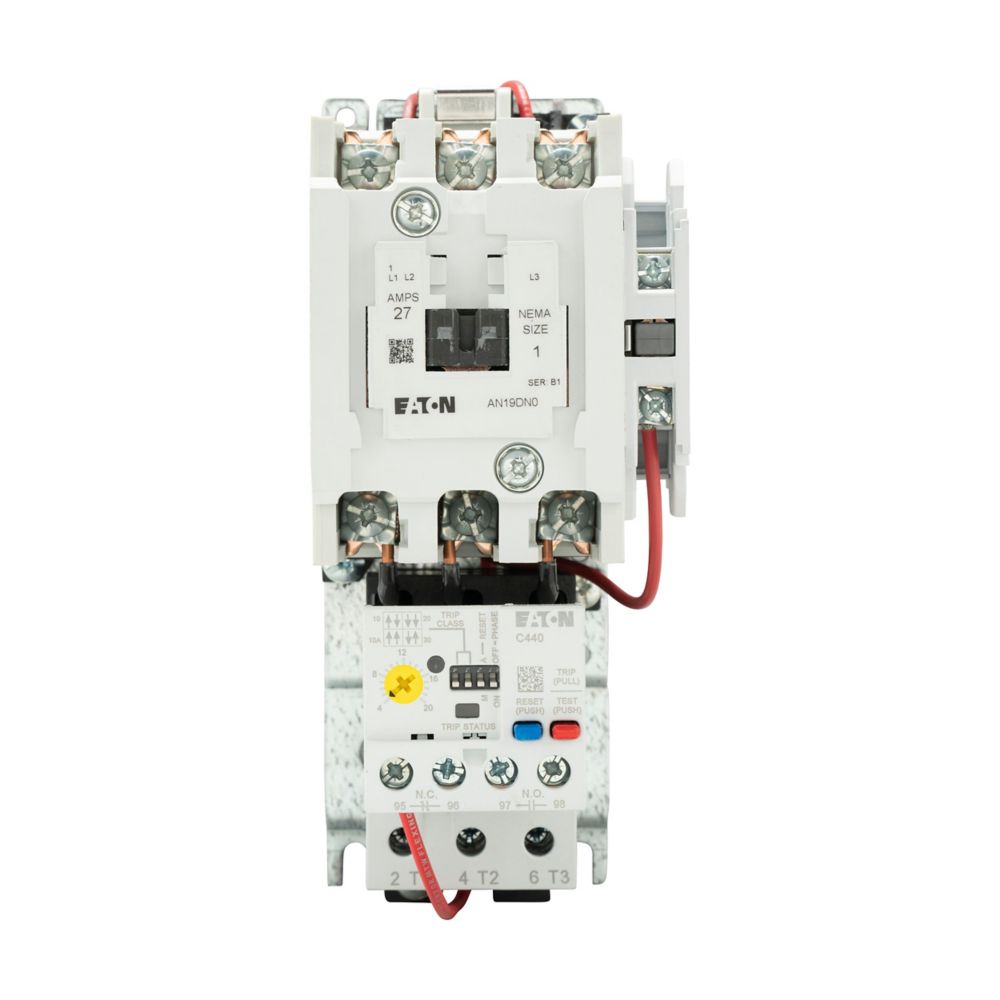

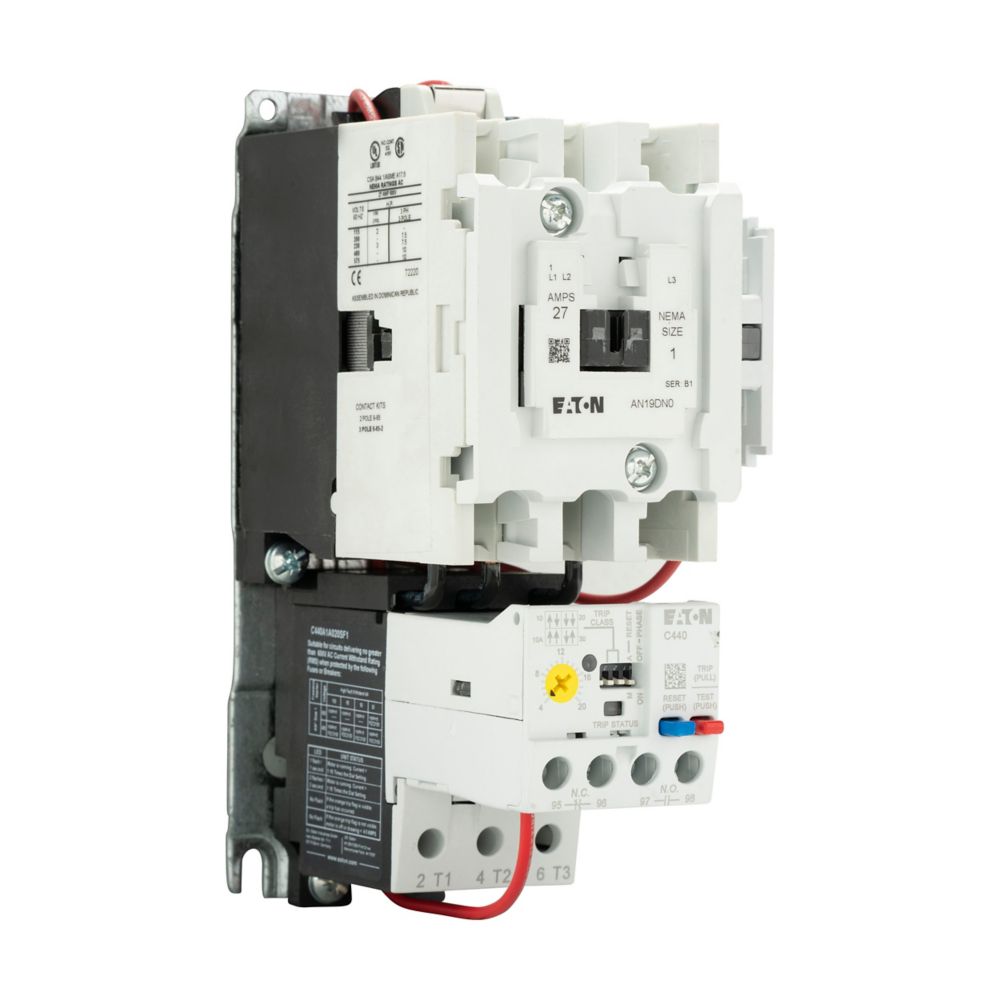

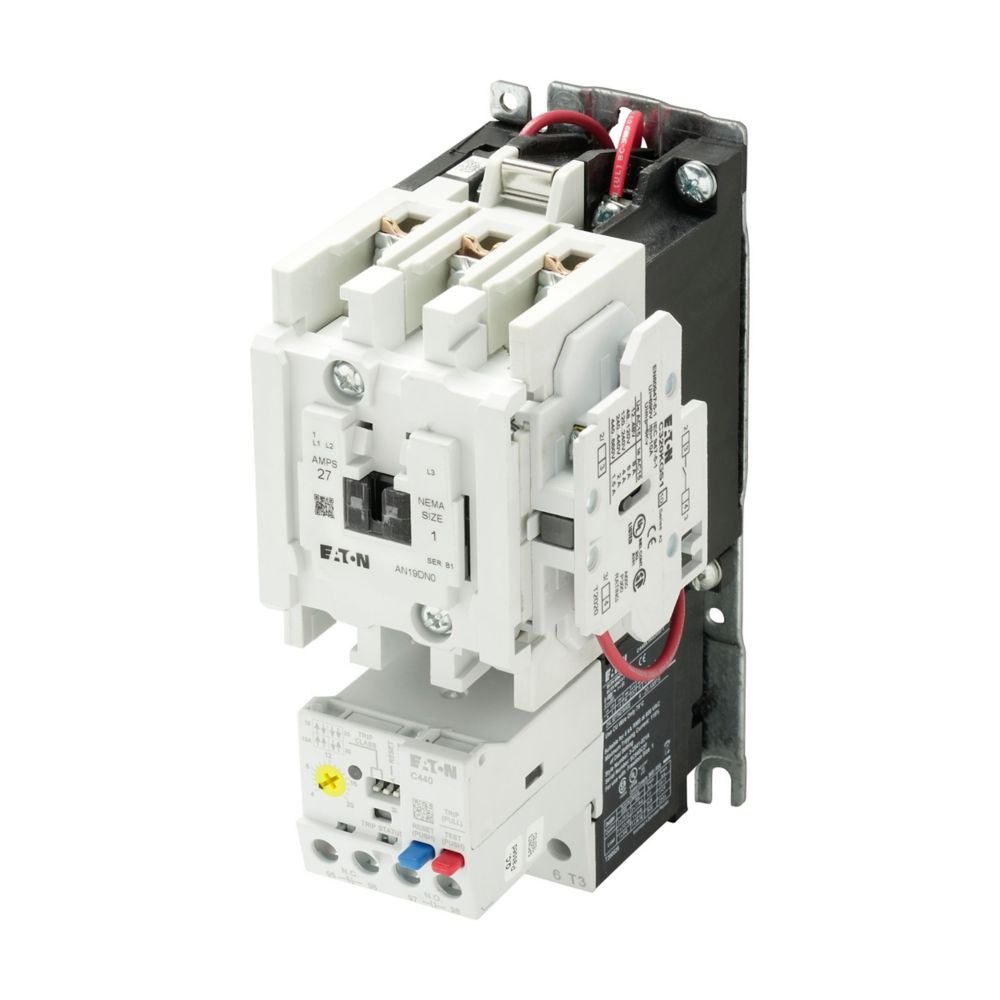

AN19DN0A5E020 - Eaton Cutler Hammer - 27A Freedom NEMA Motor Control Starter
Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 1 open enclosure - 27 A, Horizontal mounting, 120/60 or 110/50 coil voltage, C440 standard feature set - 4–20 A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA motor control starter
|
| Catalog Number |
AN19DN0A5E020
|
| UPC |
786685417660
|
| Product Length/Depth |
4.98 in
|
| Product Height |
7.1 in
|
| Product Width |
2.6 in
|
| Product Weight |
3.92 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
UL
CSA CE NEMA |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 1
|
| Relay |
C440 electronic
|
| Type |
Starter
|
| Special features |
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
|
| Configuration |
Non-reversing
|
| Amperage Rating |
27 A
|
| Size |
1
|
| Mounting |
Horizontal
|
| Overload relay |
C440 electronic
|
| Coil voltage |
120/60 or 110/50
|
