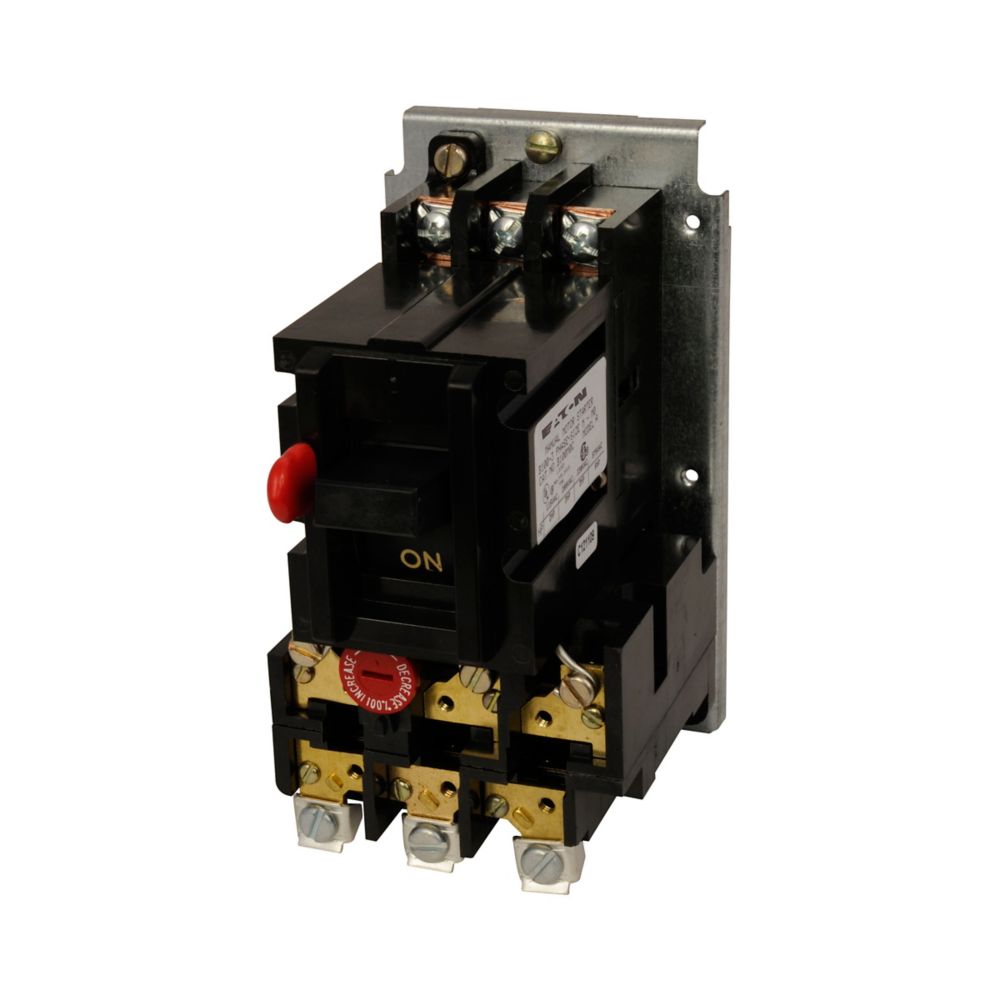

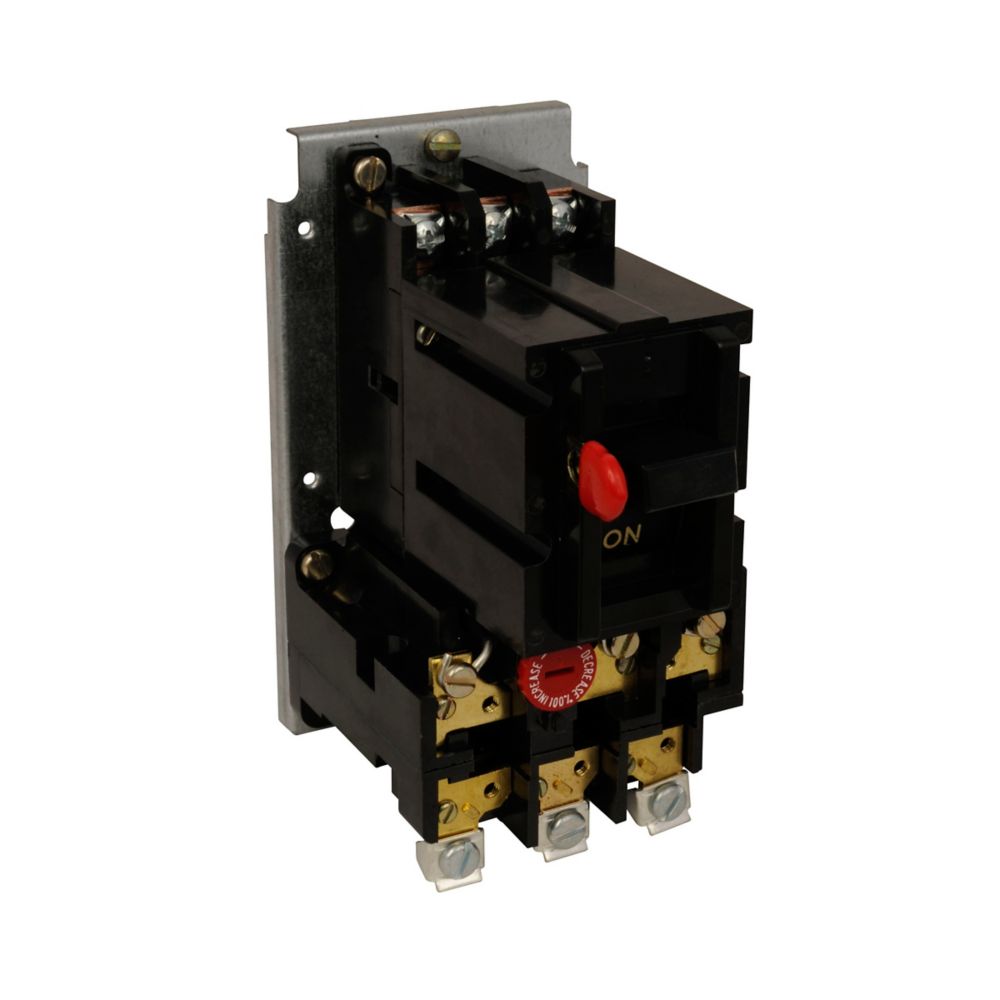

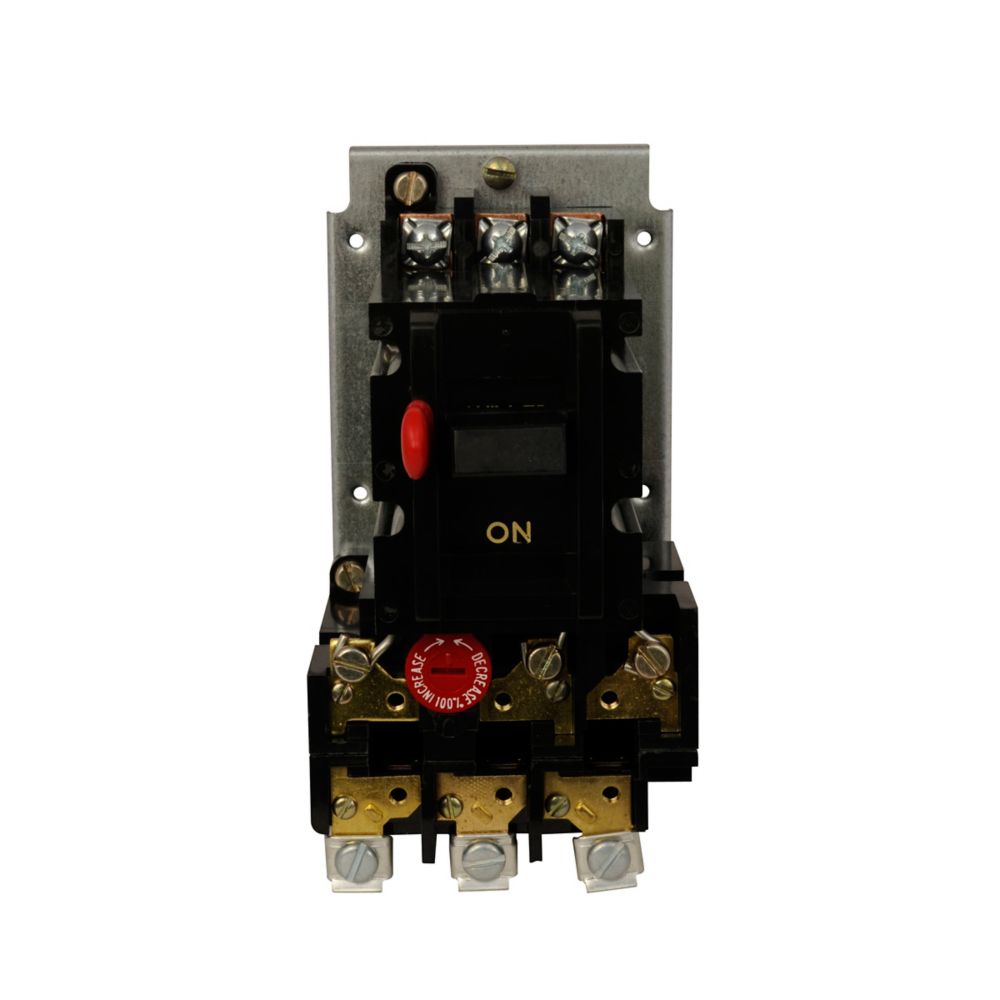

B100M0CA - Eaton Cutler Hammer - 9-45A NEMA Starter
The Eaton B100M0CA is a compact, three-pole manual motor starter (non-reversing) suited for NEMA Size 00 or 1C applications, offering a bi-metal overload relay and pushbutton control. It’s rated for up to 26.8 A and supports motor loads around 5 HP (at 600 VAC), providing manual reset and overload protection in a streamlined form factor.
GENERAL SPECIFICATIONS
| Product Name |
Eaton NEMA starter
|
| Catalog Number |
B100M0CA
|
| UPC |
782114107676
|
| Product Length/Depth |
5.5 in
|
| Product Height |
6.3 in
|
| Product Width |
1.77 in
|
| Product Weight |
1.12 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Heaters not included, Takes FH style heaters
|
| Global Catalog |
B100M0CA
|
| Product Type |
Starter
|
PRODUCT SPECIFICATIONS
| Number of poles |
Three-pole
|
| Special features |
Pushbutton operator
|
| Type |
B100
|
| Operation |
Manual motor starter and protector
|
| Size |
NEMA size 1C
|
