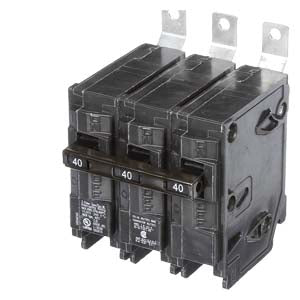

B340 - Siemens - 40 Amp 3-Pole 240 Volt Circuit Breakers
Siemens B340 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240VAC. The B340 has a bolt-on connection type and includes long time and instantaneous trip functions.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2: B340
|
| MFN |
B340
|
| UPC |
783643263734 |
| Commodity Code |
8536200020 |
Pricing related
Delivery related
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Standard delivery time |
15 Day/Days |
| Packaging dimensions (L x W x H) |
2.56 x 3.00 x 3.12 inch
|
| Net weight |
0.948 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
No |
| Compliance with the substance restrictions according to RoHS directive |
not available |
| SCIP Number |
not available |
Siemens specific
| Product Group |
5201 |
| Catalog ID |
LV10.1 |
| Group Code |
P320 |
| Country of origin |
Mexico |
| Returnable Status |
Yes |
PRODUCT DATASHEET
B340
