Description

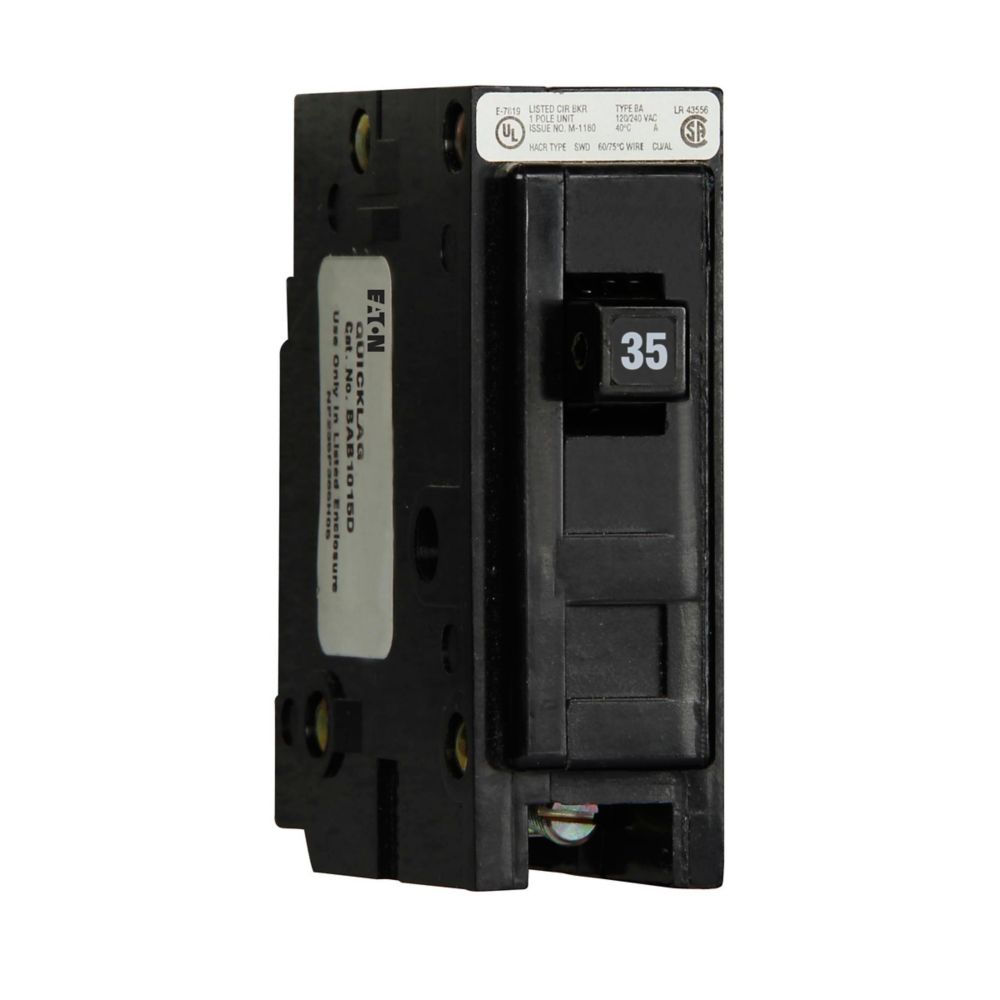

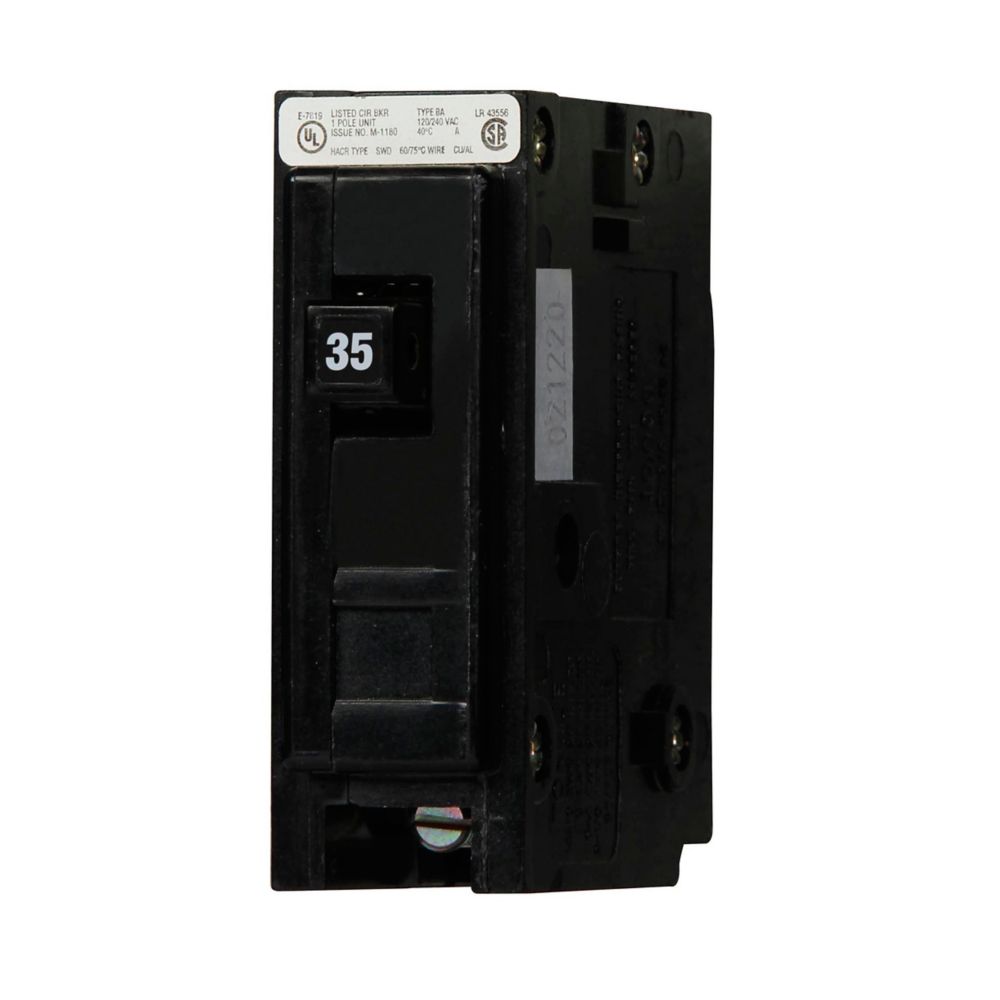

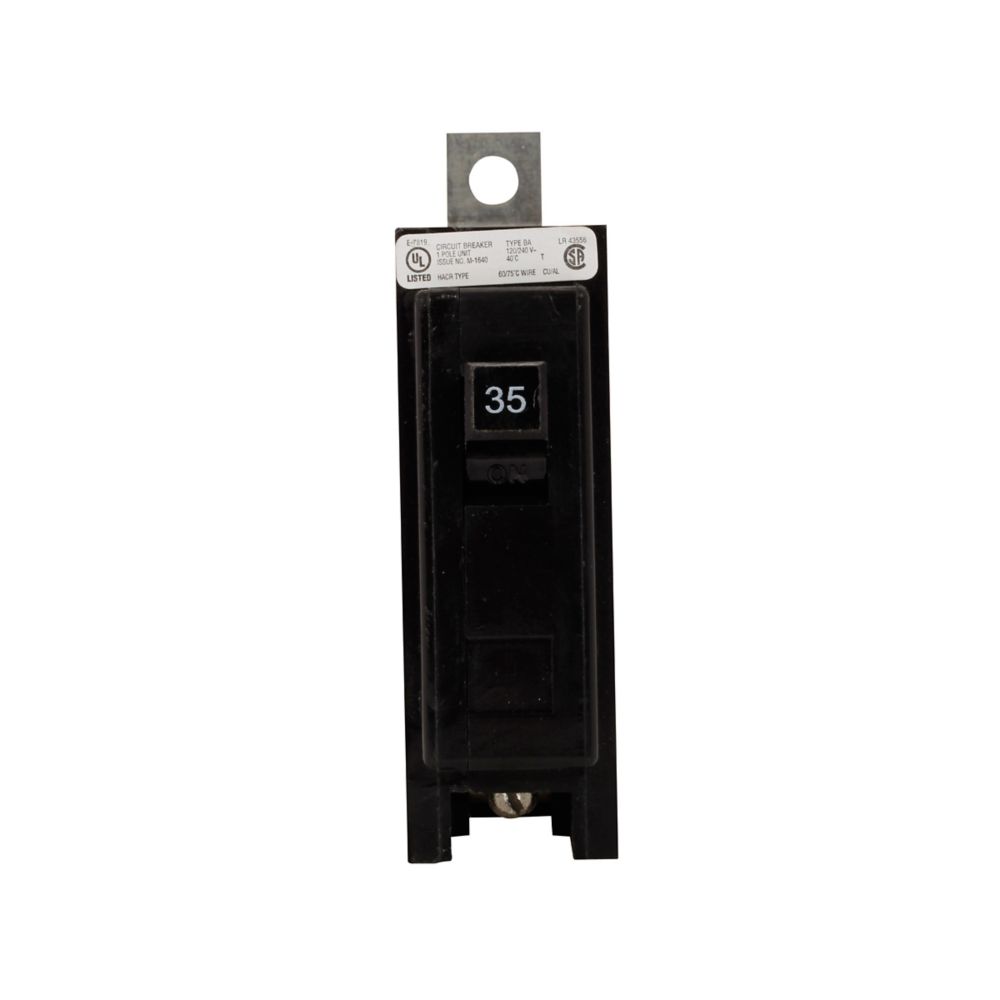

BAB1035 - Eaton Cutler Hammer - 35A 120/240V Single-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB1035 is a single-pole, 35 A Quicklag thermal–magnetic circuit breaker offering a 10 kA interrupt rating at 120/240 V. It features a bolt-on mounting mechanism and is UL and CSA certified, providing reliable protection for panelboards. Compact and efficient, it's also HACR-rated for HVAC applications where rugged reliability matters.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB1035
|
| UPC |
786679301357
|
| Product Length/Depth |
3.8 in
|
| Product Height |
4.8 in
|
| Product Width |
1.2 in
|
| Product Weight |
0.35 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
35 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLNEOUS
| Quantity |
7
|
PRODUCT DATASHEET
