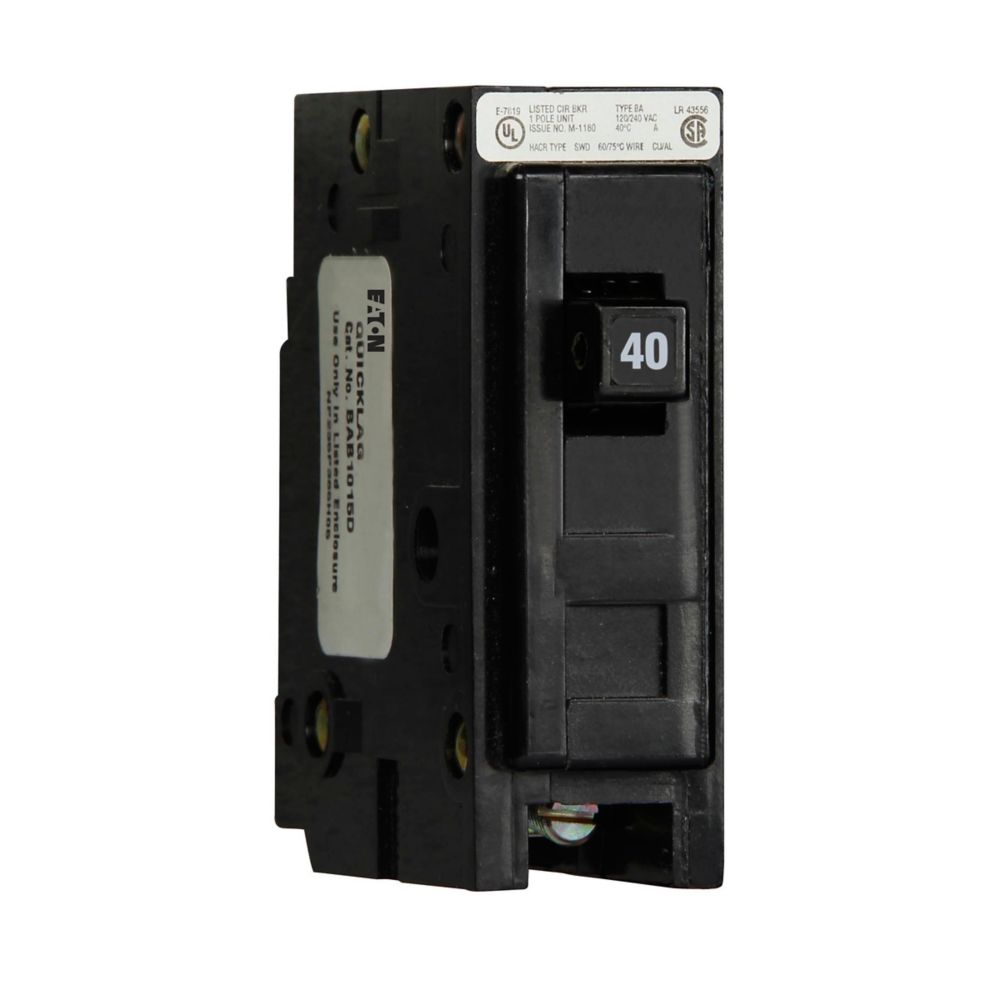

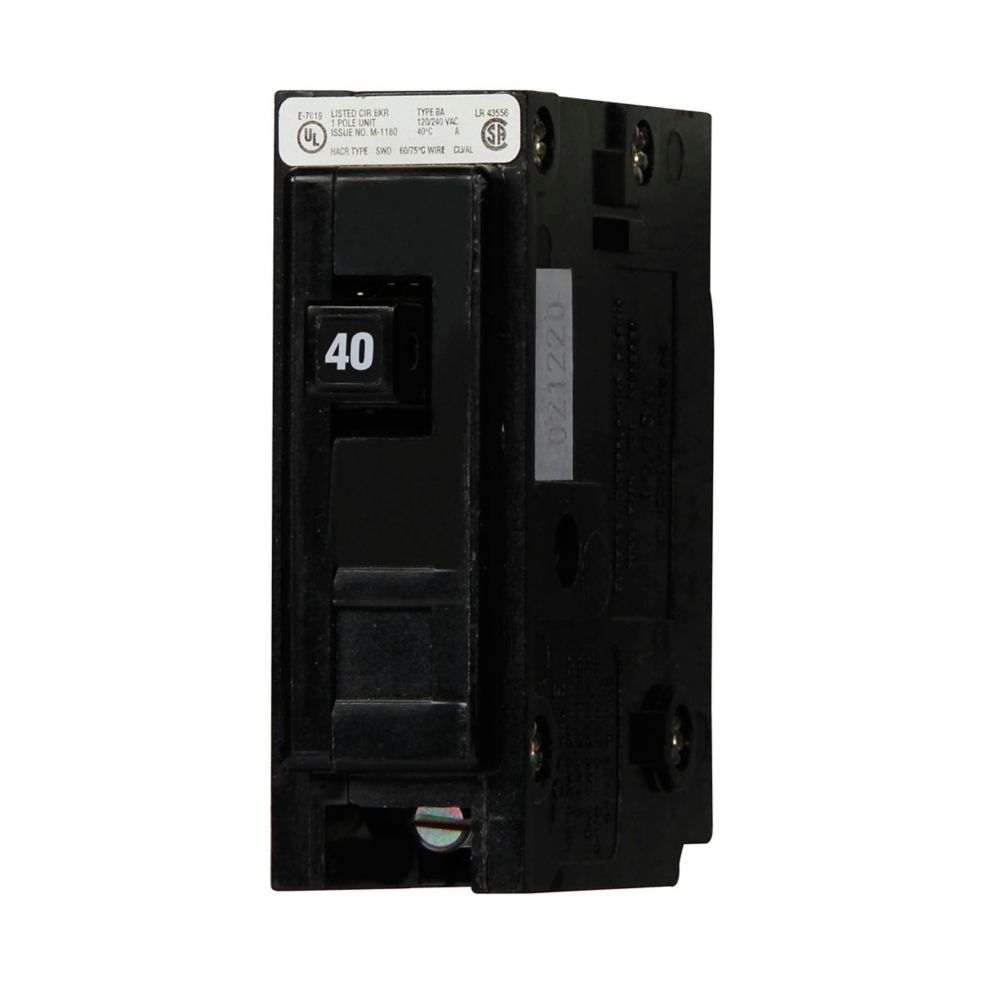

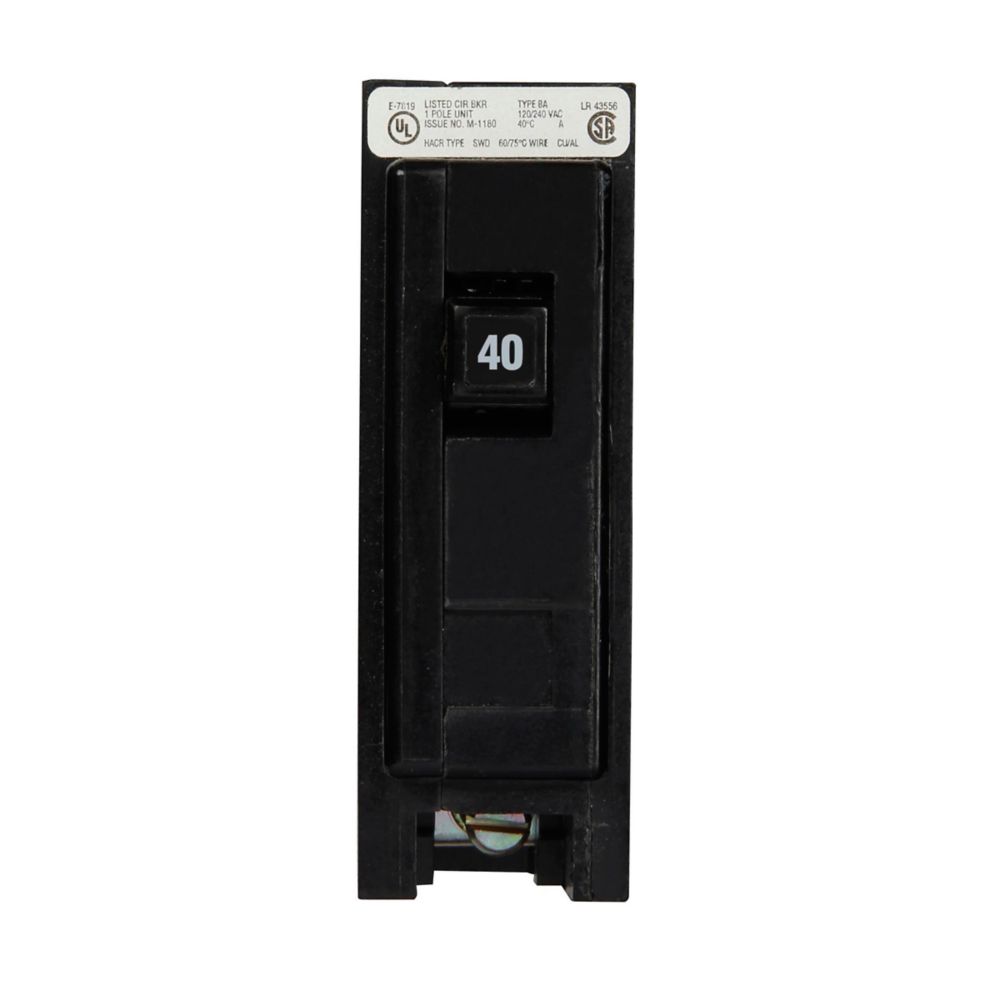

BAB1040 - Eaton Cutler Hammer - 40A 120/240V Single-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB1040 is a 1-pole, 40 A thermal–magnetic Quicklag breaker with a 10 kA interrupt rating (120/240 V), engineered for durability in commercial and light-duty industrial applications. With bolt-on installation, UL/CSA compliance, and enhanced terminal capacity (14–4 AWG), it’s built for efficient panelboard use. Designed for consistent performance in demanding environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB1040
|
| UPC |
786679301401
|
| Product Length/Depth |
3.6 in
|
| Product Height |
4.8 in
|
| Product Width |
1.2 in
|
| Product Weight |
0.3 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
40 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLNEOUS
| Quantity |
7
|
