Description

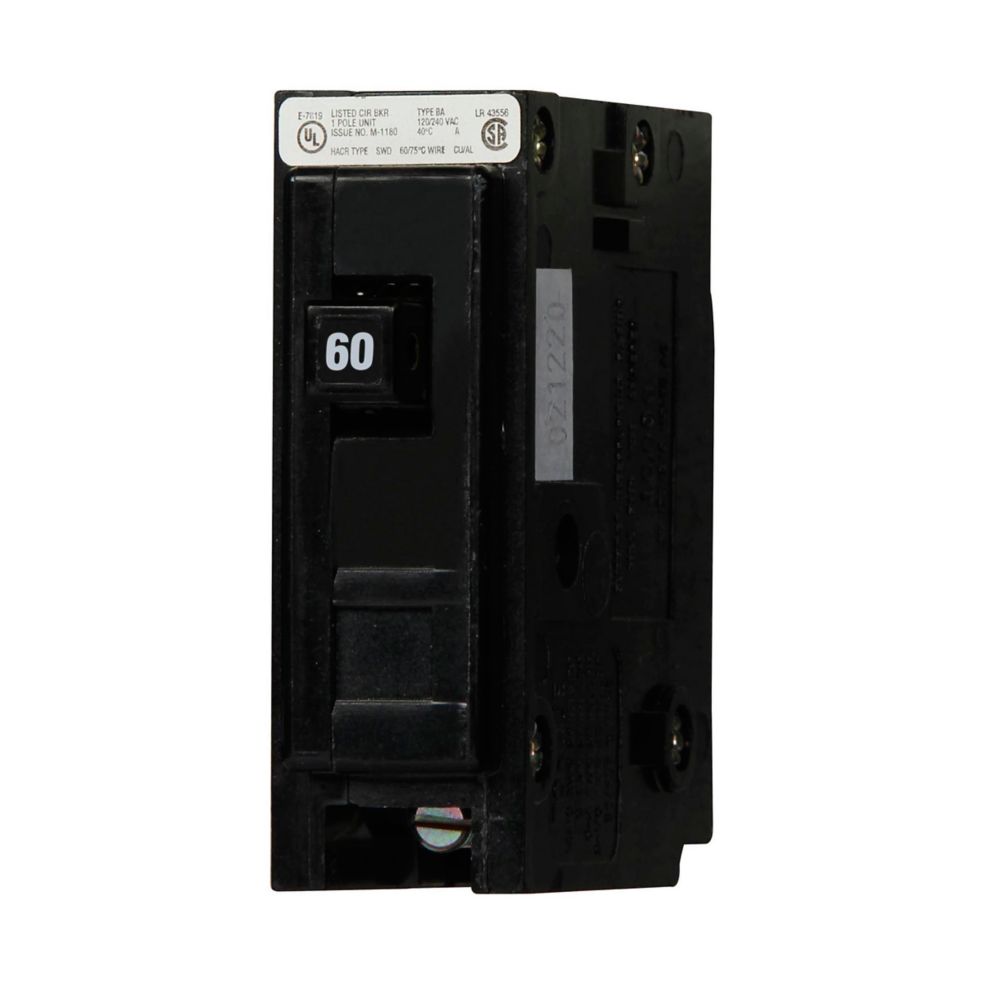

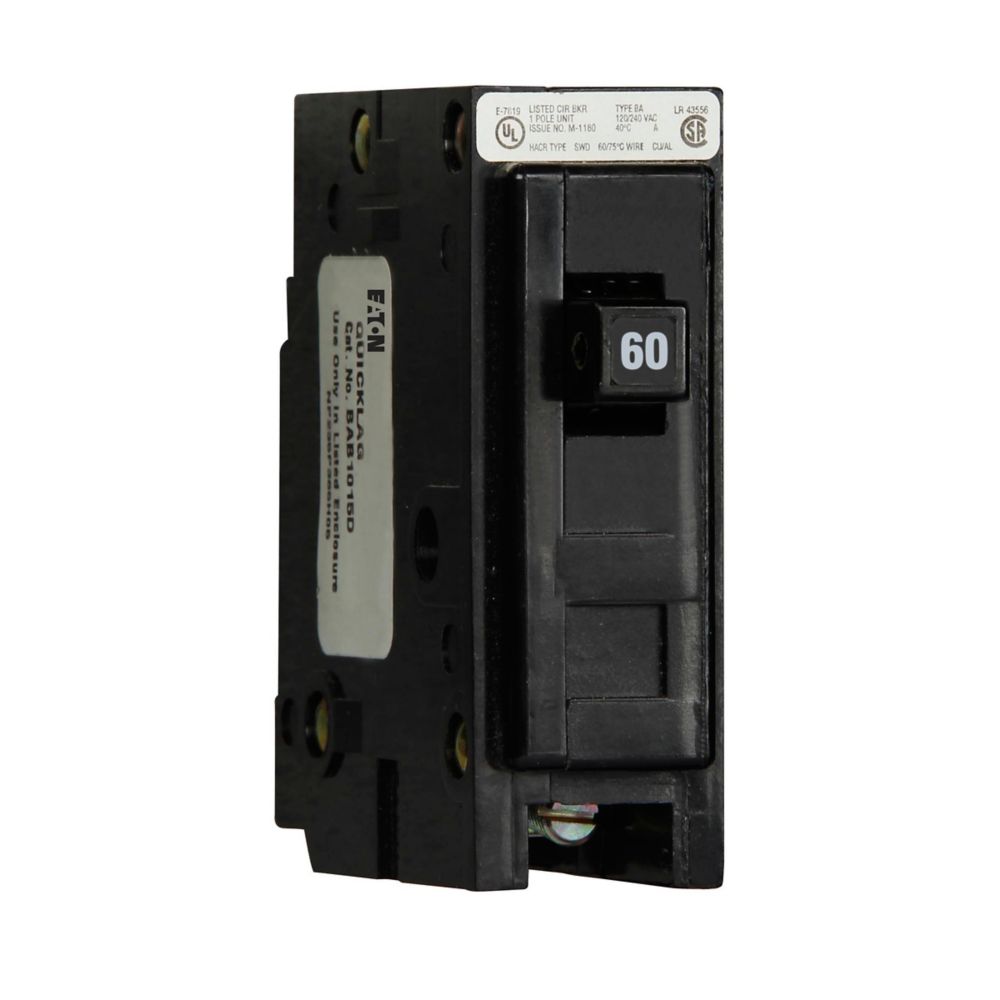

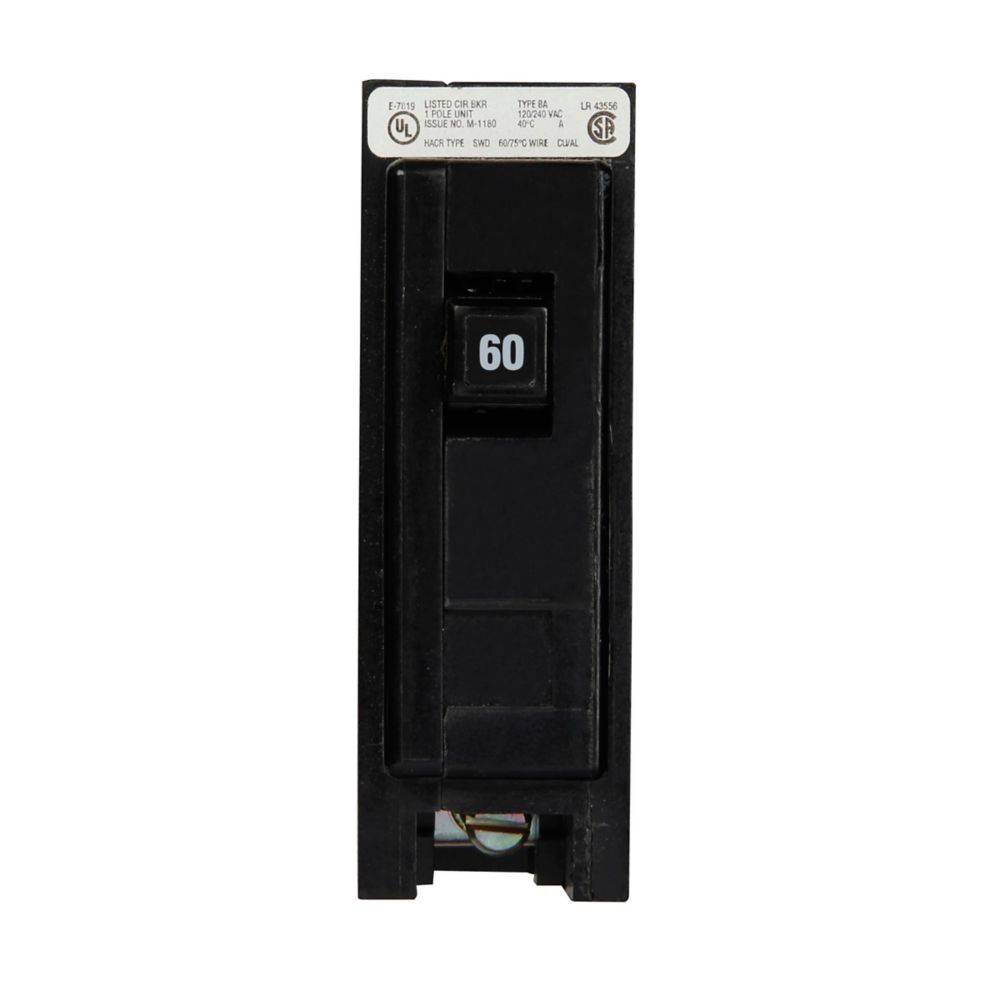

BAB1060 - Eaton Cutler Hammer - 60A 120/240V Single-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB1060 is a bolt-on single-pole Quicklag thermal–magnetic circuit breaker rated at 60 A with a 10 kA interrupt capacity (120/240 V). Featuring extended tang line terminals and UL/CSA approvals, it supports larger wire capacities (8 to 1/0 AWG) and is ideal for heavy-duty industrial panels. It delivers premium protection and rugged reliability where higher amperage is required.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB1060
|
| UPC |
786679301609
|
| Product Length/Depth |
3.7 in
|
| Product Height |
4.6 in
|
| Product Width |
1.2 in
|
| Product Weight |
0.35 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
60 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLNEOUS
| Quantity |
7
|
PRODUCT DATASHEET
