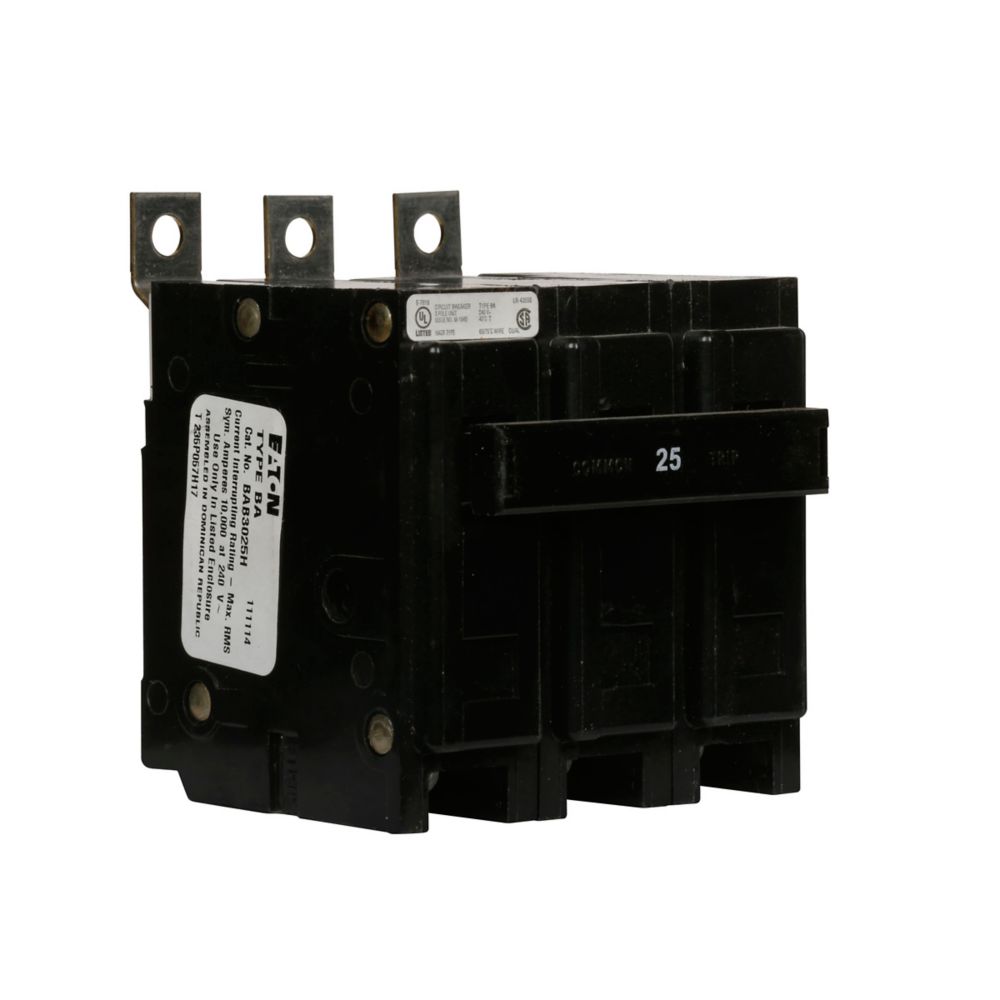

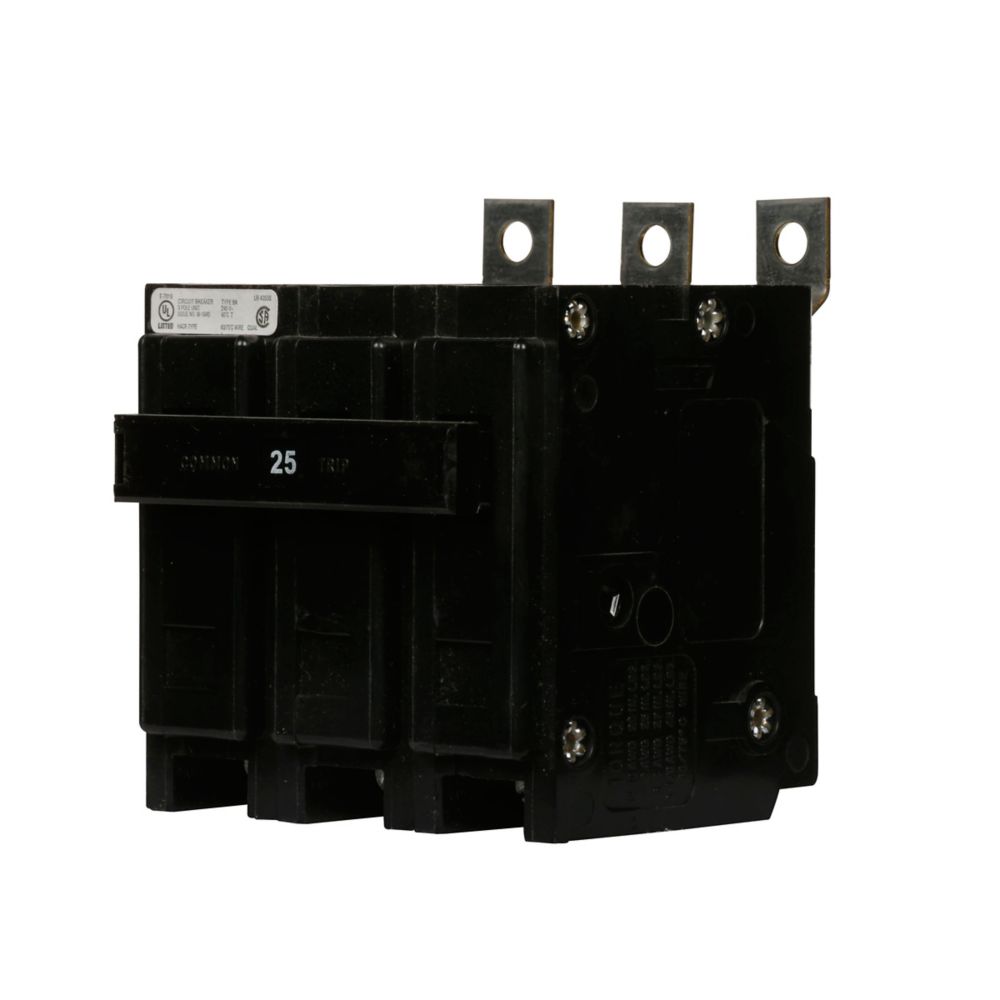

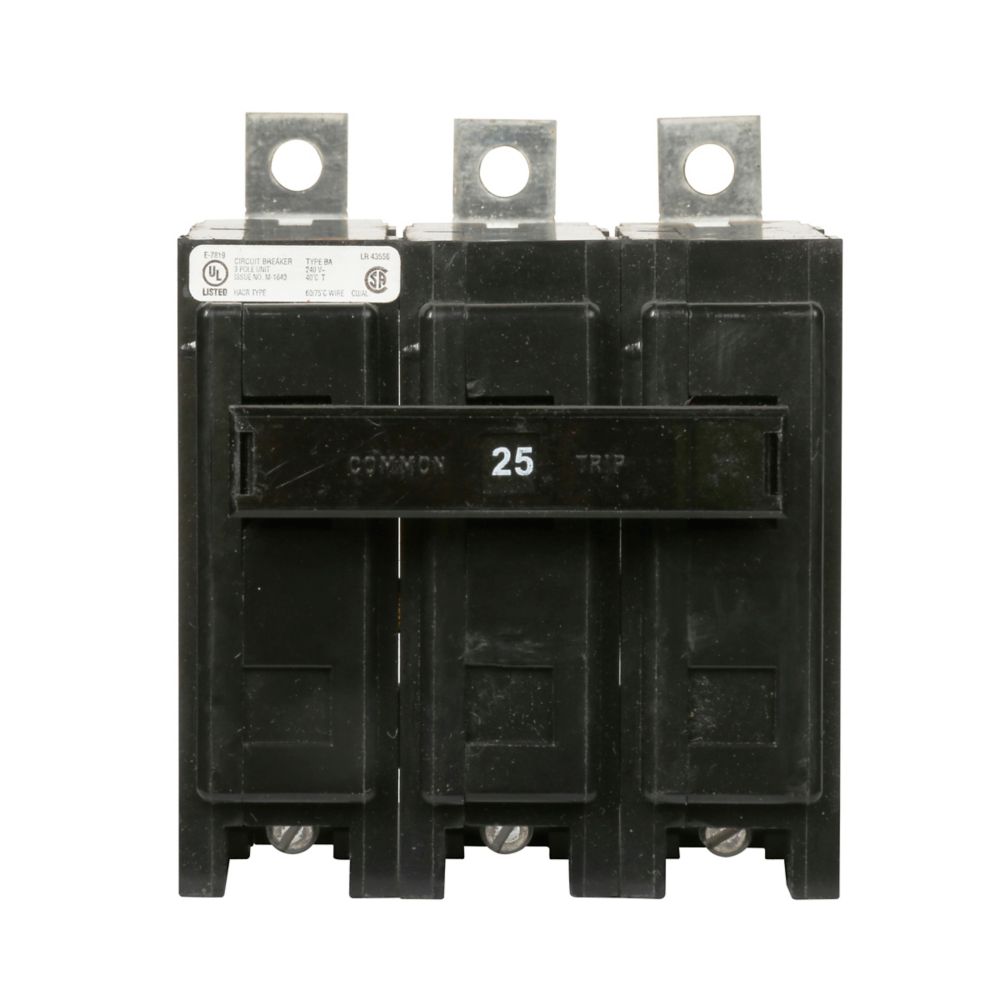

BAB3025H - Eaton Cutler Hammer - 25A 240 V Three-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB3025H is a three-pole Quicklag thermal-magnetic breaker rated at 25 A for 240 V systems, with a 10 kA interrupt rating and bolt-on mounting. It offers rugged protection for three-phase panelboards and machinery. Eaton’s standard quality and easy installation make it a practical industrial solution.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB3025H
|
| UPC |
786679303252
|
| Product Length/Depth |
3.5 in
|
| Product Height |
3 in
|
| Product Width |
3.2 in
|
| Product Weight |
0.9 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Number of poles |
Three-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
25 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
240 V - 240 V
|
MISCELLANEOUS
| Special features |
Bolt-on mounting
|
