Description

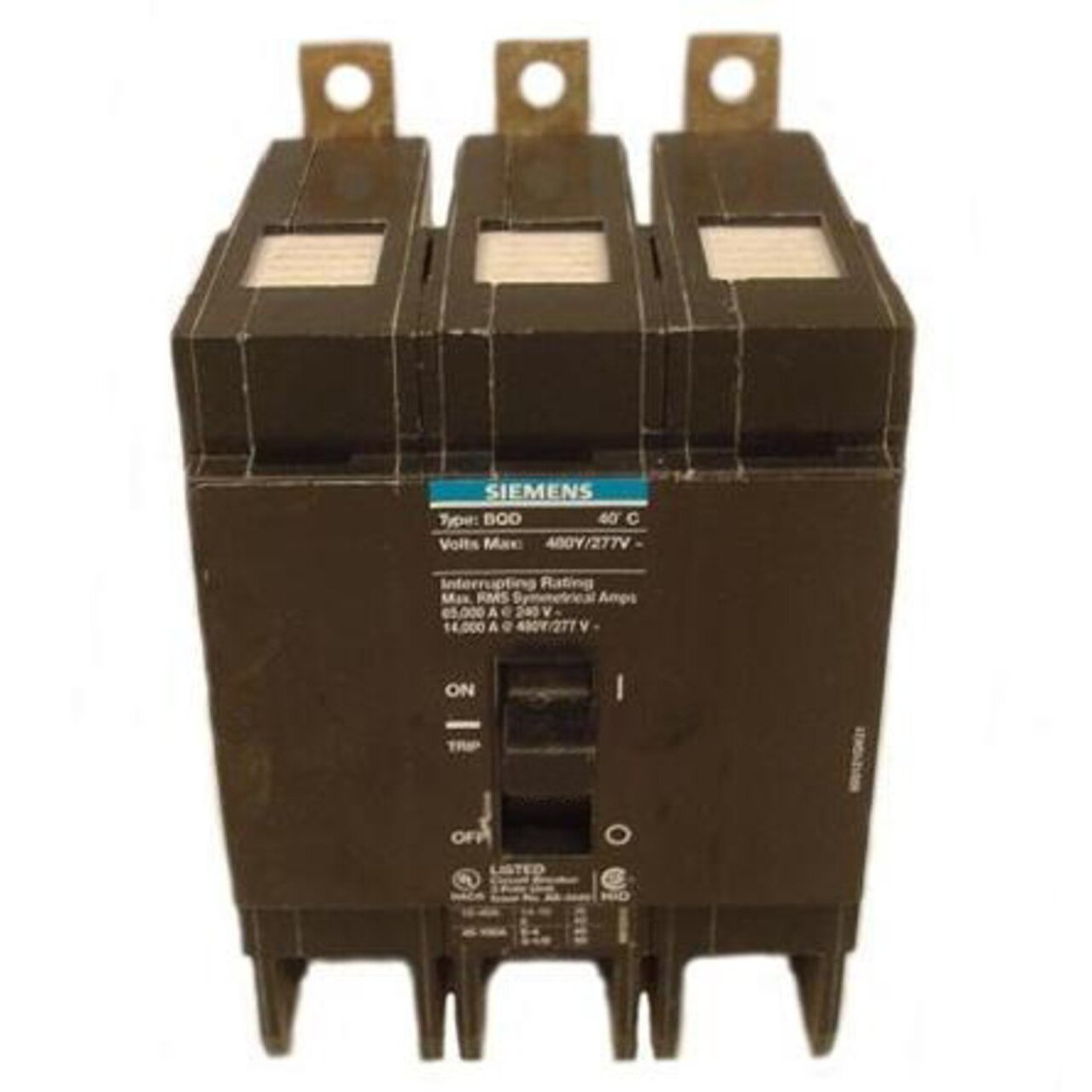

BQD370 - Siemens - 70 Amp 3-Pole 480 Volt Circuit Breakers
Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 480V Circuit Breakers - 3-pole, TM - BQD, 14KAIC, 480/277VAC are Circuit Protection Molded Case Circuit Breakers. Type: BQD Features: PANELBOARD MOUNT Application: CONSTRUCTION Std: UL 489 CSA-C22.2 V. Rating: 480/277V A. Rating: 70A F. Rating: 50/60HZ Frame: 100A Trip Type: THERMAL MAGNETIC TRIP UNIT Interrupt Rating: 14KA No. Of Poles: 3P Connection: LOW TAB Material: MOLDED CASE CIRCUIT BREAKER L: 5 W: 3
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:BQD370 |
| MFN | BQD370 |
| UPC | 783643277434 |
| Commodity Code | 8536200020 |
Pricing related
| Price Group | NLA |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 0.580 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 07/01/2006 |
| SCIP Number | not available |
Siemens specific
| Product Group | 5361 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
