Description

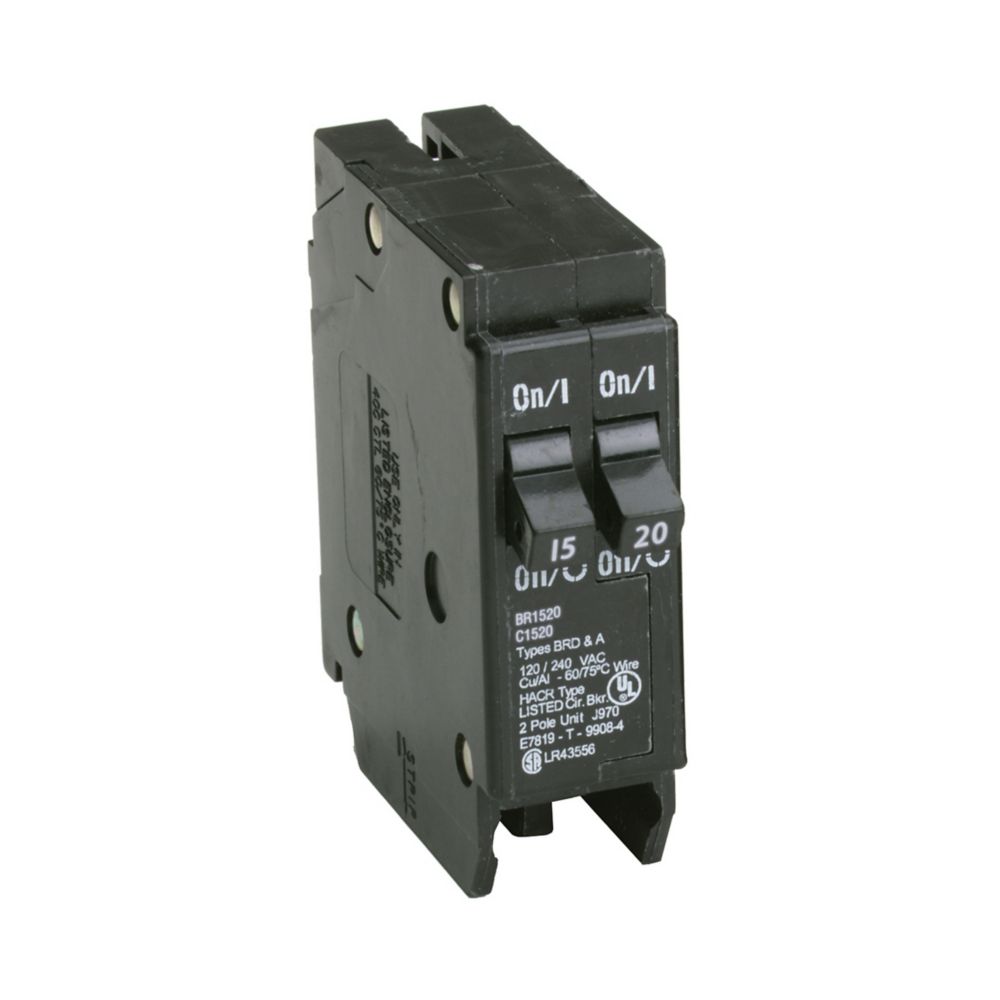

BR1520 - Eaton Cutler Hammer - 15-20 A 120/240V Single-Pole BR Thermal Magnetic Circuit Breakers
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,15-20 A,10 kAIC,Single-pole,120/240V,BR,#14-4 AWG Cu/Al,BR,Type BR Loadcenters.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker
|
| Catalog Number |
BR1520
|
| UPC |
786676370103
|
| Product Length/Depth |
1 in
|
| Product Height |
2.5 in
|
| Product Width |
2.9 in
|
| Product Weight |
0.4 lb
|
| Compliances |
Federal Specifications Classification W-C375
|
| Certifications |
UL 489
|
| Product Type |
Thermal magnetic circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters
|
| Amperage Rating |
(1) 20A, (1) 15A
|
| Voltage rating |
120/240 V
|
| Circuit breaker type |
BR
|
| Mounting Method |
Plug-on
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BR
|
| Wire size |
#14-4 AWG Cu/Al
|
| Number of poles |
Single-pole
|
| Type |
Type BR 1-Inch plug-on circuit breaker
|
PRODUCT DATASHEET
