Description

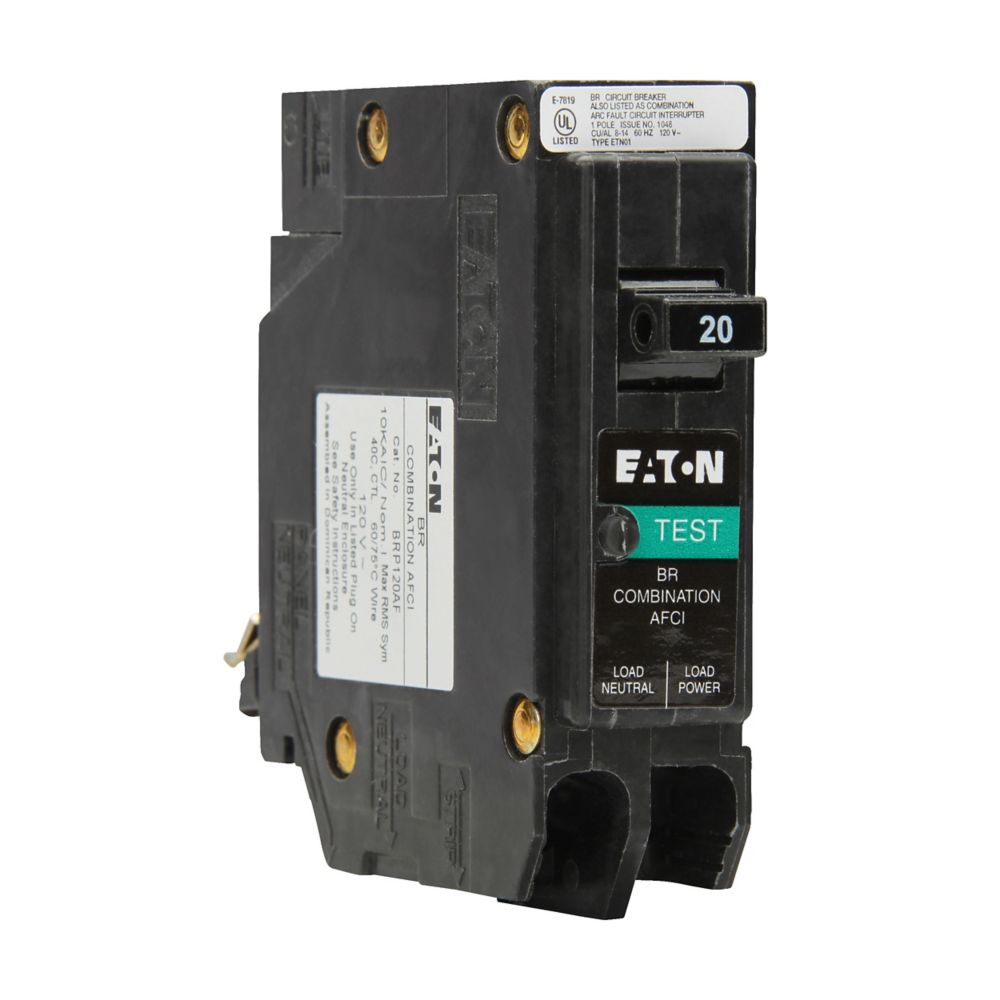

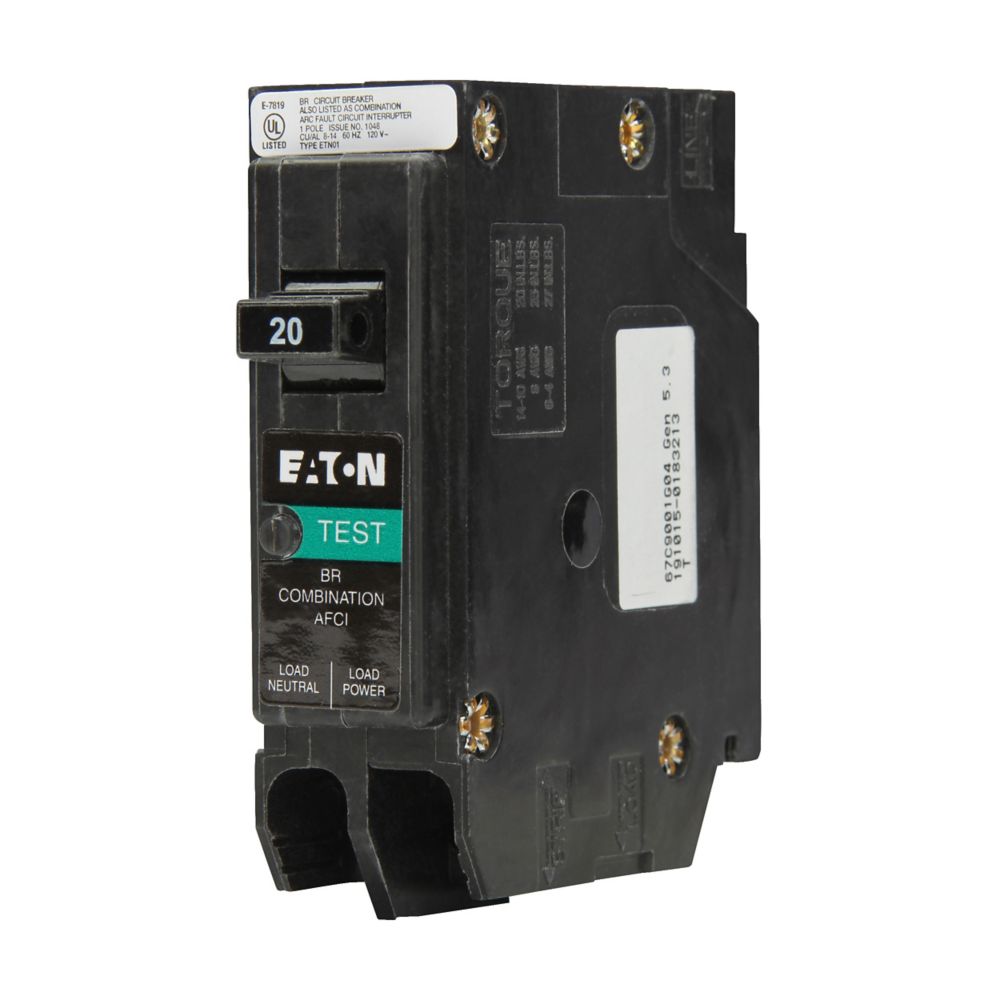

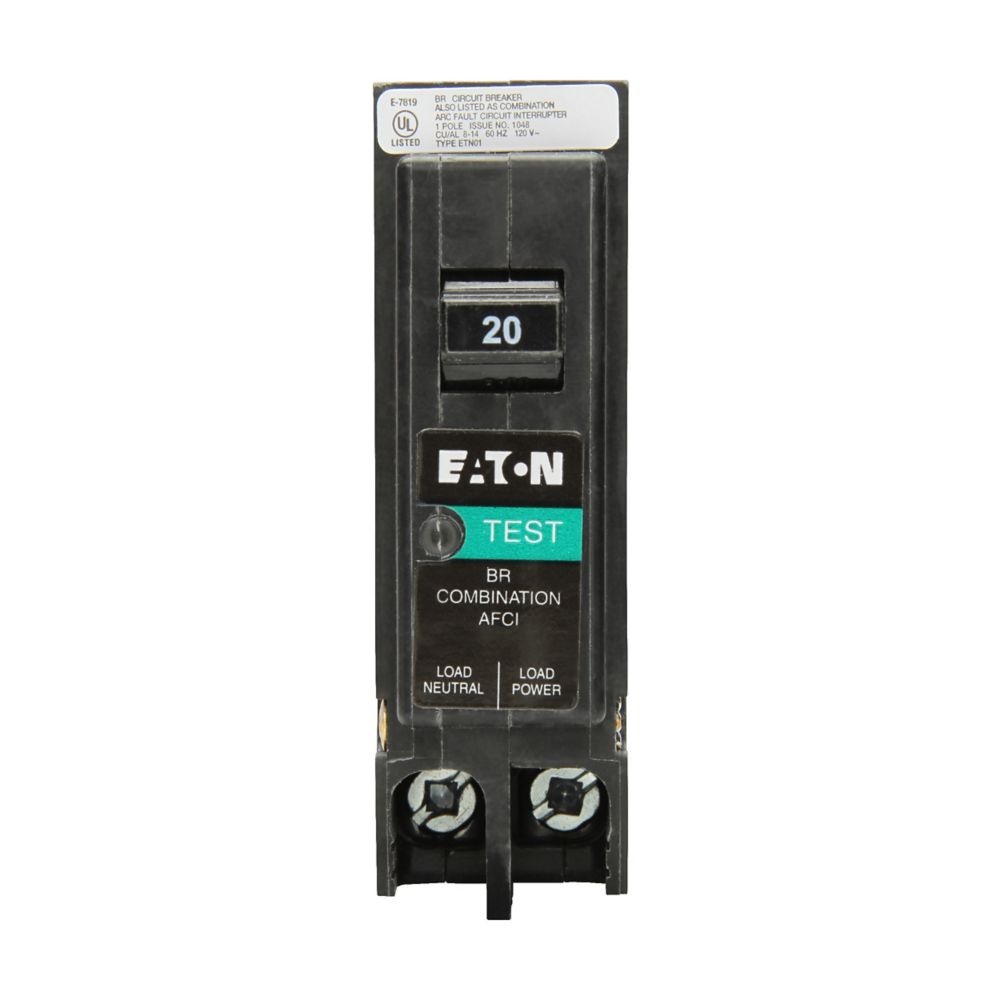

BRP115AF - Eaton Cutler Hammer - 15 A Br Afci Circuit Breakers
Eaton BR AFCI circuit breaker, AFCI Combination circuit breaker, UL only, 15 A, 10 kAIC, Single-pole, 120 V, BR, Plug-on, #14-8 AWG Cu/Al, Type BR Loadcenters, Plug-on neutral
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR AFCI circuit breaker
|
| Catalog Number |
BRP115AF
|
| UPC |
786689041014
|
| Product Length/Depth |
2.56 in
|
| Product Height |
1.1 in
|
| Product Width |
1 in
|
| Product Weight |
0.38 lb
|
| Certifications |
UL Listed
|
| Product Type |
AFCI circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters
|
| Amperage Rating |
15 A
|
| Voltage rating |
120 V
|
| Neutral |
Plug-on neutral
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BR
|
| Connection |
Plug-on
|
| Wire size |
#14-8 AWG Cu/Al
|
| Number of poles |
Single-pole
|
| Type |
AFCI Combination circuit breaker
|
| Special features |
UL only
|
