Description

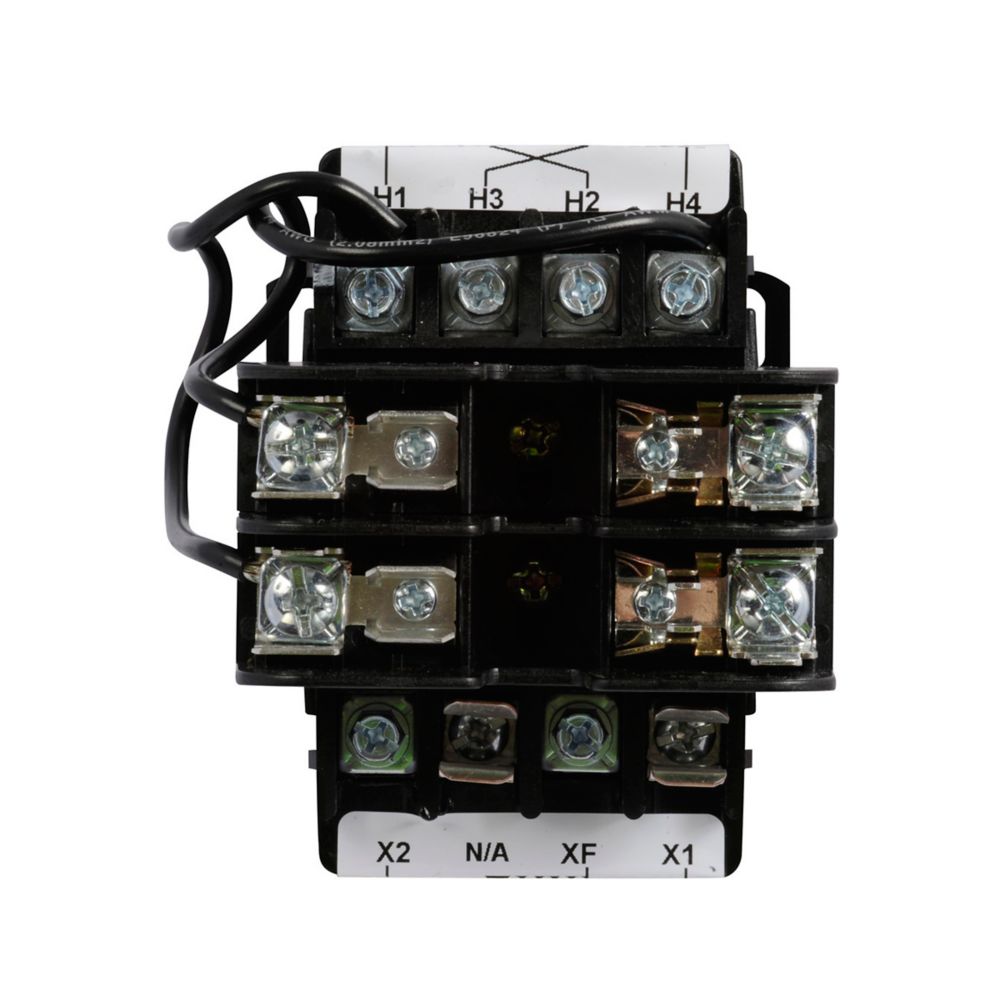

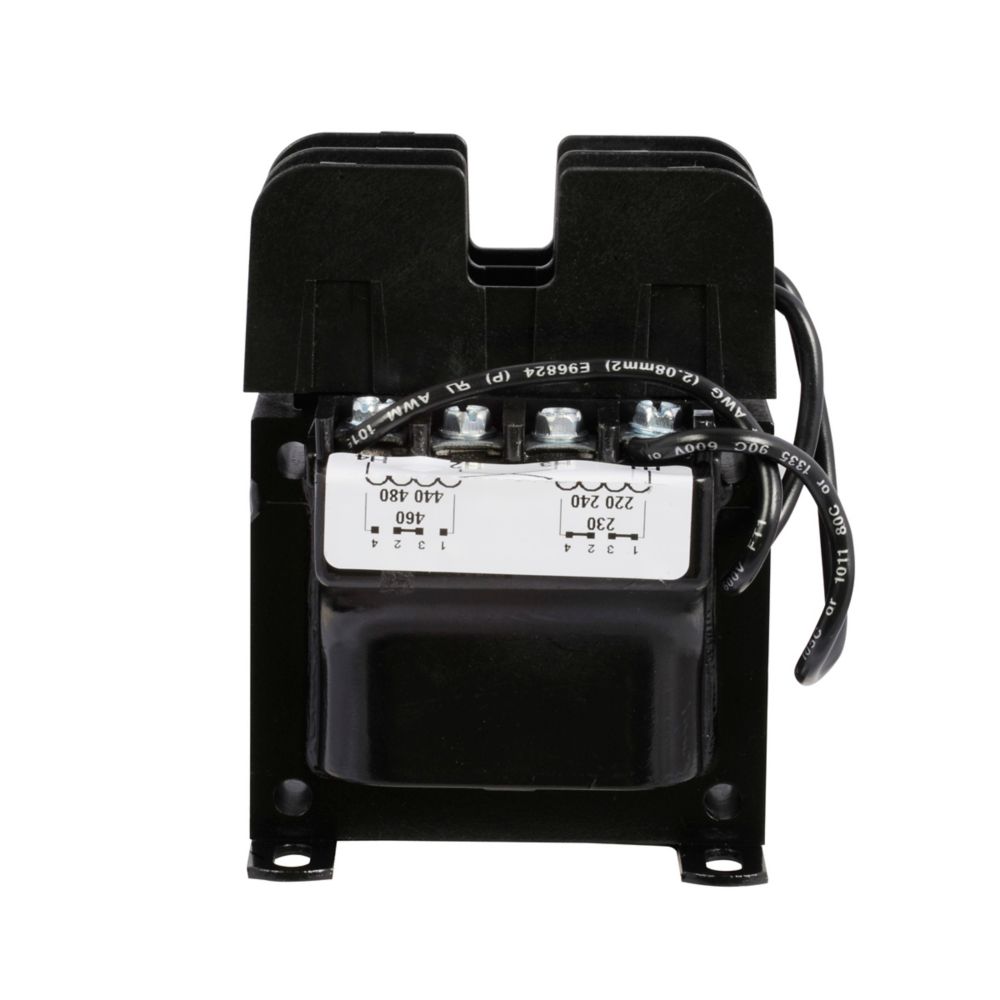

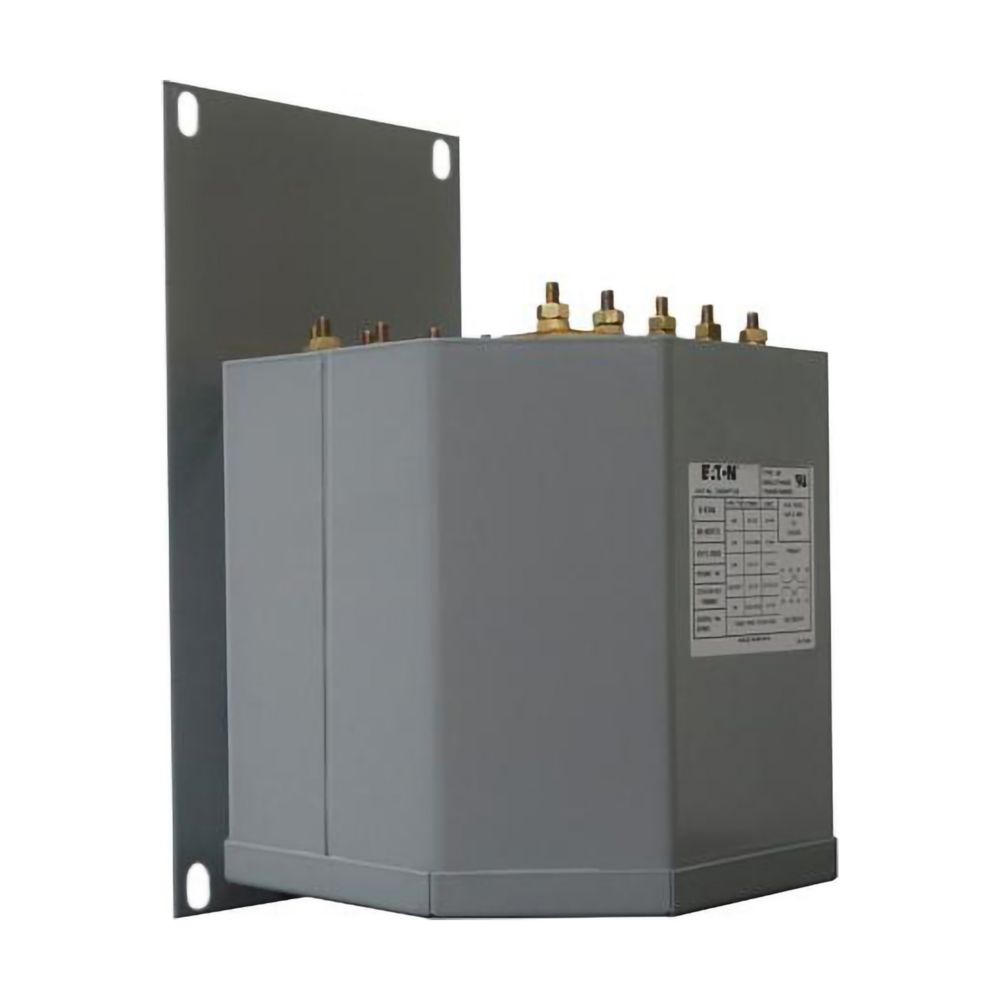

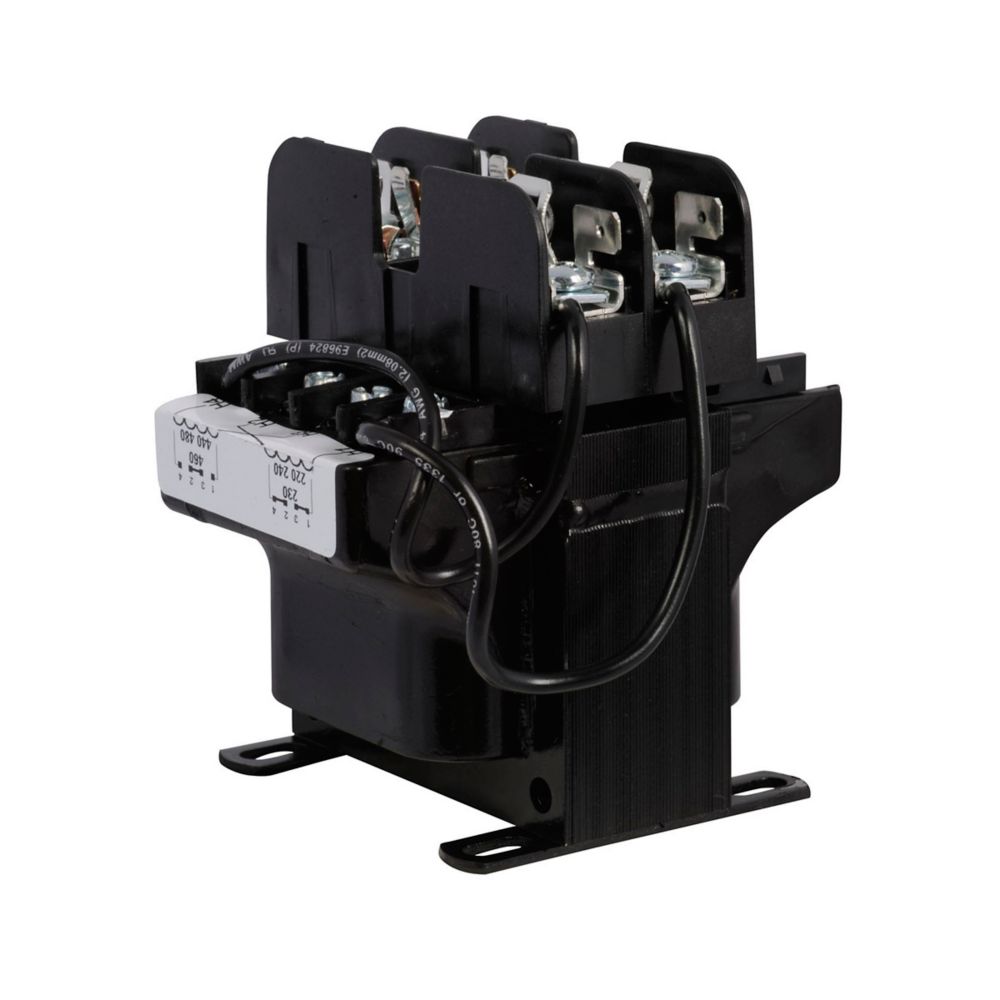

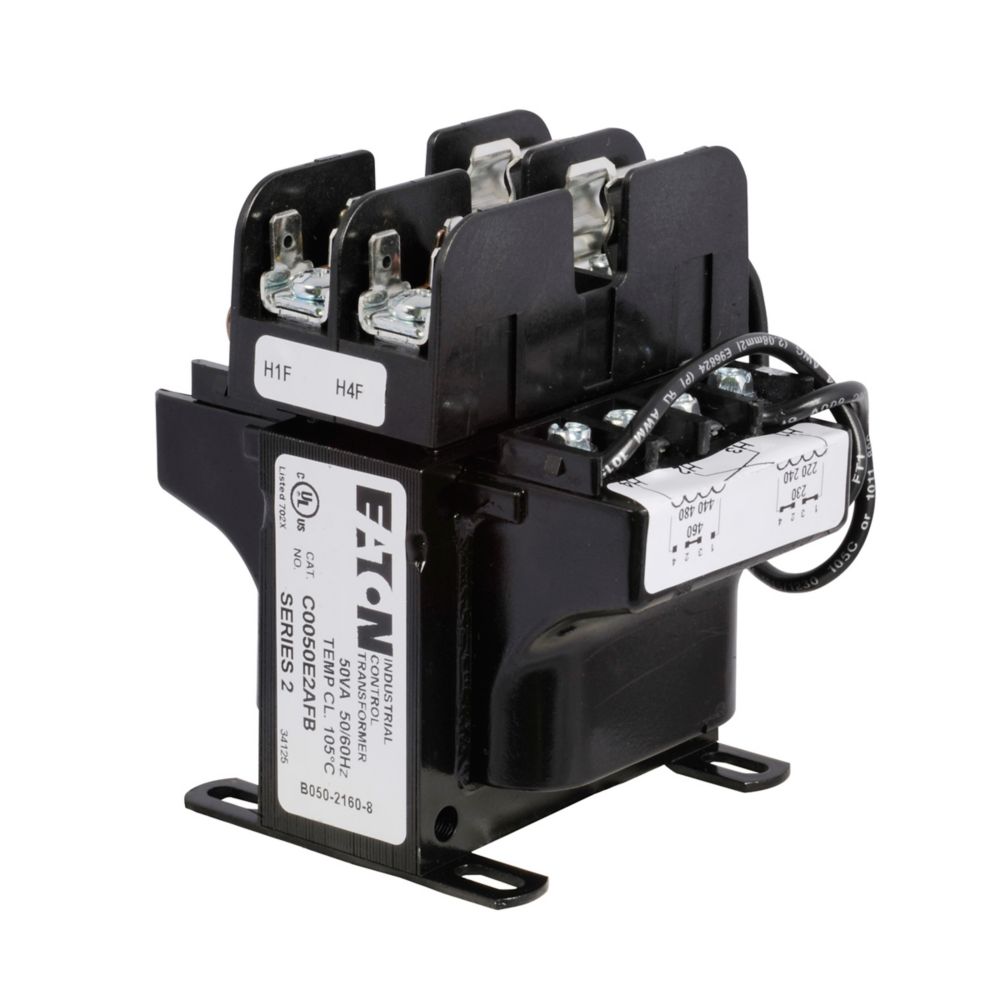

C0150E2AFB - Eaton Cutler Hammer - 240 X 480V Type Mte Industrial Control Transformer
Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, sv: 120/115/110v, 55°c, 150 va
GENERAL SPECIFICATIONS
| Product Name |
Eaton Type MTE industrial control transformer
|
| Catalog Number |
C0150E2AFB
|
| UPC |
786680420863
|
| Product Length/Depth |
3.88 in
|
| Product Height |
4.67 in
|
| Product Width |
3.75 in
|
| Product Weight |
5.3 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
CSA Certified
UL Listed cUL Certified |
| Catalog Notes |
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
|
| Product Type |
Industrial control transformer
|
PHYSICAL ATTRIBUTES
| Coil material |
Copper windings
|
| Design |
MTE
|
| Tap size |
None
|
PERFORMANCE RATINGS
| Primary voltage |
220 x 440 V, 230 x 460 V, 240 x 480 V
|
| Temperature rating |
55°C
|
| Volt ampere rating |
150 VA
|
| Secondary voltage |
120/115/110 V
|
MISCELLANEOUS
| Modification 1 |
Factory-mounted two-pole primary fuse block for non-rejection type fuses
|
| Special features |
Primary fuse block
|
