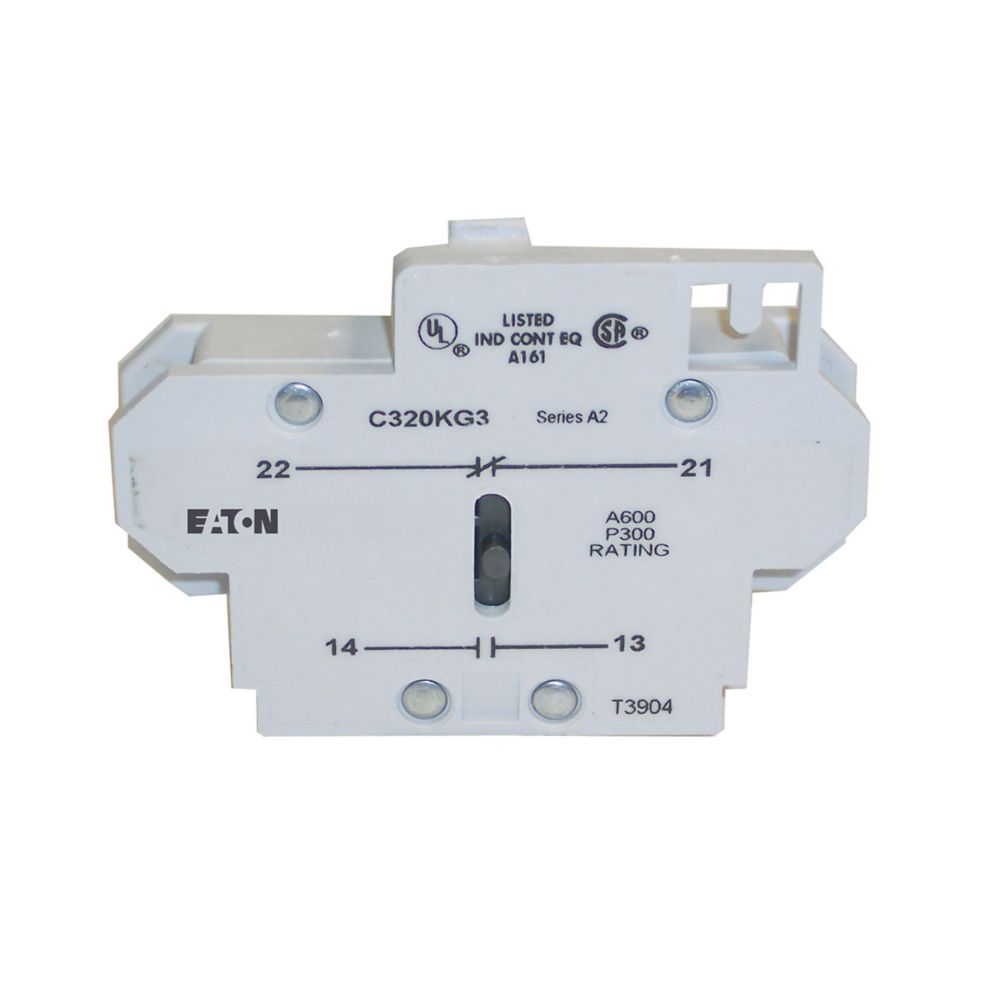

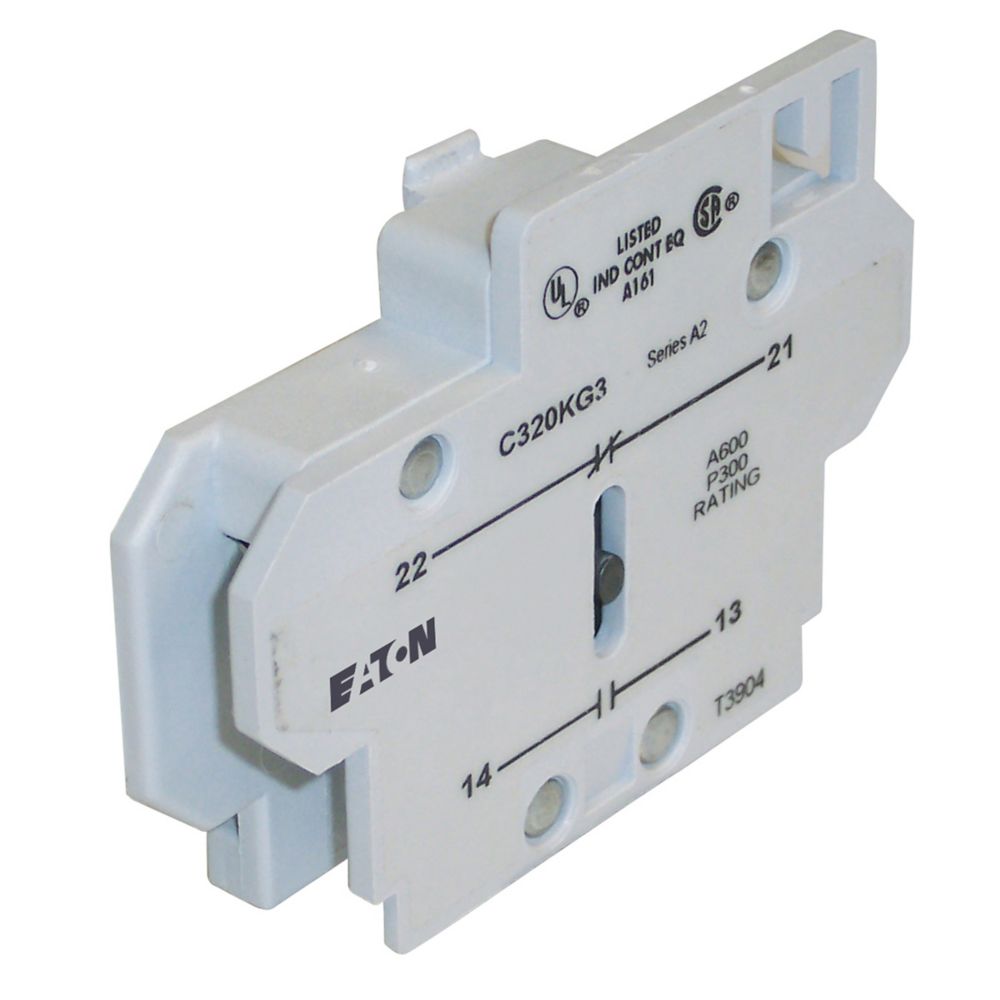

C320KG3 - Eaton Cutler Hammer - Definite Purpose Motor Control Auxiliary Contact
The Eaton C320KG3 is a side-mounted auxiliary contact with a 1 NO and 1 NC configuration, designed for use with Definite Purpose contactors in the 15–75 A range. It is pilot-rated at 10 A, 600 VAC, and uses pressure-plate terminals for secure connections. Compact and reliable at around 0.15 lb, it enhances control functionality in motor control applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton definite purpose motor control auxiliary contact
|
| Catalog Number |
C320KG3
|
| UPC |
782113376370
|
| Product Length/Depth |
2.5 in
|
| Product Height |
2 in
|
| Product Width |
3 in
|
| Product Weight |
0.15 lb
|
| Catalog Notes |
Heavy-Duty Pilot Rated for 10A at 600 Vac, For 15-75A Contactors
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Definite Purpose contactors
|
| Type |
Accessory
|
| Contact configuration |
1 NO, 1 NC
|
| Terminals |
Pressure plate
|
