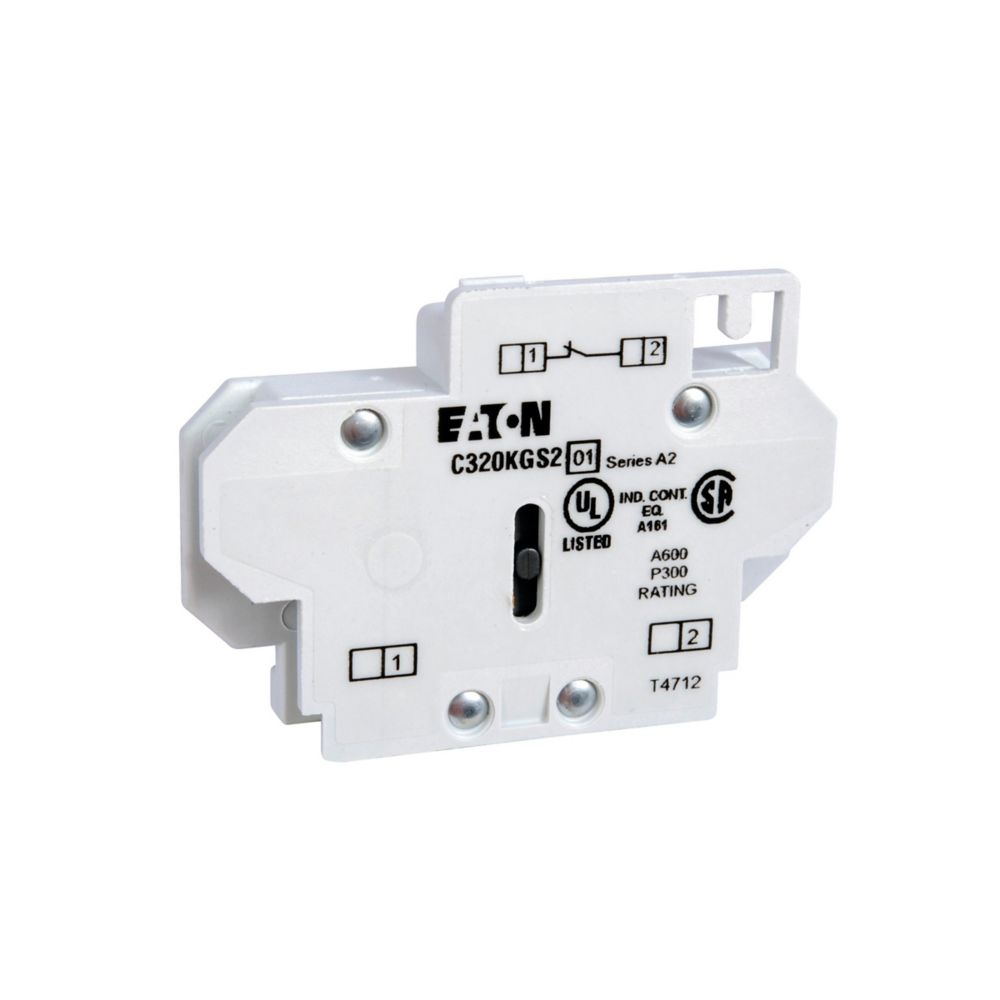

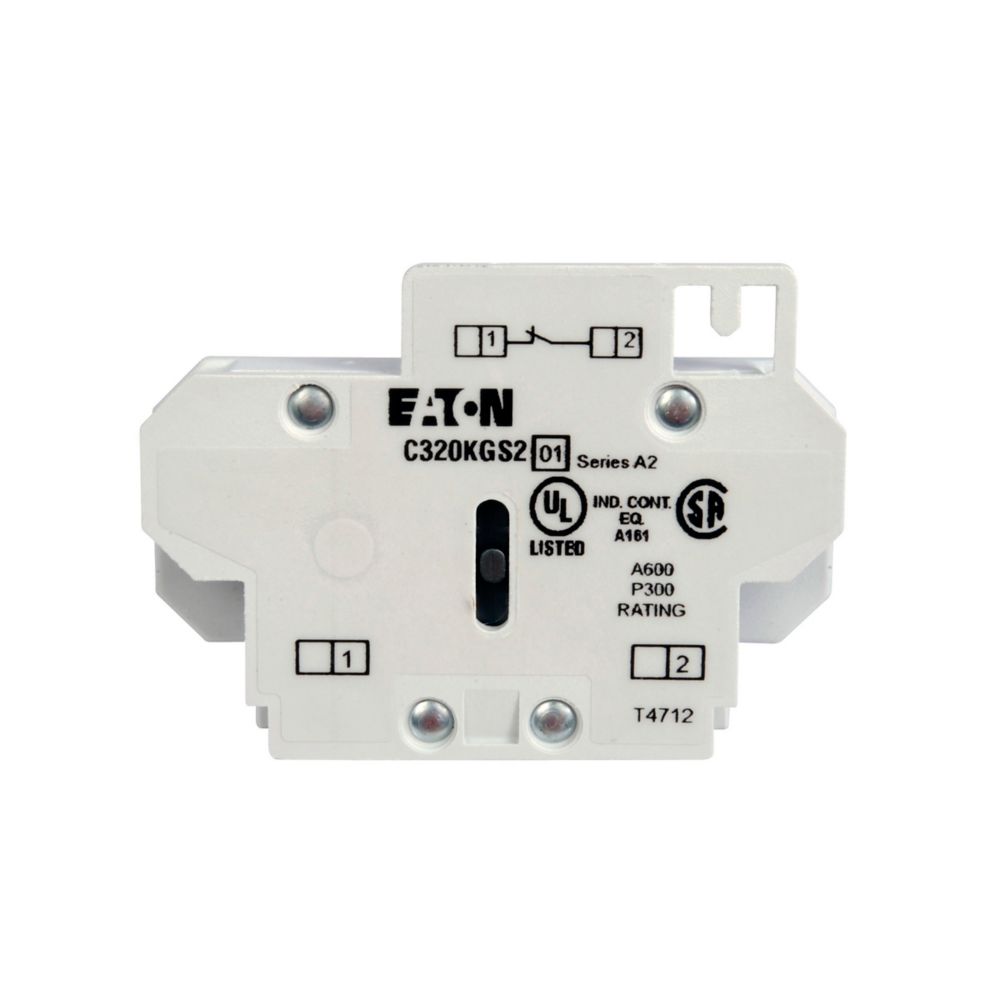

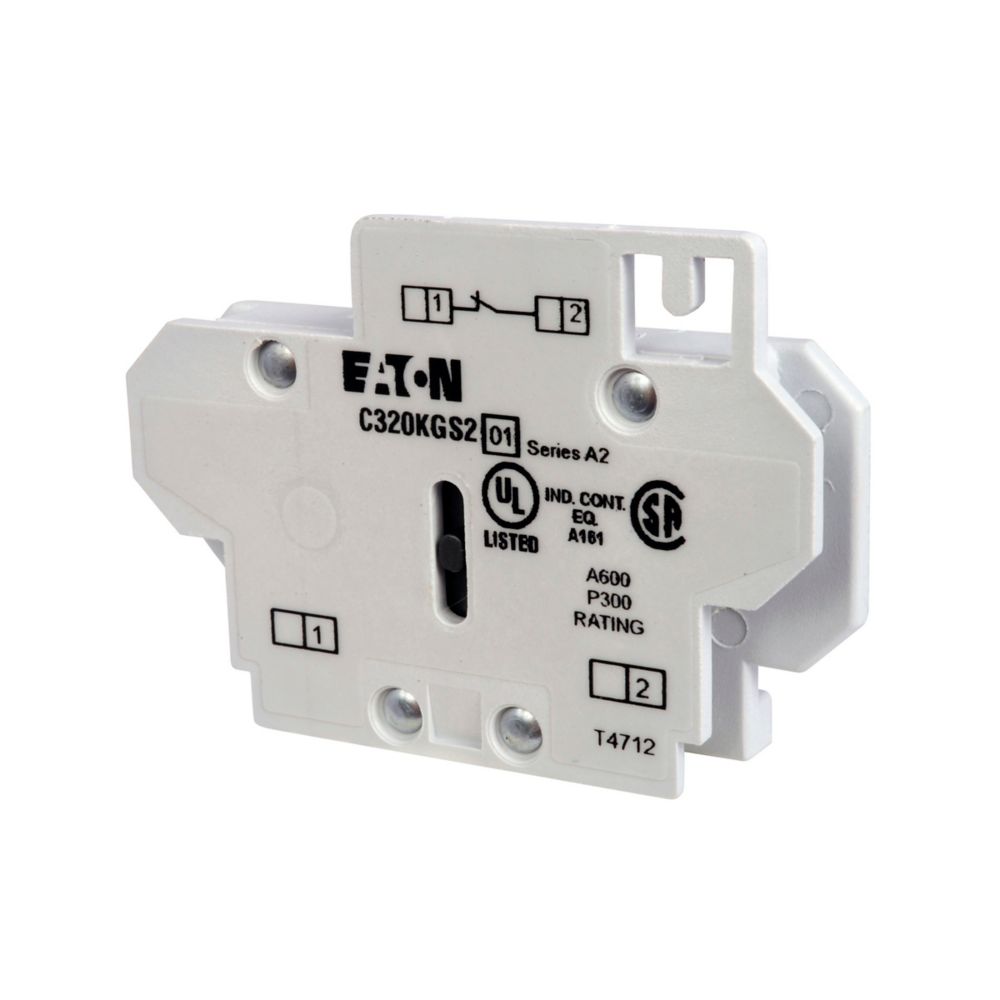

C320KGS2 - Eaton Cutler Hammer - Freedom Nema Auxiliary Contact
The Eaton C320KGS2 is a side-mounted auxiliary contact block designed for use with Eaton Freedom Series contactors and motor starters. It features a single normally closed (1 NC) contact configuration and is rated for up to 10 A and 600 V AC—ideal for adding control functionality on NEMA Size 00 to 2 or IEC Size A–K equipment.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA auxiliary contact
|
| Catalog Number |
C320KGS2
|
| UPC |
782113413495
|
| Product Length/Depth |
4 in
|
| Product Height |
1.1 in
|
| Product Width |
2.5 in
|
| Product Weight |
0.1 lb
|
| Certifications |
cUL Listed
|
| Catalog Notes |
NCI = Normally Closed early opening designed for use in reversing applications. EC = Early Closing. LO = Late Opening.
|
PRODUCT SPECIFICATIONS
| Used with |
Used on Starters and Contactors
|
| Mounting method |
Side
|
| Contact configuration |
1 NC
|
| Series |
Freedom
|
