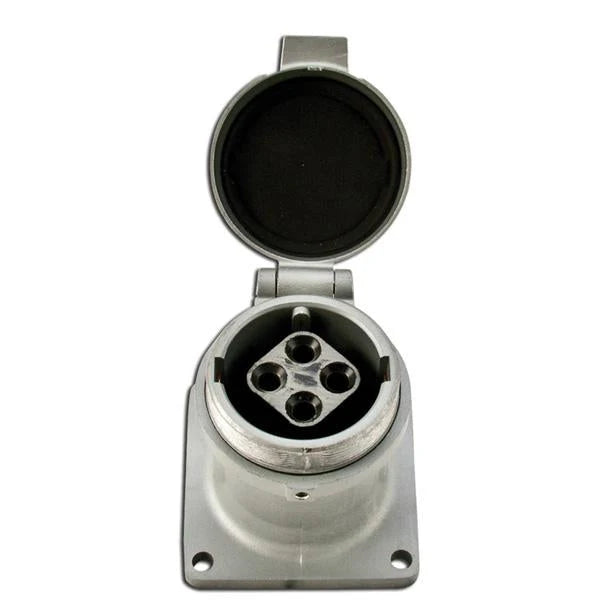

ADR6044 - Appleton - 60A 4-Pole 4-Wire 600V Receptacle
A Powertite® Style 1 pin-and-sleeve receptacle rated at 60 A, 600 VAC (3-phase, 50–400 Hz) and 250 VDC. Constructed from epoxy powder-coated, copper‑free aluminum and equipped with pressure wire terminals, it supports wire sizes #6–#2 AWG (building), #6–#4 AWG (flex), and mounts to 1¼″–1½″ hubs. Rated for −40°C to +107°C service, it features recessed, widely spaced contacts in an arc-snuffing chamber and a spring-loaded door for secure, weather‑proof operation
GENERAL SPECIFICATIONS
- Area Classification
- Listed for Ordinary (Unclassified) Locations; NEMA 3, 3R, 4, 4X
- Amperage
- 30, 60, 100, 150, 200 or 400
- Voltage
- 120/240/480/600 Vac
- Number of Poles
- 2, 3 or 4
- Number of Wires
- 2, 3 or 4
- Hertz
- 50-400 Hz
- Horsepower Emergency Disconnect Ratings
- 3-Phase: 30 Amp, 3HP at 115 Vac, 7.5HP at 230 Vac, 15HP at 480 Vac, 20HP at 600 Vac; 60 Amp, 7.5HP at 115 Vac, 15HP at 230 Vac, 30HP at 480 Vac, 30HP at 600 Vac; 100 Amp, 10HP at 115 Vac, 20HP at 230 Vac, 40HP at 480 Vac, 40HP at 600 Vac; 150 Amp, DO NOT DISCONNECT UNDER LOAD; 200 Amp, 20HP at 115 Vac, 40HP at 230 Vac, 50HP at 480 Vac, 50HP at 600 Vac; 1-Phase: 30 Amp, 2HP at 115 Vac, 3HP at 230 Vac, 10HP at 480 Vac, 10HP at 600 Vac; 60 Amp, 3HP at 115 Vac, 10HP at 230 Vac, 20HP at 480 Vac, 20HP at 600 Vac; 100 Amp, 7.5HP at 115 Vac, 15HP at 230 Vac, 30HP at 480 Vac, 30HP at 600 Vac; 200 Amp, 15HP at 115 Vac, 30HP at 230 Vac, 40HP at 480 Vac, 40HP at 600 Vac
- Plug Cable Diameter
- 30 Amp: 0.500 to 1.125#8221;; 60 Amp: 0.500 to 1.375#8221;; 100 Amp: 0.875 to 1.906#8221;; 150 Amp: 0.875 to 2.187#8221;; 200 Amp: 0.875 to 2.500#8221;; 400 Amp: 1.875 to 3.500#8221;
- Mounting Box Entries
- Dead-End or Feed-Thru
- Materials and Finishes
- Plug, receptacle, connector and mounting box housings: copperfree (4/10 of 1% max.) aluminum with epoxy powder coat finish. Fiberglass reinforced polyester insulating blocks with natural finish
