Description

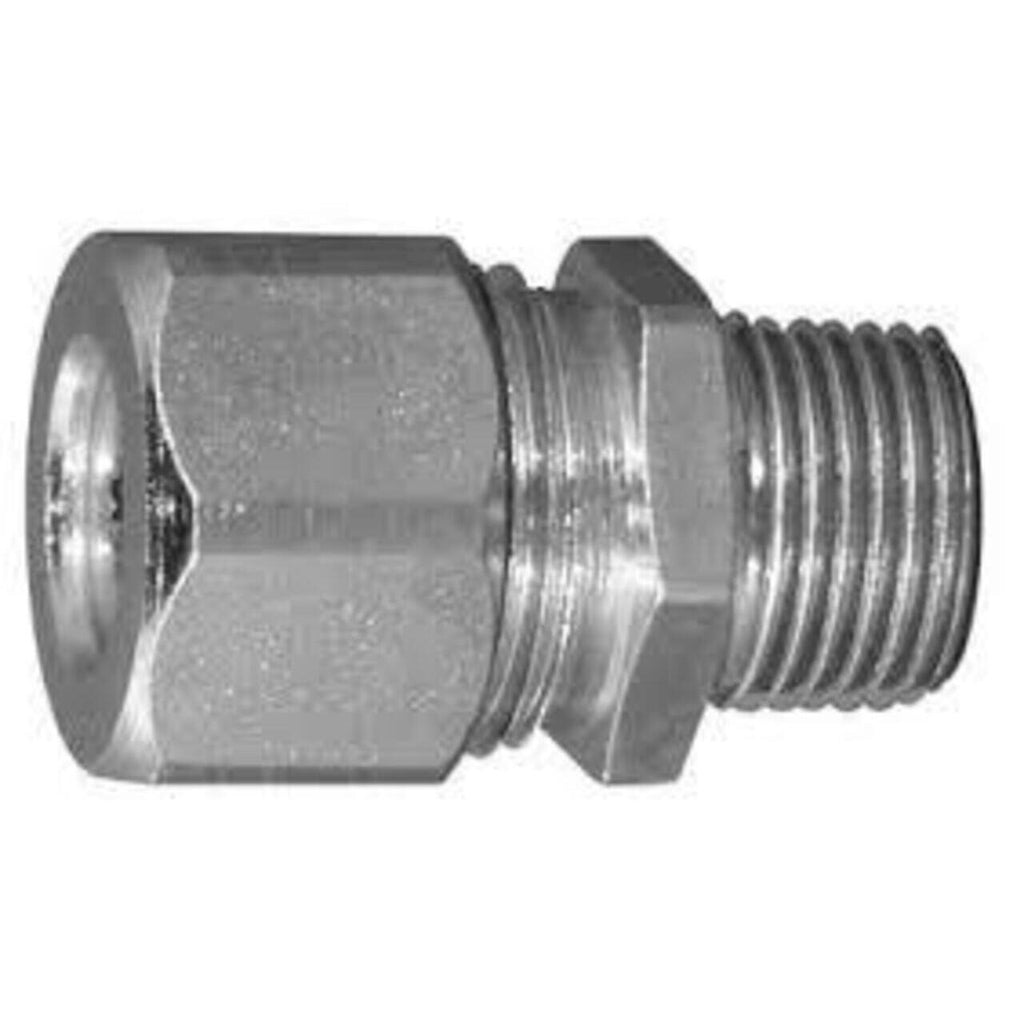

CG2575 - Appleton - 3/4" Steel Liquidtight Strain Relief Cord and Cable Connector
This is the steel version of the CG2575, offering the same cable range and sealing performance, but with added strength and corrosion resistance thanks to its steel body and cap.
GENERAL SPECIFICATIONS
-
-
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90° body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90° body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
-
PRODUCT DATASHEET
